Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Refresh Rate: | 3840 Hz |
|---|---|---|---|
| Weight: | 28 Kg/panel | Control System: | Novastar |
| Panel Size: | 571 X 1897mm | Thickness: | 33mm |
| High Light: | mirror led display,led poster display |
||
Digital Indoor LED Poster Billboard 3840Hz Refresh Rate Slim Lightweight Variable Install Easy For Mobile Advertising
Digital Poster Product Description:
1. Ultra slim and lightweight. There only 28kg for whole one set. Even you can carry it with bag.
2. Modules for back access. It's easy to maintance and avoid scratch from front.

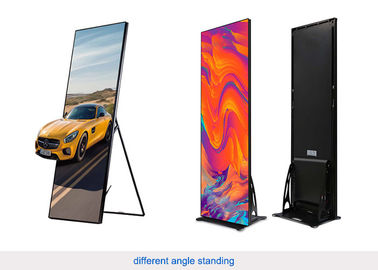

3. Mutiple installation.You can add standing and wheels to make the poster be easy move. Or hanging on ceilling, Mounted in wall.
4. View angle adjustable. You can adjust the angle by changing the bracket on poster back.
5. Various signal operations. You can control the sign by Network,Wifi even a mobile phone.

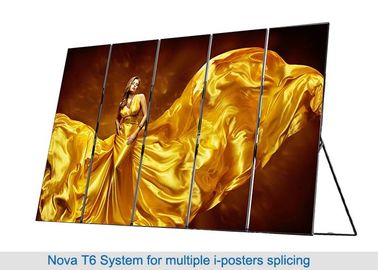

6. Play alone or multi-screen cascade. There will be golden ratio once you use 6sets of poster together.
7. High refresh rate ≥2880Hz, long service time. Its life span is more than 100000hrs. You can see vivid color and use it for long time.
Digital Poster Product Parameter:
| Pixel Pitch | 1.9mm | 2.5mm | 2.5mm Pro | 3.0mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 |
| Pixel Density | 279,936pixels/m² | 169,344pixels/m² | 157,464pixels/m² | 110,889pixels/m² |
| Module Dimention(mm) | 160 × 160 | 160 × 160 | 280 × 210 | 192 × 192 |
| Whole Set Dimention(mm) | 640 × 1920 × 35 | 640 × 1920 × 35 | 571× 1897 × 33 | 574 × 1928 × 35 |
| NO.of Modules Per Panel | 4 × 12 | 2 × 9 | 2 × 9 | 2 × 9 |
| Resolution of Module | 84 x 84 | 64× 64 | 108× 81 | 64 × 64 |
| Resolution of Whole Set | 336 × 1,010 | 256 × 768 | 216 × 729 | 192× 640 |
| Panel Material | Aluminum | |||
| Cabinet Weight | 32 kg | 32 kg | 28 kg | 32 kg |
| Gray Level | 16 bit(281 trillion colors) | |||
| Contrast Ratio | 4000 : 1 | |||
| Average Power Consumption | 250W/Set | 200W/Set | 100 W/ Set | 200 W/ Set |
| Max Power Consumption | 750W/Set | 600W/Set | 390 W / Set | 600 W / Set |
| Driving Method | 1/32 Scan | 1/32 Scan | 1/27 Scan | 1/32 Scan |
| Brightness | >1,000 nits | >1,000 nits | >1,000/3500 nits | >1,000 nits |
| Refresh Rate | ≥2,880 Hz | ≥2,880 Hz | ≥3,840 Hz | ≥2,880 Hz |
| Viewing Angle(V/H) | 160°/ 140° | |||
| Frame Rate | 60 fps | |||
| Operating Temp/Humidity | -10℃~60℃ / 10%~60% | |||
| Storage Temp/Humidity | -30℃~60℃ / 10%~60% | |||
| IP Rating(Front/Rear) | IP40 | |||
| Expected Lifetime | 100,000 Hrs | |||
| Bezel | 6mm | 6mm | 4mm | 6mm |
LED Poster Product Wide Applications:
FAQ:
1. I would like to ask you if it's possible to have my logo on the product.
A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.
2. How to install it after I received it?
We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.
3. What is drive method, driving IC and power supply?
Drive method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
