Product Details:
Payment & Shipping Terms:
|
| Cabinet Size: | 1000 X 1000mm | Cabinet Material: | Steel/Aluminum |
|---|---|---|---|
| Grey Level: | 16bit | Brightness: | 6500 Nits |
| LED Type: | Kinglight | Lifespan: | 100,000 Hrs |
| Servicing: | Front/ Rear | Application: | Standing Billboard/Airport |
| High Light: | roadside led display,street led screen |
||

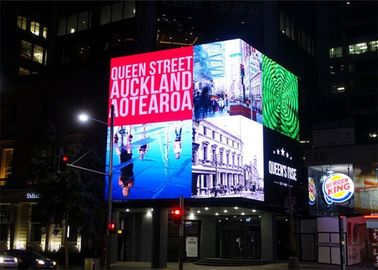

High Grey Level Outdoor Fixed LED Display IP65 Waterproof High Brightness
Features:
1. Strong and high bright LED for outdoor use.
2. Suitable brightness adjustable for outdoor day and night by light sensor.
3. IP65 rating to ensure normal working.
4. Special multifunctional module buckle designed for adjusting gaps between module and cabinet to ensure the smoothness and alignment.
5. Intelligent control and player system by cloud technology
6. Time management and real time monitoring.
Parameters:
| Pixel Pitch | 4.81mm | 6.67mm | 8mm |
| Pixel Configuration | SMD2727 | SMD2727 | SMD3535 |
| Pixel Density | 43,264pixels/m² | 22,500pixels/m² | 15,625pixels/m² |
| Moduel Demensions(mm) | 250 x 250 | 320 x 320 | 256 x 256 |
| Panel Demension(mm) | 1000x1000x150 | 1280x960x150 | 1280x960x150 |
| Resolution of Module | 52 x 52 | 48 x 48 | 42x42 / 42x84 |
| Grey Level | 16 bits(281 trillion colors) | ||
| Single Cabinet Weight | 65/45kg | ||
| Contrast Ratio | 2000 :1 | ||
| Brightness | 6500 nits | ||
| Refresh Rate | 1920Hz | ||
| Average Power Consumption | 360 W/panel | ||
| Max Power Consumption | 900 W/panel | ||
| Viewing angle(H/V) | 140°/160° | ||
| Servicing | Front / Rear | ||
| Max Hanging | 20/10 | ||
| Expected Lifetime | 100,000 hours | ||
| IP Rating (Front/Rear) | IP 65/IP 54 | ||
| Operating Temp/Humidity | -20℃~50℃ / 10%~90% | ||
| Storage Temp/Humidity | -20℃~50℃ / 10%~90% | ||
| Certification | CCC, CE, ETL, FCC | ||
Solutions:
FAQ:
1. How shall I make the payment?
We accept T/T,T/C and Western Union,30% deposite to start production and 70% balance before delivery.
2. How can I choose a proper product?
Then we need to clarify some questions firstly:
A: Where will you install this display?Outdoor or Indoor?
B: How do you plan to control it?By USB or Computer?
C: What context do you want to display?
3. How do you ensure the quality?
A: We have been in LED display manufacture for more than 10 years and own our professtional team.
B: From LED to module,to cabinet,to screen and anything like power supply and control system,we have a QC team to control at every step.
C: Everytime before delivery,there will be aging testing for several days to ensure normal working.You are also welcomed to check the products in our factory.
D: We offer 2~5 years warranty and 18/7 online engineering help.
About our company:
BAKO VISION started the business journey from 2005 in shenzhen and now become a professional LED display manufacturer.We were witnessed by customers from more than 100 countries and never stop our step to develope oversea market.
Now our company is equipped with eighteen automatic SMT lines and three DIP lines with high speed machines of Panasonic and Samsung,some of them for OEM customers and some for standard screen or large screen.We also owns experienced R & D team and comprehensive management.All of these are the factors enable us to provide advanced quality and service for our customers.
