| Pixel Pitch: | 3mm | Module Size: | 192*192 |
|---|---|---|---|
| Panel Size: | 960*960 | Module Resolution: | 64*64 |
| Panel Resolution: | 320*320 | Panel Material: | Steel/Aluminum |
| Weight: | 65/45kg/m2 | Brightness: | >6500nits |
| Refresh Rate: | >1920Hz | IP Rating: | IP65 |
| Servicing: | Rear | Lifetime: | 100,000 Hrs |
| High Light: | IP65 Outdoor Fixed LED Display,6500nits Outdoor Fixed LED Display,IP65 LED Billboard Display |
||
P3mm IP65 Outdoor Fixed LED Display Durable Stable Back Service
High Brightness Outdoor LED Display, Full Color Video Wall Screen, Advertising LED Display
Quick Details:
1. SMD led encapsulation confirm wide view distance and good uniformity
2. High brightness, good waterproof IP65, anti-corrosion, anti-rust, long life span>100000hours
3.High pixel density, high resolution and high definition, perfect display vision
4. Lower power consumption, good heat dissipation, low noise created.
5. Cabinet with locks, connectors, easy and quick to assemble without tools in short time
6. Widely used for commercial display, advertising, stage background, mobile display. traffic display,sports led display etc.
Functions :
1. High refresh rate: With NOVA STAR control system, no scanning line when photographed
2. High gray level: 256 RGB each ,display 16.7M colors ,vivid and perfect video effect
3.High resolution: The most apparent features of the new generation of LED display
4.Good color uniformity: With brand Lamp Nationstar and high refresh MBI5124 IC.
5. High Brightness: >6500cd/m2 ,brightness automatically adjusted
6. High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time
7. Long life span: over100,000hours, warranty from 2 to 5 years.
8. You need = We design : Provide Personal- Customized led offer
Outdoor Fixed Installation LED Display Parameters:
|
|
BOF-B-3 |
BOF-B-4 |
BOF-B-5 |
BOF-B-6 |
BOF-B-8 |
|
Physical Pitch |
3mm |
4 mm |
5 mm |
6.67 mm |
8 mm |
|
Pixel Configuration |
SMD 1921 |
SMD 1818 |
SMD 2727 |
SMD 2727 |
SMD 3535 |
|
Pixel Density |
97,656 pixels/m² |
62,500 pixels/m² |
40,000 pixels/m² |
22,376 pixels/m² |
15,625 pixels/m² |
|
Module Dimensions (W × H) (mm) |
192 × 192 |
320 × 160 |
320 × 160 |
320 × 160 |
320 × 160 |
|
Panel Dimensions (mm) |
960 × 960 × 150 |
960 × 960 × 150 |
960 × 960 × 150 |
960 × 960 × 150 |
960 × 960 × 150 |
|
Physical Resolution of Module (W × H) |
60 × 60 |
80 × 40 |
64 × 32 |
48 × 24 |
40 × 20 |
|
Physical Resolution of Panel (W × H) |
300 × 300 |
240 × 240 |
192 × 192 |
144 × 144 |
120 × 120 |
|
Average Power Consumption |
360 W/m² |
360 W/m² |
36 W/m² |
360 W/m² |
360 W/m² |
|
Max Power Consumption |
900 W/ m² |
900 W/ m² |
900 W/ m² |
900 W/ m² |
900 W/ m² |
|
Average Power After Energy Saving |
- |
- |
- |
90 W/ m² |
90 W/ m² |
|
Max Power After Energy Saving |
- |
- |
- |
230 W/ m² |
230 W/ m² |
|
Brightness |
≥6500 nits |
≥6500 nits |
≥6500 nits |
≥6500 nits |
≥6500 nits |
|
Refresh Rate |
>1,920 Hz |
>1,920 Hz |
>1,920 Hz |
>1,920 Hz |
>1,920 Hz |
|
Horizontal Viewing Angle |
160° |
160° |
160° |
160° |
160° |
|
Vertical Viewing angle |
140° |
140° |
140° |
140° |
140° |
|
Expected Lifetime |
100, 000 Hrs |
100, 000 Hrs |
100, 000 Hrs |
100, 000 Hrs |
|

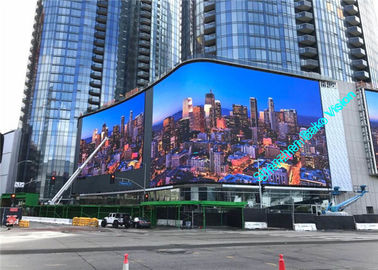

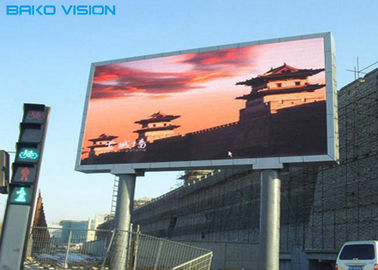

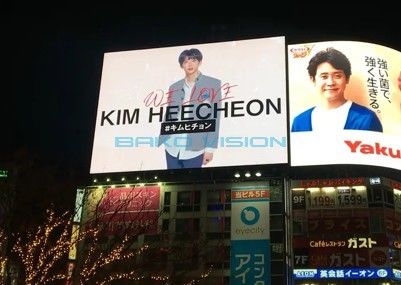

Outdoor Fixed Installation LED Display Cases:
Outdoor Fixed Installation LED Display Features:
1)This cabinet of SMD outdoor led display can serve as large advertising led wall with great visual effect.
2)It's suitable for stage, bank, promotion, exhibition, station, KTV, stadium, airport and all outdoor places.
3)Ultra-thin cabinet and modular design can save installation and maintenance cost and also enhance work efficiency.
4)Adopted MBI constant current driver which can make refresh rate up to 1920Hz load with single receiving card in one cabinet. High quality product ensure stable and clear image output.
5)Special waterproof design protect your product out of water, the high quality is worthy of trust.
6)The outdoor SMD led display features NOVA control system which ensures great quality output, high resolution display, fast loading time and high refresh rate.
Let me know if you have any interest or question about this product.
