Product Details:
Payment & Shipping Terms:
|
| Cabinet Material: | Steel/Aluminum | Weight(m²）: | 65/45 |
|---|---|---|---|
| Colors: | 281 Trillion | Warranty: | 2 Years |
| Average Power Consumption: | 360W/m² | Contrast Ratio: | 4000:1 |
| Servicing: | Front | Life Span: | 100,000hours |
| High Light: | roadside led display,street led screen |
||
Features:
1. Nationstar LEDs, long lifetime with high brightness 6500nits, visible from every direction even face to sunshine directly.
2. SMD technology, LEDs ensure a large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3. Cabinet design lightweight, side handle for easy carrying and assemble job.
4. IP65 waterproof and dust resistance, durable for any weather conditions.
5. Meanwell brand power supply, saving energy and high efficiency.
6. Digital process: 16bits, contrast ratio 2,000:1, vivid color.
7. Front access makes easy maintenance.
8. There can improve the resolution by changing new module with a smaller pixel, no need to purchase a new screen, this can save lots of costs.
4.81mm 43,264/m² >6500nit IP65
Pitch Density Brightness Weather Rating
281trillion 45kg/m² m 16bit 360/900w
Colors Weight Gray Scale Power Avg/Max
| BOF-F-4 | BOF-F-5 | BOF-F-6 | BOF-F-8 | BOF-F-10 | |
| Physical Pitch | 4 mm | 5.95 mm | 6.67 mm | 8 mm | 8 mm |
| Pixel Configuration | SMD 2727 | SMD 2727 | SMD 2727 | SMD 3535 | SMD 3535 |
| Pixel Density | 43,264 pixels/m² | 28,246 pixels/m² | 22,500 pixels/m² | 15,625 pixels/m² | 10,000 pixels/m² |
| Module Dimensions (W × H) (mm) | 250 × 250 | 250 × 250 | 320 × 320 | 320 × 160 | 320 × 160 |
| Panel Dimensions (mm) | 1000 × 1000 × 150 | 500 × 1000 × 150 | 1280 × 960 × 150 | 960 × 960 × 150 | 1280 × 960 × 150 |
| NO .of Modules Per Panel (W × H) | 4 × 4 | 2 × 4 | 4 × 3 | 3 × 6 | 4 × 6 |
| Physical Resolution of Module (W × H) | 52 × 52 | 52 × 52 | 48 × 48 | 32 × 32 | 32 × 32 |
| Physical Resolution of Panel (W × H) | 208 × 208 | 84 × 168 | 192 × 144 | 120 × 120 | 96 × 96 |
| Panel Material | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum |
| Weight(m²) | 65/45 | 65/45 | 65/45 | 65/45 | 65/45 |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 360 W/m² | 36 W/m² | 360 W/m² | 360 W/m² | 360 W/m² |
| Max Power Consumption | 900 W/ m² | 900 W/ m² | 900 W/ m² | 900 W/ m² | 900 W/ m² |
| Average Power After Energy Saving | - | - | 90 W/ m² | 90 W/ m² | 90 W/ m² |
| Max Power After Energy Saving | - | - | 230 W/ m² | 230 W/ m² | 230 W/ m² |
| Refresh Rate | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz |
| Brightness | ≥6500 nits | ≥6500 nits | ≥6500 nits | ≥6500 nits | ≥6500 nits |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Horizontal Viewing angle | 140° | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| Servicing | Rear | Rear | Rear | Rear | Rear |
| IP Rating | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% |
| Storage Temp/Humidity | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% |
| Scan Method | 1/13 Scan | 1/7 Scan | 1/10 Scan | 1/4 Scan | 1/2 Scan |
Multifunctional Module Buckle
● Special multifunctional module buckle designed for adjusting gaps between module and cabinet to ensure the smoothness and alignment.

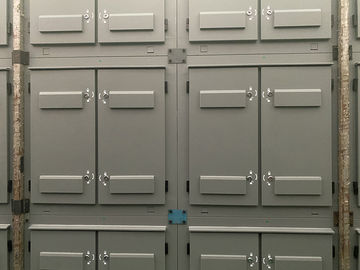

Fast Installation and Easy Maintenance
● Fast lock system design guarantees a quick and easy installation
● Mechanical front access
Outdoor Rated
●Brightness adjustable for day and night
● IP65 Rating,Durable LED for 7/24 work mode
● Cutting edge"cold display" technology,60% power lower than normal,50% tempature less than normal
Shenzhen BAKO VISION Technology Co., Ltd, Stock Code: 871745, started in Shenzhen in 2005, a professional manufacturer of technologically advanced LED displays, is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
Why choose us?
1. Well-experienced: Bako Vision started in Shenzhen in 2005, fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens. And every sales team leader has been working in LED display industry over 14 years.
2. Quality Assurance: Equipped with multiple SMT lines and DIP lines and high-speed machines, imported from Panasonic and Samsung. Our quality management is complying with 7S and ISO9001-2000/ISO14001 product certification systems. At the same time, our products have obtained CCC, CE, ETL, RoHS, FCC, UL.
3. Capacity status: The company's monthly production capacity has reached 800 KK, take P3.91 as an example, it can produce 15,000 square meters per month.
4. After-sales support: The company has set up an after-sales service department. There are many professional technicians engaged in the engineering installation, on-site debugging and training guidance of LED display products. We participate in foreign exhibitions many times every year and we can visit you.
Q&A
Q1. Could I get a sample order of led display?
A: Yes, welcome to your sample order to check the quality.
Q2: Could we print our own logo on led display products?
A: Of course. Please let us know all the details soon before production.
Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.
Q4: Whether to provide technical training (installation training and use training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can rest assured to buy.
A To Z Process
PRE-PRODUCING:
1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design
IN PRODUCING:
1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients
AFTER SERVICE:
1. 2 years warrenty
2. 7 days a week, 24 hours a day for on-line service for any technical support for any customers
3. Free training for customers in factory
4. Local Partner Installation Service
