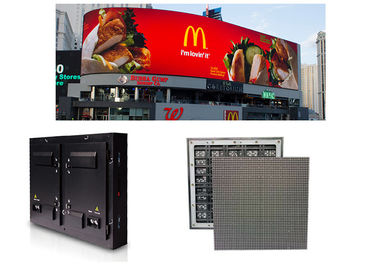

Outdoor Led Digital Display Energy Saving P5 P6 P8 P10 Signage Billboard
Product Details
| Product Name: | Outdoor Led Digital Display | Pixel Pitch: | P3, P4, P5, P6.67, P8, P10, P16 |
|---|---|---|---|
| Cabinet Size: | Customized | Pannel Material: | Steel/Magnesium Alloy/Aluminum |
| Servicing: | Front/Rear | IP Rating(Front/Rear): | IP65/IP54 |
| Brightness: | ＞5500nits | Refresh Rate: | ＞1920Hz |
| Contrast Ratio: | 2000:1 |
Product Description
Outdoor Led Digital Display Energy Saving P5 P6 P8 P10 Signage Billboard
BOF Series (BOF-B.pdf)
Outdoor LED Billboard
| Specifications | |
|---|---|
| Pixel Pitch(mm): | 3 / 4 / 5 / 6.67 / 8 / 10 / 16 |
| Brightness(nits): | Up to 7000 |
| Refresh Rate(Hz): | >1920 |
| Key Point: | Most common outdoor LED digital display |
Key Features
- Customized Cabinet Size and Design.
- Steel/ Aluminum/Magnesium alloy Cabinet.
- Back Service.
- SMD 3in1 Technology.
- Waterproof with IP65.
- Wide View Angle.
Outdoor Fixed Screen Parameters
| BOF-4 | BOF-5 | BOF-6 | BOF-8 | BOF-10 | |
| Physical Pitch | 4mm | 5mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Dimensions | 320×160mm | ||||
| Panel Dimensions(W × H) | Customized | ||||
| Physical Resolution of Module (WxH) | 80x40 | 64x32 | 48×24 | 40x20 | 32×16 |
| Panel Material | Steel/Aluminum/Magnesium alloy | ||||
| Grayscale | 16bit | ||||
| Colors | 281trillion | ||||
| Average Power Consumption | 360 W/m2 | ||||
| Max. Power Consumption | 900 W/m2 | ||||
| Refresh Rate | ＞1920Hz | ||||
| Brightness | > 5000 nits | > 5500 nits | > 6000 nits | > 6200 nits | > 6500 nits |
| Expected Lifetime | 100,000 Hrs | ||||
| Maintenance Way | Rear | ||||
| IP Rating(Front/Rear) | IP65/IP54 | ||||
6 Main points to choosing the right Outdoor LED Digital Display
1. Cabinet - the most important part, it must be designed as strictly waterproof, leakproof, drainage measures design.
2. Lightning protection device - this device should be installed on the building with the outdoor LED digital display, ensure the cabinets are grounded well, and the grounding resistance is less than 3 ohms. So, the power source can be discharged in time by a large current.
3. Cooling system equipment - If the temperature and weather in your country are always very hot or cold, then the air conditional cooling equipment must be installed for the outdoor led digital display, you need to ensure the internal temperature is between -10 degrees ~ and 40 degrees.
4. Brightness - The brightness of the outdoor LED digital display is always very important to suit your local environment, you need to make sure the height of the installation place, view distance from the people, natural sun brightness, and installation environment when you are discussing the solutions with your supplier.
5. Maintenance way - Front access/Rear access, it's according to that do you have the space to repair the outdoor led digital display from the rear or front of the installation.
6. Control system - Synchronous/Asynchronous.
About Bako Vision
- Over 10 Years of Experience in Outdoor LED Digital Display Manufacturing in China.
- 3 Years of High-Quality Warranty Provided.
- Global Quality Standard with CE, EMC, ROHS, ETL, UL, FCC, ISO9001 Certificated.
- Overseas Customer in 120+ Countries in The World.
- Full Capable to Provide the Tailor Work of OEM, ODM.
FAQ:
Q1. What is pixel pitch?
A1: The center distance between two adjacent pixels, the smaller the spacing, the shorter the visible distance. The industry is often referred to as P to indicate the point spacing.
Q2. What is pixel density?
A2: Also known as dot matrix density, it usually refers to the number of pixels per square meter of the display.
Q3. What is LED Cabinet?
A3: A small unit consisting of several display pixels that are structurally independent and can form an LED display. Typical are 8*8, 8*7, etc.
Q4. What is an LED module?
A4: It has a basic unit with a circuit and installation structure, display function, and display function by the simple assembly.
Q5. What is an LED display?
A5: A display screen composed of an array of LED devices by a certain control method.
Q6: What is the refresh rate?
A6: The number of times the display screen is repeatedly displayed by the display in unit time.
