Product Details:
Payment & Shipping Terms:
|
| Pixel Configuration: | SMD2121 | Control System: | Novastar |
|---|---|---|---|
| Refresh Rate: | ＞1920Hz | Contrast Ratio: | 5000:1 |
| Panel Dimensions: | 500 X 500 X 80mm / 500 X 1000 X 80mm | Weight: | 8 / 13kg/panel |
| High Light: | indoor full color led display,indoor led billboard |
||
P2.97 P3.91 P4.81 Indoor Fanless Easy Installation Curved Rental Led Screen Display For Stage and Exhibition
Rental Screen Quick Detail:
1. High brightness: more than 1200cd/㎡
2. Lightweight :< 13KG/panel. Ultra thin: 80mm thickness
3. CE,CCC,RoHS,UL,ISO9001,BIS
4. Long lifespan> 100,000 hours
5. Cabinet connection angle can be adjusted by -15 degree to +15 degree
Led Display Description:
1. Light Weigh & Ultra Thin
Made by high quality aluminum material, one cabinet only weights 12.5 KG. It makes installation job and
delivery more comfortable and convenient. 80 mm thickness saves not only space for delivery but also
installation.
2. Angle Adjustment
Cabinet connection angle can be adjusted by -15 degree to +15 degree. This allows arc shape available.
3. Fast Lock System & No Fan Design
Fast lock system makes installation job much easier: an average worker can finish 60 panels within one
hour. Natural cool system design and good heat dissipation.
4. Rental & Fixed Installation Use
With above features, it is very suitable for advertising and rental usage.
Indoor Screen Specification:
| Physical Pitch | 2.97mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 112,896 pixels/㎡ | 65,536 pixels/㎡ | 43,264 pixels/㎡ |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 / 500 x 1000 x 80 | 500 x 500 x 80 / 500 x 1000 x 80 | 500 x 500 x 80 |
| NO. of Modules Per Panel (W x H) | 2 x 2 / 2 x 4 | 2 x 2 / 2 x 4 | 2 x 2 / 2 x 4 |
| Physical Resolution of Module (W x H) | 84 x 84 | 64 x 64 | 52 x 52 |
| Physical Resolution of Panel (W x H) | 168 x 168 / 168 x 336 | 128 x 128 / 128 x 256 | 104 x 104 / 104 x 208 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight | 8 / 14 kg/panel | 8 / 14 kg/panel | 8 / 14 kg/panel |
| Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 400W /Sqm | 325W /Sqm | 310W /Sqm |
| Max Power Consumption | 800W /Sqm | 780W /Sqm | 750W /Sqm |
| Operating Temp/Humidity | -10℃ - 60℃ / 10℃ - 60℃ | -10℃ - 60℃ / 10℃ - 60℃ | -10℃ - 60℃ / 10℃ - 60℃ |
| Storage Temp/Humidity | -30℃ - 60℃ / 10℃ - 60℃ | -30℃ - 60℃ / 10℃ - 60℃ | -30℃ - 60℃ / 10℃ - 60℃ |
| Refresh Rate | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz |
| Brightness | ≥1,200nits | ≥1,200nits | ≥1,200nits |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° |
| IP Rating (Front/Rear) | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 |
| Scan Method | 1/28 Scan | 1/16 Scan | 1/13 Scan |

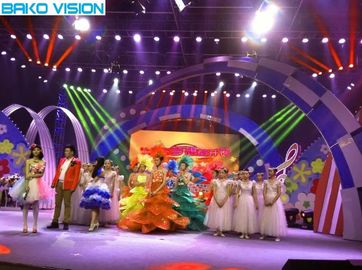

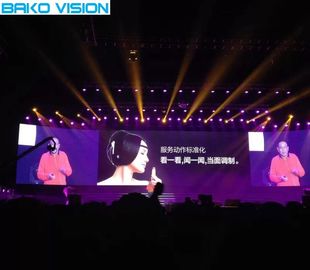

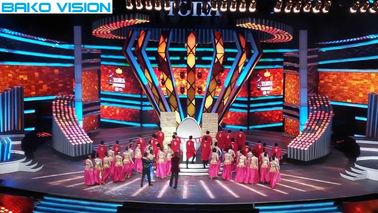

Indoor LED Display Case:
FAQ
1. How can I place an order?
Please provide all the details of your requirements for our reference So we can send you the offer at the first time.Feel free to contact with me by What's APP/email /phone to avoid any delay.
2. What kind of display you provide?
We have indoor/outdoor/LED stage/Sport display/ Irregular LED display/monitor screen for you choose.
3. Are you manufacturer of led display.If yes, in which city?
Yes, We already have more than 14 years experience for LED display as a LED manufacturer located in Shenzhen
4. How long can I get the goods?
Our product leadtime is about 10-25 working days.When you confirm the order, we can start production at once receiving your deposit(30% TT in advance). we will update the production details in time.we will notice you when we can delivery the goods to you after we get full payment.
5. May I know the package details?
For fixed installation, we use wooden case, usually 2 or 4 cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
6. What is the payment method?
We support the payment methods as TT.
7. What's the pixel pitch for Indoor LED Display Screen?
Indoor (P2.6mm/P2.97mm/P3.91/P4.81mm) led display screen
8. Can it play HD video?
Yes, it can realize HD video function with Linsn/nova controlling system
9. What's the controlling system?
Our standard controlling system for this model is Linsn/ Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc
10. What is your terms of delivery?
We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you.
