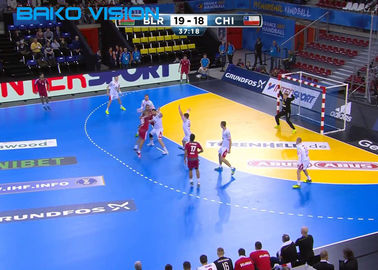

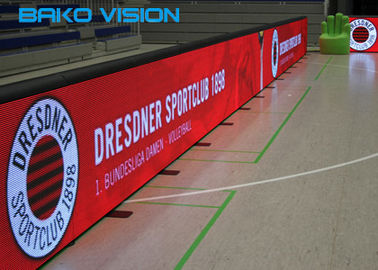

Multi Functional Sports Perimeter LED Display Outdoor P10mm Interact With Crowds
Product Details
| Pixel Pitch: | 10.66mm | Driver IC: | MBI5153/5124 |
|---|---|---|---|
| Brightness: | >5000nits | Cabinet Size: | 1024x768mm |
| Led Type: | SMD3535 | Pixel Density: | 10,000pixels/sqm |
| Cabinet Material: | Die-casting Aluminum | IP Rate: | IP65/IP54 |
| Application: | Outdoor Stadium | Warranty: | 2-5 Years |
| Highlight |
stadium perimeter led display,stage background led screen |
||
Product Description

BSP Series
Robust and Shockproof
● Protective foam padding to maximise safety.

● Installation of protective pillow top,more safe

● Support arm to adjust the tilt

Unsurpassed Color Uniformity
●High Refresh Rate for Live Camera

Control System and Accessories


TECHNICAL SPECIFICATIONS
8mm 15,625/m² >6500nit IP65
Pitch Density Brightness Weather Rating
281trillion 60kg/m² m 16bit 360/900w
Colors Weight Gray Scale Power Avg/Max
| BSP-8 | BSP-10 | BDF-16 | |
| Physical Pitch | 8mm | 10mm | 16mm |
| Pixel Configuration | SMD3535 | SMD3535 | SMD3535 |
| Pixel Density | 15625 pixels/m² | 10000 pixels/m² | 3906 pixels/m² |
| Module Dimensions (W× H) (mm) | 256X256 | 320X320 | 256X128 |
| Panel Dimensions (mm) | 1280X768X187 | 1280X960X187 | 1280X896X187 |
| NO.of Modules Per Panel (W × H) | 5X3 | 4X3 | 5X7 |
| Physical Resolution of Module ( W× H) | 32x32 | 32X32 | 32X8 |
| Physical Resolution of Panel ( W× H) | 160X96 | 128X96 | 160X56 |
| Weight (m²) | 70/50 | 70/50 | 70/50 |
| Panel Material | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum |
| Gray Scale | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2000:1 | 2000:1 | 2000:1 |
| Average Power Consumption | 360W/m² | 360W/m² | 360W/m² |
| Max Power Consumption | 900W/m² | 900W/m² | 900W/m² |
| Refresh Rate | >1920 Hz | >1920 Hz | >1920 Hz |
| Brightness | >6500 nits | >6500 nits | >6500 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 |
| Operating Temperature | -20~50℃/10~90℃ | -20~50℃/10~90℃ | -20~50℃/10~90℃ |
| Storage Temperature | -20~50℃/10~90℃ | -20~50℃/10~90℃ | -20~50℃/10~90℃ |
| Scan Method | 1/4 Scan | 1/2 Scan | Static Scan |
Cases

After-sales Service
We offer 2 year warranty for our different led display screen series, 100,000 hours life span for the led lamps, and lifetime technology support with 7/24 phone answering service if you have any problem with our led screen.

Packaging and Shipping

About Us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
