Full Color Indoor LED Display Spinning Frame Soft Module For Airport / Trade Show
Product Details
| Cabinet Material: | Die-casting Aluminum | Brightness: | Over 1200nits |
|---|---|---|---|
| Colors: | 281 Trillion | Warranty: | 2 Years |
| Panel Dimention: | Customized | Contrast Ratio: | 4000:1 |
| Module Dimensions: | 240*120mm | Life Span: | 100,000hours |
| Highlight |
indoor full color led display,indoor led billboard |
||
Product Description
Full Color Indoor LED Display Spinning Frame Soft Module For Airport / Trade Show

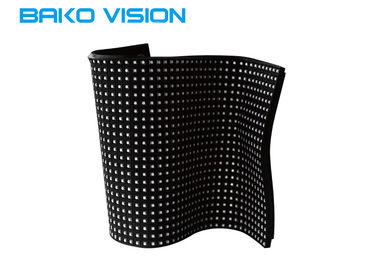

BS Series Flexible Rubber Module,Creative Solutions
Adaptable Design
●CONVEX & CONCAVE CURVEABILITY
Spice up your imaging landscape via seamless convex or concave curved video walls with angles,
curves and just about any other creative design.
●HIGH RESOLUTION TILES
A wide range of pitch options allows for high resolution video playback as well as creative architectural
displays.
Tile Construction
●SLIM CONSTRUCTION
Smaller modules make creative displays more obtainable.
●CUSTOMIZED TILES
BR series come in standard sizes and can also be customized or trimmed to create angled tiles to meet the need of more creative LED video designs.
Unsurpassed Color Uniformity
● Unique color calibration process
● Deep black levels, contrast ratio 4000:1
● Low bright and high gray scale, good consistency
TECHNICAL SPECIFICATIONS
2mm 250,000/m² >1000nit IP40
Pitch Density Brightness Weather Rating
281trillion 8.2kg/m² m 16bit 9/12w
Colors Weight Gray Scale Power Avg/Max
I
|
|
BS-2 | BS-2X | BS-3 | BS-4 |
| Physicla Pitch | 2mm | 2.5 mm | 3 mm | 4 mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 |
| Pixel Density | 250,000 pixels/m² | 160,000 pixels/m² | 111,111 pixels/m² | 62,500 pixels/m² |
| Module Dimensions (W*H)(mm) | 240*120 | 240*120 | 240*120 | 240*120 |
| Panel Dimensions (mm) | customized | customized | customized | customized |
| Physical Resoulution of Modules (W*H) | 120*60 | 96*48 | 80*40 | 60*30 |
| Weight | 8.2 kg/m² | 8.2 kg/m² | 8.2 kg/m² | 8.2 kg/m² |
| Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 9 W | 9 W | 10 W | 10 W |
| Max Power Consumption | 12 W | 12 W | 13 W | 13 W |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,500 nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Scan Method | 1/40 | 1/40 | 1/40 | 1/8 |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| Srevicing | Front | Front | Front | Front |
| IP Rating (Front/Rear) | IP 40 | IP 40 | IP 40 | IP 40 |
| Operating Temp/Humidity | -20ºC-60ºC/10%-90% | -20ºC-60ºC/10%-90% | -20ºC-60ºC/10%-90% | -20ºC-60ºC/10%-90% |
| Storage Temp/Humidity | -40ºC-80ºC/10%-90% | -40ºC-80ºC/10%-90% | -40ºC-80ºC/10%-90% | -40ºC-80ºC/10%-90% |

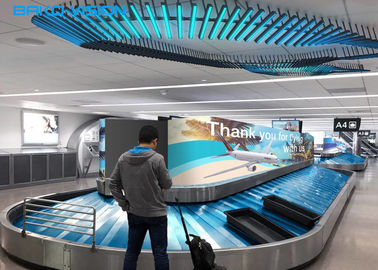

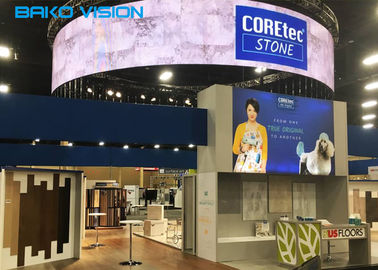

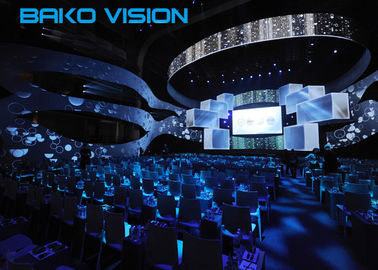

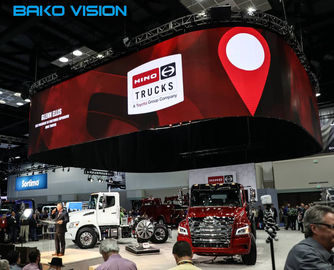

Cases
After-sales Service
We offer 2 year warranty for our different led display screen series, 100,000 hours life span for the led lamps, and lifetime technology support with 7/24 phone answering service if you have any problem with our led screen.
Packaging and Shipping
About Us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
