Product Details:
Payment & Shipping Terms:
|
| Cabinet Material: | Die-casting Aluminum | Brightness: | Over 1200nits |
|---|---|---|---|
| Usage: | Indoor | Warranty: | 2 Years |
| Panel Dimention: | 500*500*80/500*1000*80 | Contrast Ratio: | 4000:1 |
| Screen Dimension: | 500*500 / 500*1000mm | Life Span: | 100,000hours |
| Highlight: | indoor full color led display,indoor led billboard |
||

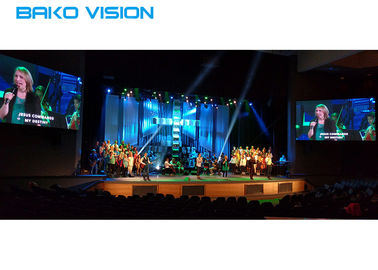

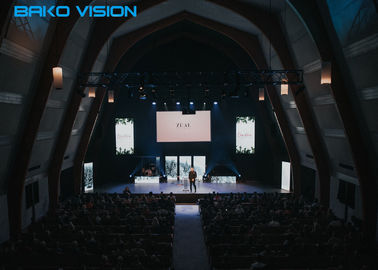

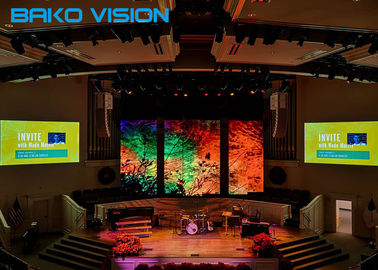

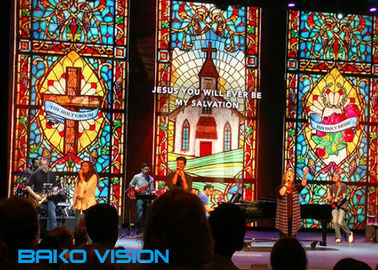

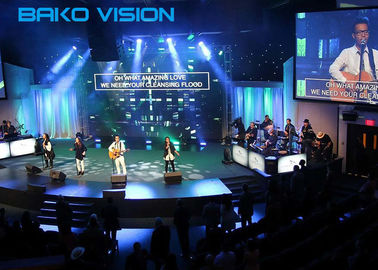

Indoor Rental LED Display P3.91 Video Wall SMD2121 For Church / Worshop
LIGHTWEIGHT & COMPACT DESIGN
●Like all BAKOBISION products, BIR-II is built with an even lighter backing to make it ideal for
whatever venue or application clients need it for.
●BIR-II is available in both full front and rear serviceable models, allowing for simple on-site repairs
when needed without the hassle of removing the entire tile.
Unsurpassed Color Uniformity
● Unique color calibration process
● Deep black levels, contrast ratio 4000:1
● Low bright and high gray scale, good consistency
| BIR-II-2X | BIR-II-2 | BIR-II-3 | BIR-II-4 | |
| Physical Pitch(mm) | 2.6mm | 2.97mm | 3.91mm | 4.81 |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 147,456 pixels/㎡ | 112,896 pixels/㎡ | 65.536 pixels/㎡ | 43.264 pixels/㎡ |
| Module Dimensions (W × H) (mm) | 250x250 | 250x250 | 250x250 | 250x250 |
| Panel Dimensions (mm) | 500x500x80/ 500x1000x80 | 500x500x80/ 500x1000x80 | 500x500x80/ 500x1000x80 | 500x500x80/ 500x1000x80 |
| No. of Modules Per Panel (W × H) | 2x2/2x4 | 2x2/2x4 | 2x2/2x4 | 2x2/2x4 |
| Physical Resolution of Module (W x H) | 96x96 | 84x84 | 64x64 | 52x52 |
| Physical Resolution of Panel (W x H) | 192x192/192x384 | 168x168/168x336 | 128x128/128x256 | 104x104/104x208 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Single Cabinet Weight | 8/14 kg / panel | 8/14 kg / panel | 8/14 kg / panel | 8/14 kg / panel |
| Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 400 W / ㎡ | 400 W / ㎡ | 325 W / ㎡ | 310 W / ㎡ |
| Max Power Consumption | 800 W / ㎡ | 800 W / ㎡ | 780 W / ㎡ | 750 W / ㎡ |
| Operating Temp/Humidity | -10°-60℃/10%-60% | -10°-60℃/10%-60% | -10°-60℃/10%-60% | -10°-60℃/10%-60% |
| Storage Temp/Humidity | -30°-60℃/10%-60% | -30°-60℃/10%-60% | -30°-60℃/10%-60% | -30°-60℃/10%-60% |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Brightness | ≥1,200nits | ≥1,200nits | ≥1,200nits | ≥1,200nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Max Stacking | 10/20 | 10/20 | 10/20 | 10/20 |
| Max Hanging | 10/20 | 10/20 | 10/20 | 10/20 |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| IP Rating(Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |
| Scan Method | 1/32 Scan | 1/28 Scan | 1/16 Scan | 1/13 Scan |
We offer 2 year warranty for our different led display screen series, 100,000 hours life span for the led lamps, and lifetime technology support with 7/24 phone answering service if you have any problem with our led screen.
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
