Product Details:
Payment & Shipping Terms:
|
| Cabinet Material: | Die-casting Aluminum | Panel Dimention: | 480*480 Mm |
|---|---|---|---|
| Brightness: | 600~1,000 Nits | Contrast Ratio: | 4,000:1 |
| Usage: | Stage Rental | Gray Scale: | 16 Bit |
| Warranty: | 2 Years | Module Size: | 240*240 Mm |
| High Light: | indoor full color led display,led publicity screens |
||

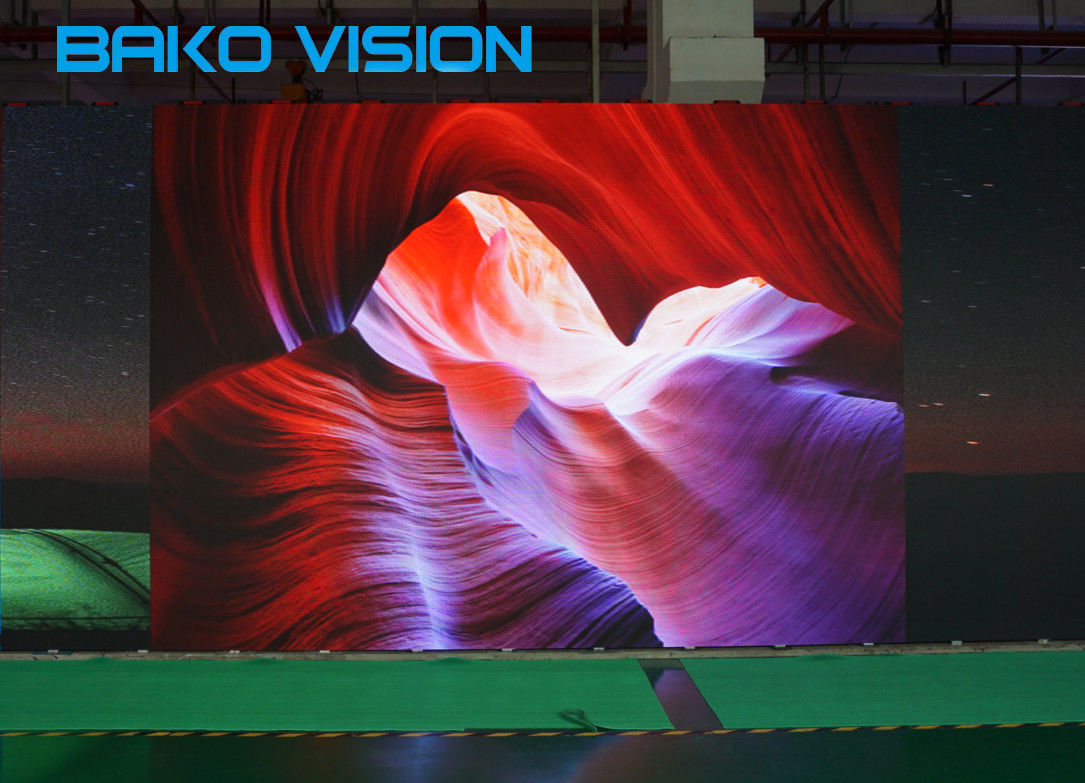

LED Display Screen Sign P2.5 600-1000 Nits Die Casting Aluminum Cabinet
Specification5-Indoor rental led display.pdf
| BHD-1.5 | BHD-1.6 | BHD-1.8 | BHD-2.5 | BHD-3 | |
| Physical Pitch | 1.579 mm | 1.667 mm | 1.875 mm | 2.5 mm | 3 mm |
| Pixel Configuration | SMD 1010 | SMD 1010 | SMD 1515 | SMD 2121 | SMD 2121 |
| Pixel Density | 401,956 pixels/m² | 360,000 pixels/m² | 284,444 pixels/m² | 160,000 pixels/m² | 110,889 pixels/m² |
| Module Dimensions (W × H) (mm) | 240 × 240 | 240 × 240 | 240 × 240 | 240 × 240 | 240 × 240 |
| Panel Dimensions (mm) | 480 × 480 × 80 | 480 × 480 × 80 | 480 × 480 × 80 | 480 × 480 × 80 | 480 × 480 × 80 |
| NO.of Modules Per Panel (W × H) | 2 × 2 | 2 × 2 | 2 × 2 | 2 × 2 | 2 × 2 |
| Physical Resolution of Module (W × H) | 152 × 152 | 144 × 144 | 128 × 128 | 96 × 96 | 96 × 96 |
| Physical Resolution of Panel (W × H) | 304 × 304 | 288 × 288 | 256 × 256 | 192 × 192 | 160 × 160 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight | 7 kg/panel | 7 kg/panel | 7 kg/panel | 7 kg/panel | 7 kg/panel |
| Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 258 W /m² | 264 W /m² | 260 W /m² | 215 W /m² | 235 W /m² |
| Max Power Consumptionx | 715 W/m² | 680 W/m² | 690 W/m² | 640 W/m² | 670 W/m² |
| Operating Temp/Humidity | -10℃-60℃ / 10% -60% | -10℃-60℃ / 10% -60% | -10℃-60℃ / 10% -60% | -10℃-60℃ / 10% -60% | -10℃-60℃ / 10% -60% |
| Storage Temp/Humidity | -30℃-60℃ / 10%-60% | -30℃-60℃ / 10%-60% | -30℃-60℃ / 10%-60% | -30℃-60℃ / 10%-60% | -30℃-60℃ / 10%-60% |
| Refresh Rate | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz |
| Srightness | 600 - 1,000 nits | 600 - 1,000 nits | 600 - 1,000 nits | 600 - 1,000 nits | 600 - 1,000 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 |
| Scan Method | 1/38 Scan | 1/32 Scan | 1/38 Scan | 1/32 Scan | 1/20 Scan |
Unsurpassed Color Uniformity
● Unique color calibration process
● Tight bin selection for LED wavelength
● Deep black levels, contrast ratio 4000:1

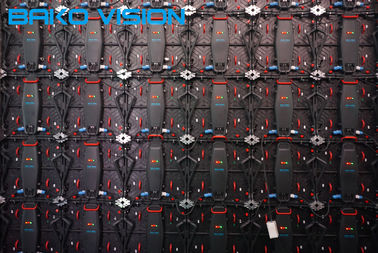

Fast Installation and Easy Maintenance
● Truss hanging and ground support both available
● Cable-less between modules
● Front and rear access
● Tools free installation
Superior Electrical Features
● Dural signal backup port
● UI LCD monitoring display indicates the status
Slim, Light Weight and Quiet
● 480mmx480mm cabinet
● 80mm thickness, 7 KG per cabinet
● Fanless design
