Small Pitch Full Hd Led Display 1920Hz Stage Backdrop For Commercial Events

Small Pitch Full Hd Led Display 1920Hz Stage Backdrop For Commercial Events
Small Pitch Full Hd Led Display 1920Hz Stage Backdrop For Commercial Events Small Pitch Full Hd Led Display 1920Hz Stage Backdrop For Commercial Events Small Pitch Full Hd Led Display 1920Hz Stage Backdrop For Commercial Events Small Pitch Full Hd Led Display 1920Hz Stage Backdrop For Commercial Events

Large Image :  Small Pitch Full Hd Led Display 1920Hz Stage Backdrop For Commercial Events

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: CE,CCC,FCC,ETL
Model Number: BIR-I

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meter
Price: $399~999
Packaging Details: Plywood case / Flight Case
Delivery Time: 15~20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000sqm/ Month
Detailed Product Description
Cabinet Size: 500x500mm/500x1000mm Material: Die-casting Aluminum
Contrast Ratio: 4000 : 1 IP Rating: IP 40 / IP 21
Life Span: 100, 000 Hrs Application: Touring Rental, Stage Rental, Car Show
High Light:

led publicity screens

,

indoor led billboard



Indoor Rental LED Display 1920Hz Stage Backdrop for Commercial Events





Features:





1) Small pitch, high definition.
2) Lightweight with only about 7Kg for the cabinet.
3) Low consumption, long lifespan, help to save maintenance fee.
4) 500x500mm and 500x1000mm for your selection.
5) Concave and convex curve for your selection.

6) This series is available to make floor LED display with the built-in radar,the surface is mounted with acrylic board, which carries load up to 1.5 tons.



Small Pitch Full Hd Led Display 1920Hz Stage Backdrop For Commercial Events 0



Small Pitch Full Hd Led Display 1920Hz Stage Backdrop For Commercial Events 1









Small Pitch Full Hd Led Display 1920Hz Stage Backdrop For Commercial Events 2











Small Pitch Full Hd Led Display 1920Hz Stage Backdrop For Commercial Events 3









Small Pitch Full Hd Led Display 1920Hz Stage Backdrop For Commercial Events 4



Parameters:



  BIR-I-2X BIR-I-2 BIR-I-3
Physical Pitch 2.6mm 2.97mm 3.91mm
Pixel Configuration SMD2121 SMD2121 SMD2121
Pixel Density 147456 pixels/m² 112896 pixels/m² 65536 pixels/m²
Module Dimensions (W× H) (mm) 500x125/500x125 250x250/250x500 250x250/250x500
Panel Dimensions (mm) 500x500x80 500x500x80 500x500x80
  500x1000x80 500x1000x80 500x1000x80
NO .of Modules Per Panel (W × H) 1X4/1X8 2x2 2x2
Physical Resolution of Module ( W× H) 192x48/192x48 84x84/64x168 64x64/64x128
Panel Material 192x192/192x384 168x168/128x336 128x128/128x256
Single Cabinet Weight 7/13KG/Panel 7/13KG/Panel 7/13KG/Panel
Panel Material Die-Casting Aluminum Die-Casting Aluminum Die-Casting Aluminum
Gray Scale 16 bit 16 bit 16 bit
Colours 281 trillion 281 trillion 281 trillion
Contrast Ratio 4000 : 1 4000 : 1 4000 : 1
Average Power Consumption 60/120W/m² 60/120W/m² 60/120W/m²
Max Power Consumption 110/400W/m² 110/400W/m² 110/400W/m²
Operating Temperature -10~60℃/10~60℃ -10~60℃/10~60℃ -10~60℃/10~60℃
Storage Temperature -30~60℃/10~60℃ -30~60℃/10~60℃ -30~60℃/10~60℃
Refresh Rate >1920 Hz >1920 Hz >1920 Hz
Brightness 900-1200 nits 900-1200 nits 900-1200 nits
Horizontal Viewing Angle 160° 160° 160°
Vertical Viewing angle 140° 140° 140°
Max Stacking 20/10 20/10 20/10
Max Hanging 20/10 20/10 20/10
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front/Rear Front/Rear Front/Rear
IP Rating (Front/Rear) IP40 / IP21 IP40 / IP21 IP40 / IP21
Scan Method 1/32 Scan 1/28 Scan 1/16 Scan







Small Pitch Full Hd Led Display 1920Hz Stage Backdrop For Commercial Events 5

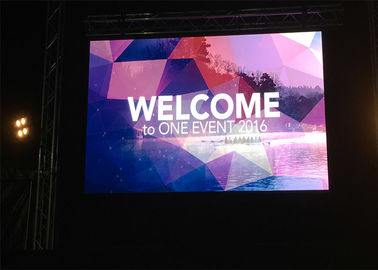

Application References:







Small Pitch Full Hd Led Display 1920Hz Stage Backdrop For Commercial Events 6





Small Pitch Full Hd Led Display 1920Hz Stage Backdrop For Commercial Events 7





About us:



Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.


BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.


BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.


BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries





Small Pitch Full Hd Led Display 1920Hz Stage Backdrop For Commercial Events 8





Service:





Warranty:



1. We guarantee all our display, modules, spare parts (Silan Chip) for TWO years.

2. We provide technology training for free, which contains the operation and maintenance training of the LED screens in factory.

3. After warranty , we also can offer you the parts for replacement at our bottom price.

4. After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.

5. We also could solve problems for you until it recovers well by remote control!



Delivery Time:



1. Delivery time: Accomplish manufacturing within 25 days after receiving the deposit.

2. Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is Ok for delivery.



Installation :



1. We can assist the training and technical support for the customer in the factory, if the customer requires so.

2. We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company.

3. Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
