| Module Dimensions (Wxh) (mm): | 250X250mm | Pixel Configuration: | SMD2121 |
|---|---|---|---|
| Panel Dimensions (mm): | 500X500/500X1000 | Life Span: | 100,000 Hrs |
| Brightness: | 1200 Nits | Lamp: | Nation Star/ Kinglight |
| Max Hanging: | 20/10 | Average Power Consumption: | 60/120W/ Panel |
| High Light: | indoor full color led display,led publicity screens |
||
Full Color 250*250mm module P4.81 Indoor Rental LED Display With Novastar Control System
P4.81 Indoor Rental Description
The P4.81mm Indoor rental led display is one of the most popular led display in the market. Very lightweight and easy to install.HD and it also can be used as a semi-outdoor. Widely used for Stage rental, DJ house, entertainment venues, cinemas and so on. With High utilization.
All electronics and components are using class A rank to match up all EU standards, while price is designed for high cost effective for those resellers and end users who need money back fast.
P4.81 Indoor Rental Products features
1.The Nationstar lamp and MBI 5124 driving IC, together with the multi-circuit structure, achieves evenly-distributed current, low power consumption and fast heat dissipation.
2.Die-casting Aluminum Material, high-precision processing technology, and good heat dissipation.
3. HD Display Visual Effects--High contrast 4000:1 and ultra-high-definition perfect picture quality, bring you absolute visual enjoyment.easily attract attention, greatly enhance the value of advertising.
4.Seamless Connection and Easy Installation.The cabinet is smart concave and convex 0 °-10°, 0.1mm gapline between 2 cabinets. which make the cabinet more fit and achieve seamless connection at all angles.
5. One chassis, Various module options--we have 500*500mm and 500*1000mm cabinet to you choise. Only 7kg/ panel (500*500mm), tools free installation, Save the labor cost and the Transportation costs.
P4.81 Indoor Rental Parameter
| BIR-I-4.81 | |
| Physical Pitch | 4.81mm |
| Pixel Configuration | SMD2121 |
| Pixel Density | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250/ 250*500 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2/2*4 |
| Panel Material | Die-Casting Aluminum |
| Colors | 281Trillion |
| Processing | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 52*52/ 52*104 |
| Physical Resolution of Panel(W*H)(mm) | 104*104/ 104*208 |
| Single Cabinet Weight | 7/13 kg/panel |
| Average Power Consumption | 60/120 W/panel |
| Max Power Consumption | 110/400 W/panel |
| Brightness | 1200 nits |
| Viewing Angle | H:160°/ V:140° |
| Operating Temp/ Humidity | -10ºC-60ºC/10%-60% |
| Storage Temp/ Humidity | -30ºC-60ºC/10%-60% |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front/Rear |
| IP Rating(Front/Rear) | IP 40/IP21 |
| Max Stacking and Hanging | 20/10 |
| Refresh Rate | >1,920 Hz |
P4.81 Indoor Rental Pruduct details
Superior Electrical Features
1. Dual singal backup port. which it means when the singal cable doesn't work in the cabinet, you can also backup in the another signal, In case of data loss.Ensure that the cabinet is working properly.
2. Ul LCD monitoring display indicates the status. The LCD monitoring allows you to know information such as the operating voltage of the cabinet at any time.
3. Button design. We can see three different color buttons, the main function is to test whether the cabinet can work normally, respectively, signal, main switch and power supply. If there is a problem on the stage, you can quickly find the faulty cabinet.
Slim, Ligh Weight and Quiet
Max Hanging: 20m /10m
Max Stacking: 20m /10m
(This means that it can Hanging or Standing 20 cabinets 500*500mm or 10 cabinets 500*1000mm )
High Refresh Rate, High Gray Scale
Wide Viewing Angle, H:160°/ V:140°
Certification
Packing (Flight Case)
Easy to move and High recycling rate. Easy to carry, mostly used for stage rental and other activities.

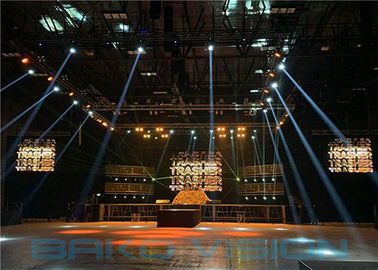

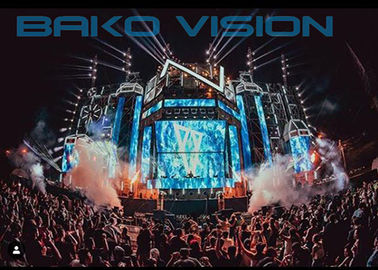

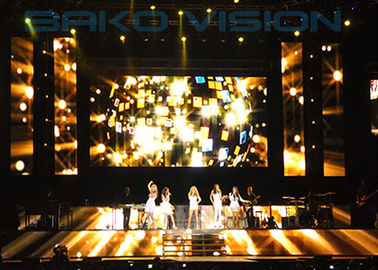

Application case
About us
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Our Promise
24 hours response for your inquiry.
7 days per week to help you.
365 days after serbice support.
All lifetime guarantee and free charge within two years.
OEM&ODM, CUSTOMIZED DESIGN SERVICE,
Patent right protection and distributorship protection.
