Product Details:
Payment & Shipping Terms:
|
| LEDs: | Nationstar | Control System: | Novastar |
|---|---|---|---|
| Pannel Material: | Die-Casting Aluminum | Servicing: | Front/Rear |
| Viewing Angle: | 160°/140° | Refresh Rate: | ＞1920Hz |
| Contrast Ratio: | 4000:1 | Panel Dimensions: | 500 X 500 X 80mm / 500 X 1000 X 80mm |
| High Light: | led publicity screens,indoor led billboard |
||

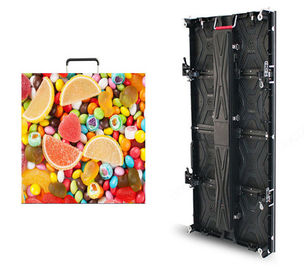

P2.97 P3.91 P4.81 HD Indoor Rental LED Display Screen
Features and Advantages:
Wireless Data and Power Connection
Unique design, quick and clean look, wireless yet stable data and power connection method
Adjustable Angle Lock, Flexible Stage Design
Arc-shaped connection available, with angle adjustment device, concave and convex 10 degrees of adjustment as you wish for different stage.
Light Weight Cabinet Design, One Man Operation
Weight only 8kg, easy to handle. Die cast aluminum cabinet, perfect splicing without gaps. Fast locking makes assembly and disassembly extremely easy. High-quality plugs ensure reliability.
Front Maintenance Magnetic Module
Snap-in quick disassembly design, maintenance and installation is more efficient and convenient.
Absolute 4K HD Display Visual Effects
High contrast 4000:1 and HD 4K perfect picture quality, bring you absolute visual enjoyment.
easily attract attention, greatly enhance the value of advertising.
Specification
| BIR-I-2 | BIR-I-3 | BIR-I-4 | |
| Physical Pitch | 2.97mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 112,896 pixels/m² | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions | 250×250mm/250×500mm | 250×250mm/250×500mm | 250×250mm/250×500mm |
| Panel Dimensions | 500×500×80mm/500×1000×80mm | 500×500×80mm/500×1000×80mm | 500×500×80mm/500×1000×80mm |
| NO. of Modules Per Panel | 2×2 | 2×2 | 2×2 |
| Physical Resolution of Module | 84×84dots/84×168dots | 64×64dots/64×128dots | 52×52dots/52×104dots |
| Physical Resolution of Panel | 168×168dots/168×336dots | 128×128dots/128×256dots | 104×104dots/104×208dots |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight | 8kg | 8kg | 8kg |
| Grayscale | 16bit | 16bit | 16bit |
| Colors | 281trillion | 281trillion | 281trillion |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 |
| Average Power Consumption | 60/120W/ panel | 60/120W/ panel | 60/120W/ panel |
| Max Power Consumption | 110/400 W/ panel | 110/400 W/ panel | 110/400 W/ panel |
| Refresh Rate | ＞1920Hz | ＞1920Hz | ＞1920Hz |
| Brightness | 900 - 1200 nits | 900 - 1200 nits | 900 - 1200 nits |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 |

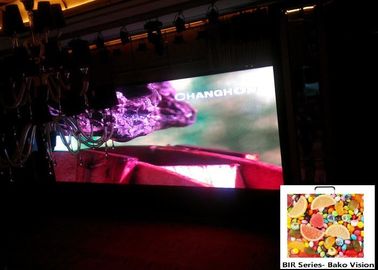

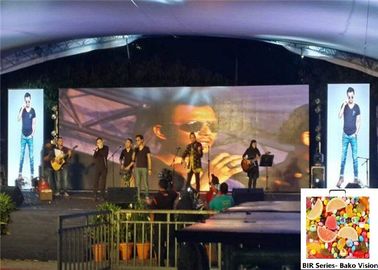

Case (Click below image to link video)
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
