Slim P2.97 Indoor Rental LED Display Front and Rear Access Optional 16 Bit Gray Scale
Product Details
| Panel Material: | Die-casting Aluminum | Contrast Ratio: | 4000 : 1 |
|---|---|---|---|
| Cabinet Size: | 500mmx500mm / 500mmx1000mm | Brightness: | 900~1200 Nits |
| Control System: | Novastar | Application: | Events, Car Show, Wedding Hall |
| Highlight |
led publicity screens,indoor led billboard |
||
Product Description
P2.97 Indoor Rental LED Display Front and Rear Access Optional 16bit Gray Scale
Features:
1. UI LCD display
The rear LCD display shows voltage, temperature, cabinet operating time and total hours of operating. Power and signal lamps indicates cabinet status.
2. Dual data connection
There is optional data connecting port on bottom of LCD box, you can use if standard one fails.
3. Strong Locks for hanging installation
A:The cabinets locks are smooth edged, easy handling and strong that you can hang up to 20pcs cabinet in vertical.
B:No tools are required for installation of screen.
C:Handle is innovative, grip and wide for easy handling.
5. Sleek and Slim design
500x1000mm cabinets can be mixed assembly.
The cabinet is slim and rear design smooth edged surface makes you handle safely.

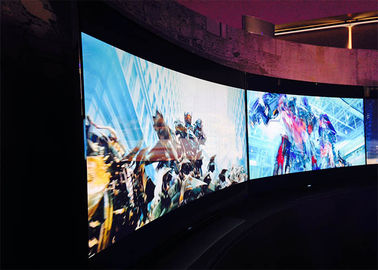

4. Concave or Convex
Cabinet can make curved shape,from 0 to 15 degree.
Parameters:
| Pixel Pitch | 2.97mm | 3.91mm | 4.81mm | 6.25mm |
| Pixel Configuration | SMD2121 | SMD3528 | ||
| Pixel Density | 112,896pixels/m² | 65,536pixels/m² | 43,264pixels/m² | 25,600pixels/m² |
| Moduel Demensions(mm) | 250x250 /250x500 | 250x250 / 250x500 | 250x250/250x500 | 250x250 /250x500 |
| Panel Demension(mm) | 500x500 / 500x1000 | |||
| Resolution of Module | 84x84 / 84x68 | 64x64 / 64x128 | 52x52 / 52x104 | 80x80 / 80x160 |
| Grey Level | 16 bits(281 trillion colors) | |||
| Single Cabinet Weight | 7/13kg | |||
| Contrast Ratio | 4000 : 1 | |||
| Brightness | 900~1200 nits | |||
| Refresh Rate | 1920Hz | |||
| Average Power Consumption | 60/120 W/panel | |||
| Max Power Consumption | 110/400 W/panel | |||
| Viewing angle(H/V) | 160°/ 140° | |||
| Max Stacking | 20/10 | |||
| Max Hanging | 20/10 | |||
| Expected Lifetime | 100,000 hours | |||
| IP Rating (Front/Rear) | IP 40/IP 21 | |||
| Operating Temp/Humidity | -10℃~60℃ / 10%~60% | |||
| Storage Temp/Humidity | -30℃~60℃ / 10%~60% | |||
| Certification | CCC, CE, ETL, FCC | |||

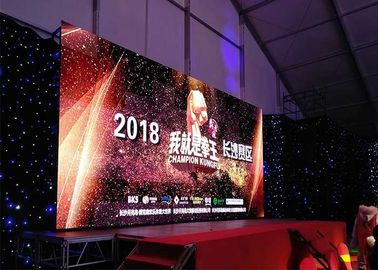

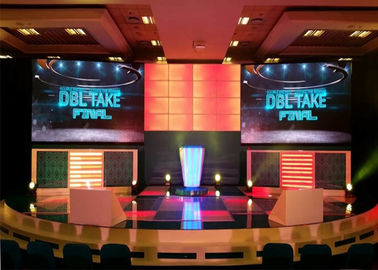

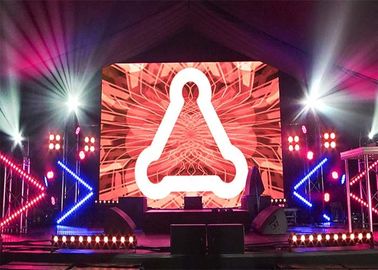

Cases:
FAQ:
1. How long is the warranty period ?
We provide 2 years warranty and free repair service for our products sold.
2. Is Available to print customer required logo on your LED product ?
Surely it is .Please inform and confirm the logo details with our team ahead of the production.
3. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
4. Can I have a sample order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
5. Why choose bako vision?
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically
advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION
is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years.
All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover,
delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
