Curtain Indoor Rental LED Display 1200 Nits Full Color For Stage Event Live Show

Curtain Indoor Rental LED Display 1200 Nits Full Color For Stage Event Live Show
Curtain Indoor Rental LED Display 1200 Nits Full Color For Stage Event Live Show Curtain Indoor Rental LED Display 1200 Nits Full Color For Stage Event Live Show Curtain Indoor Rental LED Display 1200 Nits Full Color For Stage Event Live Show

Large Image :  Curtain Indoor Rental LED Display 1200 Nits Full Color For Stage Event Live Show

Product Details:

Place of Origin: China
Brand Name: Bakovision
Certification: CE ETL FCC RoHS ISO CCC
Model Number: BIR-III Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case or flight case
Delivery Time: 15-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000 sqm/month
Detailed Product Description
Pixel Configuration: SMD2121 LEDs: Nationstar
Control System: Novastar Viewing Angle: 160°/140°
Refresh Rate: >1920Hz Contrast Ratio: 4000:1
Panel Dimensions: 500 X 500 X 80mm / 500 X 1000 X 80mm Weight: 8 / 14kg/panel
High Light:

indoor full color led display

,

indoor led billboard

P2.97 P3.91 Tools Free Installation Indoor Rental LED Display


Features and Advantages:

  1. Curved angle : ±10° adjustable, creative design to meet your requirement;
  2. Panel Size: The Panel size is 500 x 500mm and 500 x 1000mm, there can make the screen size as : 4*3m ,6*4m,9*5m etc . It is suitable for 4:3 ,16:9 ratio ;Also you can adjust the screen size free as your wish.
  3. High brightness: More than 1200nits
  4. Convenient Assemble : Smart fast side locks make screen assemble fast and easier;
  5. Seamless connection: superior color uniformity and stunning image quality, there is not black gap line on connection nor information missing;
  6. Good heat dissipation: New cabinet design of LED screen without fan, good heat dissipation,due to die-casting alumium material ,concise, slim and light weight;
  7. Convenient Control: Digital Video walls can be connected with nearly any equipment , including to PCs, DVD and camera . That is conveniently for you to present your data;
  8. 2 Years Warranty : we can repair each LED lamps, so the cost of maintain is lower,and easy to repair;Also you can send back the module to us to fix.
  9. High Quality : we use famous IC ,like MBI5020,MBI5024,MBI5030 and high quality lamp, Nationstar and so on, ensure high brightness;





Specification:

  BIR-III-2 BIR-III-3
Physical Pitch 2.97mm 3.91mm
Pixel Configuration SMD2121 SMD2121
Pixel Density 112,896 pixels/Sqm 65,536 pixels/Sqm
Module Dimensions(W x H) (mm) 250 x 250 250 x 250
Panel Dimensions (mm) 500 x 500 x 80 / 500 x 1000 x 80 500 x 500 x 80 / 500 x 1000 x 80
NO. of Modules Per Panel (W x H) 2 x 2 / 2 x 4 2 x 2 / 2 x 4
Physical Resolution of Module (W x H) 84 x 84 64 x 64
Physical Resolution of Panel (W x H) 168 x 168 / 168 x 336 128 x 128 / 128 x 256
Panel Material Die-Casting Aluminum Die-Casting Aluminum
Single Cabinet Weight 8 / 14 kg/panel 8 / 14 kg/panel
Processing 16bit 16bit
Colours 281 trillion 281 trillion
Contrast Ratio 5,000 : 1 5,000 : 1
Average Power Consumption 64 /128 W /panel 64 /128 W /panel
Max Power Consumption 192 /384 W /panel 192 /384 W /panel
Operating Temp/Humidity -10ºC - 60ºC / 10ºC - 60ºC -10ºC - 60ºC / 10ºC - 60ºC
Storage Temp/Humidity -30ºC - 60ºC / 10ºC - 60ºC -30ºC - 60ºC / 10ºC - 60ºC
Refresh Rate >1,920 Hz >1,920 Hz
Brightness ≥1,200nits ≥1,200nits
Horizontal Viewing Angle 160° 160°
Vertical Viewing Angle 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs
Max Stacking 20 / 10 20 / 10
Max Hanging 20 / 10 20 / 10
Servicing Front / Rear Front / Rear
IP Rating (Front/Rear) IP 40 / IP 21 IP 40 / IP 21

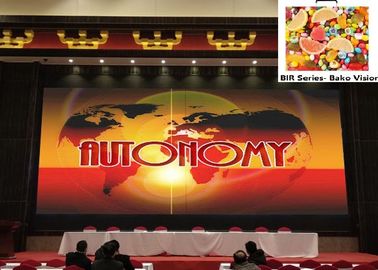

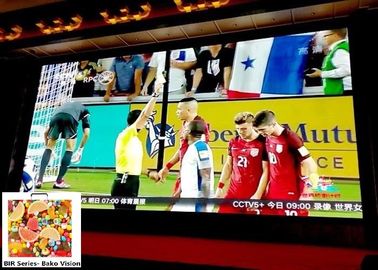

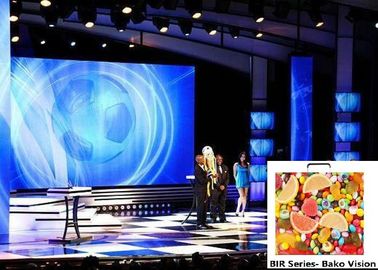

Case:

Curtain Indoor Rental LED Display 1200 Nits Full Color For Stage Event Live Show 0


FAQ
1. How can I place an order?
Please provide all the details of your requirements for our reference So we can send you the offer at the first time.Feel free to contact with me by What's APP/email /phone to avoid any delay.

2. What kind of display you provide?
We have indoor/outdoor/LED stage/Sport display/ Irregular LED display/monitor screen for you choose.


3. Are you manufacturer of led display.If yes, in which city?
Yes, We already have more than 14 years experience for LED display as a LED manufacturer located in Shenzhen

4. How long can I get the goods?
Our product leadtime is about 10-25 working days.When you confirm the order, we can start production at once receiving your deposit(30% TT in advance). we will update the production details in time.we will notice you when we can delivery the goods to you after we get full payment.

5.May I know the package details?
For fixed installation, we use wooden case, usually 2 or 4 cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.


6.What is the payment method?
We support the payment methods as TT.


7. What's the pixel pitch for Indoor LED Display Screen?
Indoor (P2.6mm/P2.97mm/P3.91/P4.81mm) led display screen

8.Can it play HD video?
Yes, it can realize HD video function with Linsn/nova controlling system

9.What's the controlling system?
Our standard controlling system for this model is Linsn/ Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.


10.What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in 1) ?
SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
SMD(One LED), reduced the LED on the screens,it reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.


11. What is your terms of delivery?
We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you.
