SMD2121 P3.91 Ultra High Indoor Full Color Led Display Sign With Die Casting Aluminum
Product Details
| Receiver Card: | NOVA | Pixel Configuration: | SMD 2121 |
|---|---|---|---|
| Sigle Cabinet Weight: | 8 Kg/ Panel | Refresh Rate: | >1920 Hz |
| Panel Material: | Die-Casting Aluminum | Lamp: | Nation Star/ Kinglight |
| Colours: | 281 Trillion | Contrast Ratio: | 4000:1 |
| Highlight |
indoor full color led display,indoor led billboard |
||
Product Description
SMD2121 P3.91 Ultra High Indoor Rental LED Sign With Die-Casting Aluminum
Products features
1. Use high-quality LED lamp
with high efficiency luminescence, decreased attenuation of brightness, high stability and reliability.
2. Lightweight.
Convenient in transporting and installing & saving labor cost, suitable for flow shows.
3. Seamless splicing.
4. Easy installation & Maintenance
Special structural design that helps you to install the screen on ground without any tools.
You can remove the modules diagonally for maintenance easily.
5. Multifunctional:
The screen could be hung up for different kinds of event. And it also could be put on the floor as dance floor.
Parameter
| BIR-III-3 | |
| Physical Pitch | 3.91mm |
| Pixel Configuration | SMD2121 |
| Pixel Density | 65,536 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250/250*500 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2/2*4 |
| Panel Material | Die-Casting Aluminum |
| Colors | 281Trillion |
| Processing | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*64/64*168 |
| Physical Resolution of Panel(W*H)(mm) | 128*128/128*256 |
| Single Cabinet Weight | 8/14kg/panel |
| Average Power Consumption | 64/128W/panel |
| Max Power Consumption | 192/384W/panel |
| Brightness | 1200 nits |
| Viewing Angle | H:160°/ V:140° |
| Operating Temp/ Humidity | -10ºC-60ºC/10%-60% |
| Storage Temp/ Humidity | -30ºC-60ºC/10%-60% |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front/Rear |
| IP Rating(Front/Rear) | IP 40/IP21 |
| Max Stacking | 20/10 |
| Max Hanging | 20/10 |
| Refresh Rate | >1,920 Hz |
Pruduct details
The process of control LED screen.
The first level LED chip from Nation star/ Kingline. (Option to the clients)
With pure golden wire connection in LED. (Option to the clients)
Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.
Life time >11 years
Truss hanging and ground support both available
Cable-less between modules
Front and rear access
High refresh rate
Our led display with 16 bit graycale, better than normal diaplay's graycale, picture vivid and vivid.
The vedio quality of indoor P3.91 LED display

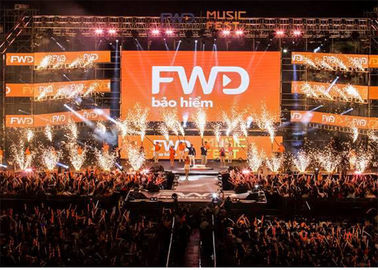

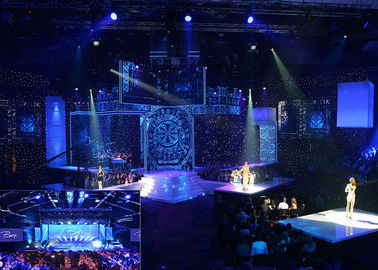

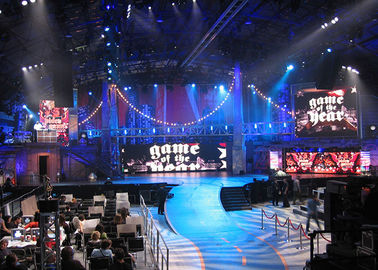

P3.91 Indoor Rental LED display, P3.91mm pixel rental LED display LED screen LED video wall, Standard Size 500mmx1000mm or 500x500mm, P3.91mm led display screen high quality SMD LED Display Screen for rental use. P3.91 Rental LED display mainly used for performance, meetings, exhibitions, weddings, foundations, started opening, promotion and other activities,the stage background structures, lighting and sound equipment and special effects equipment rental places.
About us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Quality assurance
- Every production process has a special person to test 72 hours to ensure quality.
- Have professional engineers to check the quality.
- All products have passed CE, FCC, ROHS and other certifications.
- We have the local agency and you can enjoy the local service.
