Product Details:
Payment & Shipping Terms:
|
| Cabinet Material: | Die-casting Aluminum | Panel Dimention: | 500*500/500*1000 |
|---|---|---|---|
| Brightness: | 900-1,200nits | Contrast Ratio: | 4000:1 |
| High Light: | led publicity screens,indoor led billboard |
||
Indoor Rental LED Display Advertising Panel Indoor Screen Full Color Led Video Wall
LED Display Screen Specification5-Indoor rental led display.pdf
| BIR-I-2X | BIR-I-3 | BIR-I-4 | BIR-I-6 | |
| Physical Pitch | 2.97mm | 3.91mm | 4.81mm | 6.25mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD3528 |
| Pixel Density | 112,896 pixels/sqm | 65,536 pixels/sqm | 43,264 pixels/sqm | 25,600 pixels/sqm |
| Module Dimensions (W*H)(mm) | 250*250/250*500 | 250*250/250*500 | 250*250/250*500 | 250*250/250*500 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| Physical Resolution of Module(W*H) | 84*84/84*168 | 64*64/64*128 | 52*52/52*104 | 40*40/40*80 |
| Physical Resolution of Panel(W*H) | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 | 80*80/80*160 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Single Cabinet Weight | 7/13 kg/panel | 7/13 kg/panel | 7/13 kg/panel | 7/13 kg/panel |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 60/120W/panel | 60/120W/panel | 60/120W/panel | 60/120W/panel |
| Max Power Consumption | 110/140W/panel | 110/140W/panel | 110/140W/panel | 110/140W/panel |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz | >1,920Hz |
| Brightness | 900-1,200nits | 900-1,200nits | 900-1,200nits | 900-1,200nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Max Staking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |
About Product
√ Certification
√ Features
Sleek & Slim design: The cabinet is slim and rear design is smooth edged surface that makes you handle safely.
Innovative handle:Handle is innovative, grip and wide for easy handling.
UI LCD display:The rear box has LCD display that it shows voltage, temperature, cabinet usage timing for every time used and total hours of usage. Power and signal lamps indicates cabinet status.
Dual data connection:There is optional data connecting port on cabinets under rear box, you can use it if standard one fails.
No flat & power cable on module:Everything is connected with pin type socket. Calble free design makes it fast for installation and stable in data/power transmission.
Strong Locks for hanging installation:The cabinets locks are smooth edged, easy handling and strong that you can hang up 20 pcs cabinet in vertical column 500*500 mm cabients and 500*1000 mm cabinets can connect together easily.
Easy ground installation:Special structural design that helps you to install the screen on ground without any tools.
Fast assembling & disassembling:No tools are required for installation of screen.

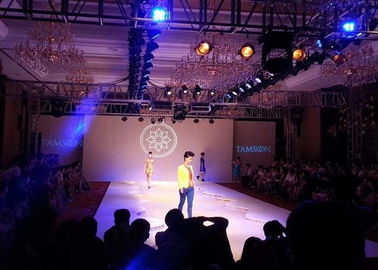

√ Image
√ Packaging and shipping
Nit is a unit to measure luminance over a square meter. It is also well-known as meter-lamberts.
NIT = meter-lamberts = candela per square meter (cd/m2)
Why does brightness matter?
At night, generally speaking, LED displays are always readable and working fine.
How to make a good choice between the flight case and wooden case?
Flight case is usually used for the rental LED display, which makes the transportation more convenient and protect the LED display better.
Wooden case is only for one time using transportation, such as the fixed installation LED display, wooden case is the best way for packing since the low cost and at the same time it can also ensure the safety of the LED display.
If your LED display screen system is for the rental use, please choose the flight case.
What is best viewing distance? How to calculate the best viewing distance of the LED display?
Best viewing distance refers to the distance between the LED Display and its viewers, where the people can see a whole and clear picture of the image on the LED display.
There’s 2 ways to calculate the best viewing distance: one is by the pixel pitch, one is by the diagonal.
