Product Details:
Payment & Shipping Terms:
|
| Contrast Ratio: | 4000:1 | Processing: | 16bit |
|---|---|---|---|
| Weight: | 7kg/cabinet | Pixel Configuration: | SMD2121 |
| LEDs: | Nationstar | Panel Size: | 500x500x80mm |
| Panel Material: | Die-casting Aluminum | Expected Lifetime: | 100000 Hours |
| Warranty: | 2 Years | View Angle: | 160 Degree |
| High Light: | indoor full color led display,led publicity screens |
||

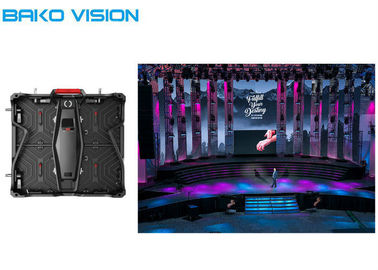

Full color Indoor Rental LED Display Screen SMD Fast Installation
Specifications:
| Model | BIR-I-2 | BIR-I-3 | BIR-I-4 | BIR-I-6 |
| Physical Pitch | 2.97mm | 3.91mm | 4.81mm | 6.25mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD3528 |
| Pixel Density | 112896 pixels/m² | 65536 pixels/m² | 43264 pixels/m² | 25600 pixels/m² |
| Module Dimensions (W× H) (mm) |
250*250/250*500 | 250*250/250*500 | 250*250/250*500 | 250*250/250*500 |
| Panel Dimensions (mm) | 500*500*80 500*1000*80 |
500*500*80 500*1000*80 |
500*500*80 500*1000*80 |
500*500*80 500*1000*80 |
| NO .of Modules Per Panel (W × H) | 2x2 | 2x2 | 2x2 | 2x2 |
| Physical Resolution of Module ( W× H) | 84*84/64*168 | 64*64/64*128 | 52*52/52*104 | 40*40/40*80 |
| Panel Material | 168*168/128*336 | 128*128/128*256 | 104*104/104*208 | 80*80/80*160 |
| Single Cabinet Weight | 7/13KG/Panel | 7/13KG/Panel | 7/13KG/Panel | 7/13KG/Panel |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Colour Number | 281trillion | 281trillion | 281trillion | 281trillion |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Average Power Consumption | 60/120W/Panel | 60/120W/Panel | 60/120W/Panel | 60/120W/Panel |
| Max Power Consumption | 110/400W/Panel | 110/400W/Panel | 110/400W/Panel | 110/400W/Panel |
| Operating Temperature | -10~60ºC/10~60ºC | -10~60ºC/10~60ºC | -10~60ºC/10~60ºC | -10~60ºC/10~60ºC |
| Storage Temperature | -30~60ºC/10~60ºC | -30~60ºC/10~60ºC | -30~60ºC/10~60ºC | -30~60ºC/10~60ºC |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz | >1920Hz |
| Brightness | 900-1200nits | 900-1200nits | 900-1200nits | 900-1200nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° |
| Max Stacking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Expected Lifetime | 100,000hours | 100,000hours | 100,000hours | 100,000hours |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |
| Certification | CCC,CE,FCC,ETL | CCC,CE,FCC,ETL | CCC,CE,FCC,ETL | CCC,CE,FCC,ETL |
BIR-I Indoor Rental LED Display
One Chassis, Various Module Options
TUV Certificated and Reddot Awarded (Private Model)
Cabinet 500mmx500mm or 500mmx1000mm
High Definition Indoor Display
Curvilinear, Concave, Convex
Superior Electrical Features
The dual signal backup port
UI LCD monitoring display indicates
Fast Installation and Easy Maintenance
Truss hanging and ground support both available
Cable-less between modules
Front and rear access
Tools free installation
Unsurpassed Color Uniformity
The unique color calibration process
Tight bin selection for LED wavelength
Deep black levels, contrast ratio 4000:1
Slim, Light Weight and Quiet
500mmx500mm or 500mmx1000mm cabinet
80mm thickness, 7 KG per cabinet
Fanless design
Factory
Case:
Project Accomplished: June 12, 2016
Location: US, American Idol Show
Screen Dimension: 256m²
Product Model: BIRI-3, P3.91 Indoor Rental Led Display
Part OF Exhibitions during this year
Our Service:
1. We guarantee all our display, modules, spare parts for TWO years.
2. We provide technology training for free, which contains the operation and maintenance training of the LED display in the factory.
3. After sales, if you have any problem with our products, you can inform us by E-mail, we will reply to you at once.
4. We can provide the training and technical support for the customer in the factory if the customer asks.
5. we have a warehouse in the USA and our engineer stay in the USA to deal with after-sales and provide technical support.
6. We often attend exhibitions around the world every year, so we can visit you if you need at that time.
