Product Details:
Payment & Shipping Terms:
|
| Contrast Ratio: | 2000:1 | Processing: | 16 Bit |
|---|---|---|---|
| Viewing Angle: | V:140 Degree / H: 120 Degree | Operating Temp/ Humidity: | -10ºC-60ºC/10%-60% |
| Storage Temp/Humidity: | -30ºC-60ºC/10%-60% | Colors: | 281 Trillion |
| Brightness: | >5,500 Nits | Serving: | Rear |
| High Light: | led publicity screens,indoor led billboard |
||
SMD3528 Ultra-lightweight Indoor LED Glass Screen For Window Advertising
Product Description
1,Great transparency
Up to 80% transparency for front , it is installed close to the glass of shop window or large glass building wall.
2,Ultra slim & light weight
individually remove and replaceable, improves the installation efficiency.
3,Light weight
Light design with 10kg/m², die- casting aluminum material to ensure the precise for location
4,Easy maintenance with front service.
Rear service, Everything is inbuilt, and it can be installed within a few minutes using simple screw-driver.
4,Transparent LED Screen
The higher transparency effect allows you to see LED light on the glass without any effect to surround of glass wall.
The high brightness and high definition features of the Transparent LED Screen ensures great quality pictures
6,Fan less design
Working in noiseless condition and energy-saving.
Specifications
| BG-3.75-6.67 | |
| Physical Pitch | 5*6.67mm |
| Pixel Configuration | SMD3528 |
| Pixel Density | 30,000pixels/m² |
| Module Dimensions(W*H)(mm) | 480*320 |
| Panel Dimensions(mm) | 960*640 |
| Weight(kg/m²) | 10kg/m² |
| Physical Resolution of Module(W*H) | 96*48 |
| Physical Resolution of Panel(W*H) | 192*96 |
| Colors | 281 trillion |
| Processing | 16 bit |
| Contrast Ratio | 2000:1 |
| IP Rating | IP30 |
| Viewing Angle | H:160°,V:140° |
| Panel Material | Alumium |
| Expected Lifetime | 100,000Hrs |
| Operating Temp/Humidity | -10ºC-60ºC/10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/10%-60% |
| Avg/Max Power Consumption | 207/ 690/W/m² |
| Servicing | Rear |
| Refresh Rate | >1920 Hz |
| Avg/Max. Power Consumption | 207/690 W/m² |
| Brightness | >5,500 nits |
Installation
Hanging instllation and quick lock on the cabinets to save cost for the steel structure.

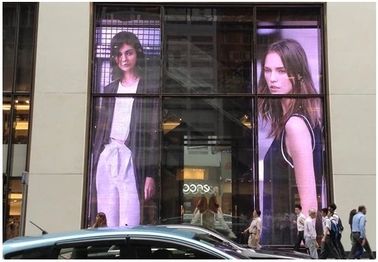

Application
Widely use Building construction, Rental tour, Car show, Window display, Shopping mall, Fashion store and Hotel and so on.
