Product Details:
Payment & Shipping Terms:
|
| Panel Material: | Die-casting Aluminum | Moduel Size: | 250mmx250mm |
|---|---|---|---|
| Cabinet Size: | 500mmx500mm / 500mm X 1000mm | Brightness: | 1200 Nits |
| Control System: | Linsn | Application: | Stage,Events |
| High Light: | indoor full color led display,indoor led billboard |
||
Full Color Indoor Rental LED Display for Stage / Conference
Features:
1. High definition and wide viewing angle give audients best visual feeling.
2. Weight of each cabinet is only 8kg and 80mm thick.
3. Die-casting Alu material save fan design because of good thermal dissipation ,which also help increase life span.
4. User friendly fast lock contributes to convenient installation and dismantlement,save you much time and labor cost.
5. Cable-less design make it looks concise and beauty the cabinet,meanwhile,chance of failure is reduced significantly.
Details:
1. Two types of size available: 500 x 500mm or 500 x 1000mm
2. Fast lock and handle designed user friendly,tools free
3. Truss hanging and ground support both workable
4. 0~10 degree concave or convex
Parameters:
| Pixel Pitch | 2.6mm | 2.97mm | 3.91mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 147,456pixels/m² | 112,896pixels/m² | 65,636pixels/m² |
| Moduel Demensions(mm) | 250x250 | ||
| Panel Demension(mm) | 500x500 / 500x1000 | ||
| Resolution of Module | 96 x 96 | 84 x 84 | 64 x 64 |
| Grey Level | 16 bits(281 trillion colors) | ||
| Single Cabinet Weight | 8/14kg | ||
| Contrast Ratio | 4000 :1 | ||
| Brightness | 1200 nits | ||
| Refresh Rate | 1920Hz | ||
| Average Power Consumption | 64/128 W/panel | ||
| Max Power Consumption | 192/384 W/panel | ||
| Viewing angle(H/V) | 160°/ 140° | ||
| Max Stacking | 20/10 | ||
| Max Hanging | 20/10 | ||
| Expected Lifetime | 100,000 hours | ||
| IP Rating (Front/Rear) | IP 40/IP 21 | ||
| Certification | CCC, CE, ETL, RoHS | ||

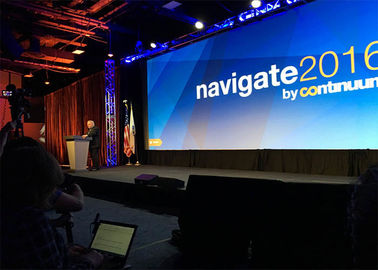

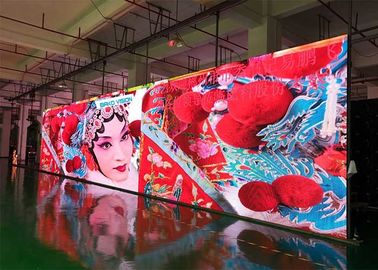

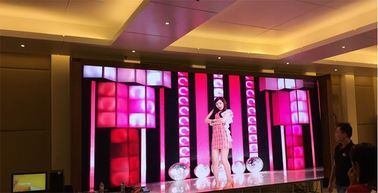

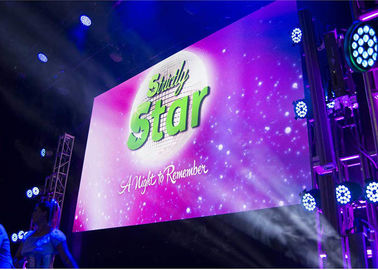

Case:
FAQ:
1. How long is the warranty period ?
We provide 2 years warranty and free repair service for our products sold.
2. Is Available to print customer required logo on your LED product ?
Surely it is .Please inform and confirm the logo details with our team ahead of the production.
3. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
4. Can I have a sample order for led light?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
5. Why we choose bako vision?
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically
advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION
is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years.
All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover,
delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
