Product Details:
Payment & Shipping Terms:
|
| Pixel Configuration: | SMD3535 | Panel Material: | Aluminium |
|---|---|---|---|
| Single Cabinet Weight: | 70/50kg/sqm | Processing: | 16bit |
| Contrast Ratio: | 2000:1 | IP Rating（front/rear）: | IP65/IP54 |
| High Light: | stadium perimeter led display,led perimeter advertising boards |
||
Outdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium Material
18-BSP.pdf
Ultimate, Outdoor, Sports Display
Technical specifications:
| BSP-8 | BSP-10 | BSP-16 | |
| Physical Pitch | 8mm | 10mm | 16mm |
| Pixel Configuration | SMD3535 | SMD3535 | SMD3535 |
| Pixel Density | 15,625pixels/m² | 10,000pixels/m² | 3,906 pixels/m² |
| Module Dimensions(W*H)(mm) | 256*256 | 320*320 | 256*128 |
| Panel Dimensions(mm) | 1280*768*187 | 1280*960*187 | 1280*896*187 |
| NO. Of Modules Per Panel(W*H) | 5*3 | 4*3 | 5*7 |
| Physical Resolution of Module(W*H) | 32*32 | 32*32 | 16*8 |
| Physical Resolution of Panel(W*H) | 160*96 | 128*96 | 160*56 |
| Panel Material | Aluminium | Aluminium | Aluminium |
| Single Cabinet Weight | 70/50kg/m² | 70/50kg/m² | 70/50kg/m² |
| Processing | 16bit | 16bit | 16bit |
| Colour Number | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2000:1 | 2000:1 | 2000:1 |
| Average Power Consumption | 360W/panel | 360W/panel | 360W/panel |
| Max. Power Consumption | 900W/panel | 900W/panel | 900W/panel |
| Operating Temp/Humidity | -20ºC-50ºC/10%-90% | -20ºC-50ºC/10%-90% | -20ºC-50ºC/10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/10%-90% | -20ºC-50ºC/10%-90% | -20ºC-50ºC/10%-90% |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz |
| Brightness | >6500 nits | >6500 nits | >6500 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| IP Rating (Front/Rear) |
IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Servicing | Front/Rear | Front/Rear | Front/Rear |

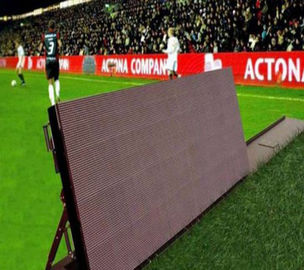

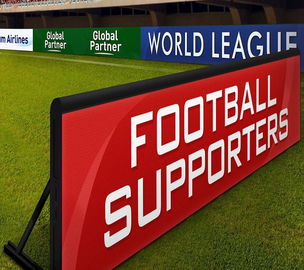

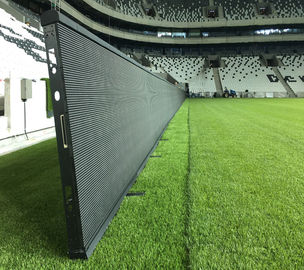

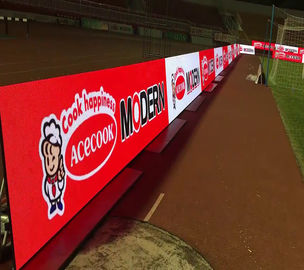

Applications:
