Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 16mm | Brightness: | 7000nits |
|---|---|---|---|
| Refresh Rate: | 3000Hz | Power Supply: | Greatwall |
| Cabinet Material: | Aluminum | IP Rate: | IP65 |
| High Light: | led perimeter advertising boards,stage background led screen |
||
6,000nits Sports Perimeter LED Display Screen Panel for Stadium events
Sports Perimeter Display Features and advantages;
1. Rubber mask: The rubber mask can protect football player and also protect led display itself;
2.Foam protector on the top of cabinet can also protect players ;
3.Adjustable bracket at the back of cabinet;
4. Good waterproof protection: Front is IP65 and back is IP54;
5. Good color uniformity, because we use top rate of Led;
7. Energy saving, due to we use high efficiency power supply, top rate of led, etc;

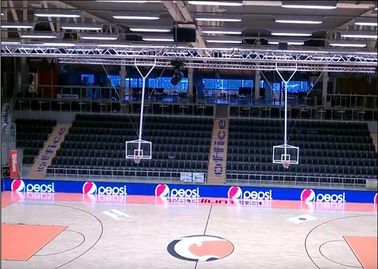

Sports Perimeter Display Applications:
Advertising media, sports stadiums, public area, Football game, basketball game, swimming, pool golf game, even can be used for events like shows, exhibitions, concerts;
Why choose BAKOVISION?
1. more than 12 years experience in led display industry, we have most talented engineers to design best products for our clients;
2. "Customer first" is our belief. We promise to offer best products with good service for our clients;
3. Most competitive price make our led displays are afordable;
4. Normally 2 years warranty, even we can offer 3 years warranty if our clients need;
5. Top quality machines to make top quality products;
Main Product:
Outdoor Rental Led Display
Indoor Rental Led Display
Outdoor Fixed Led Display
Indoor Fixed Led Display
Stage Rental Led Display
HD Led Display
Billboard Led Display
Transparent Led Screens
Flexible Led Display
Front service Led Display
Led Curtain Display
Mobile Led Screen
Sports Perimeter Led Displa
Taxi Led display
Led Moving message sign
Sports Perimeter Display Specification:
| Pixel Pitch | 16mm |
| Pixel Density | 3,906dots/sqm |
| Color Configuration | 1R1G1B |
| LED Encapsulation | DIP346 |
| Module Size | 256mm x 256mm |
| Module Resolution | 16dots x 16dots |
| Drive Duty | Static Constant Current |
| Brightness | >8,000nits |
| Viewing Distance | 16m - 160m |
| Viewing Angle | H: 120°, V: 70° |
| Refresh Rate | 2,000HZ |
| Frame Rate | 120frame/sec |
| Grey Grade | 256levels of Each Color |
| Color Grade | 16.7M |
| Power Input | AC110V/ 220V/ 50HZ |
| Max Power Consumption | 1,600W/sqm |
| Ave. Power Consumption | 400W/sqm |
| Storage Temperature | -40℃ - +80℃ |
| Working Temperature | -20℃ - +60℃ |
| Blind Spot Rate | <1/10,000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof | IP65 |
| Operating Humidity | 10% - 95% |
| Control System | Synchronous, Asynchronous |
| Operating System | Win 98, Win2000, XP, 07.etc |
| Input Source | All Format (AVI, MPEG,VOB, RM, etc) |
| Certificate | CE, LVD, RoHS |
