2048x768mm P16 Led Panel , Portable Led Display With Meanwell Power Supply
Product Details
| Pixel Pitch: | 16mm | Driver IC: | MBI5153 |
|---|---|---|---|
| Brightness: | 7500nits | Refresh Rate: | 1920Hz |
| Power Supply: | G-energy | Cabinet Material: | Iron |
| Highlight |
stadium perimeter led display,stage background led screen |
||
Product Description

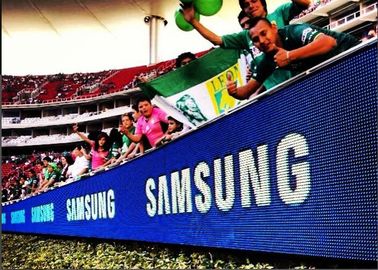

Portable P16 Sports Perimeter Led Display Screen Led Panel High Refresh Rate
Perimeter Led Display Features and advantages;
1. High Contrast: 4000: 1, which is a very high level to ensure a vivid image of our LED display screen system...
2. First-class LED chip: Supplied by COTCO/CREE/AXT/SILAN/TAI WAN LED lamps to ensure the long lift-time and high brightness of our LED display screen system
3. Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED display screen's investment.
4. Long-term Brightness: 9000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
5. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
6. Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
Pictures of cabinet
Why choose BAKOVISION?
1. more than 12 years experience in led display industry, we have most talented engineers to design best products for our clients;
2. "Customer first" is our belief. We promise to offer best products with good service for our clients;
3. Most competitive price make our led displays are afordable;
4. Strict processing procedures makes perfect product. Every production procedure, we have QC to check the quality;
5. Normally 2 years warranty, even we can offer 3 years warranty if our clients need;
6. For key business partners, we can offer financial credit;
7. Top quality machines to make top quality products;
Main Product:
Outdoor Rental Led Display
Indoor Rental Led Display
Outdoor Fixed Led Display
Indoor Fixed Led Display
Stage Rental Led Display
HD Led Display
Billboard Led Display
Transparent Led Screens
Flexible Led Display
Front service Led Display
Led Curtain Display
Mobile Led Screen
Sports Perimeter Led Displa
Taxi Led display
Led Moving message sign
Specification:
| Pixel Pitch | 16mm |
| Pixel Density | 3,906dots/sqm |
| Color Configuration | 1R1G1B |
| LED Encapsulation | DIP346 |
| Module Size | 256mm x 128mm |
| Module Resolution | 16dots x 8dots |
| Drive Duty | Static Constant Current |
| Brightness | >8,000nits |
| Viewing Distance | 16m - 160m |
| Viewing Angle | H: 120°, V: 70° |
| Refresh Rate | 2,000HZ |
| Frame Rate | 120frame/sec |
| Grey Grade | 256levels of Each Color |
| Color Grade | 16.7M |
| Power Input | AC110V/ 220V/ 50HZ |
| Max Power Consumption | 1,600W/sqm |
| Ave. Power Consumption | 400W/sqm |
| Storage Temperature | -40℃ - +80℃ |
| Working Temperature | -20℃ - +60℃ |
| Blind Spot Rate | <1/10,000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof | IP65 |
| Operating Humidity | 10% - 95% |
| Control System | Synchronous, Asynchronous |
| Operating System | Win 98, Win2000, XP, 07.etc |
| Input Source | All Format (AVI, MPEG,VOB, RM, etc) |
| Certificate | CE, LVD, RoHS |
