Product Details:
Payment & Shipping Terms:
|
Pitch: | 6mm | Led Type: | SMD |
---|---|---|---|
Cabinet Size: | 1280x960 | Brightness: | 1000nits |
IP Rate: | IP43 | Refresh Rate: | 1920Hz |
Highlight: | led perimeter advertising boards,stage background led screen |

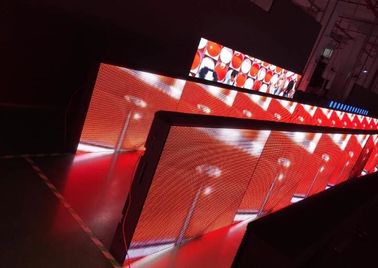

P10 Indoor Sports Perimeter LED Display For Basketball Club , Stadium Advertising Boards
Main features of P10 indoor perimeter LED diaplsy basketball stadium advertising display
1. Claw lock system to link cabinets to avoid visible gaps between cabinets;
2. Soft rubber mask facia to protect the screen and the players on impact;
3. Aliminum cabinets with light weight;
4. Synchronous and asynchronous control system together, the most stable performance;
5. Simple power and data connections, daisy chain from one cabinet to the next for fast connection;
6. Any cabinet in any position, no need for numbering cabinets and ensuring they are connected in the correct order;
7. Easy software set-up when cabinets are connected;
8. Wide viewing angle, 140 degree both horizontal and vertical;
9. Customizable for various sizes;
10. Excellent after-sales service, warranty of three years;
11. CE, RoHS, ISO certificate
Parameter | Unit | Value |
Pitch | mm | 6 |
Brightness | nits | 1,500 |
Color temperature | deg. K | 6,500 |
Viewing angle – Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
Viewing angle – Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
Panel weight | kg | 37 |
Panel width | mm | 1,152 |
Panel height | mm | 960 |
Panel depth | mm | 134 |
Panel area | sq. m. | 1.106 |
Panel material | Epoxy paint coated aluminum | |
Panel Mode | Quick Assembly Cabinet with Bracket | |
Panel protection | Soft mask | |
Ingress protection (front/rear) | IP | IP22/IP43 |
Operating temperature range | deg. C | -30 to +60 |
Humidity operating | RH | 10% ~ 90% |
Pixel type and configuration | R/G/B | 3in1 SMD |
Resolution per panel | 192×160 | |
Dot per panel | 30,720 | |
Dot per sq. meter | 27,777 | |
LED per sq. meter | 27,777 | |
Recommended minimum viewing distance | m | 4.56 |
Recommended best viewing distance | m | 6~60 |
Colors | 281 Trillion | |
Grey scale (linear) | Levels | 65,536 levels per color |
Brightness control | Levels | 100 |
Contrast ratio | 1,000:1 | |
Processing depth | bit | 16 |
Video frame rate | Hertz | 60 |
Display refresh rate | Hertz | 180~3,000 |
Input voltage (nominal) | VAC | 110 to 240 |
Input power frequency | Hertz | 50 to 60 |
Input power (max) | Watts/ cabinet. | 1,000 |
Input power (typical) | Watts/ cabinet. | 400 |
Lifetime (50% brightness) | Hours | ≥100,000 |
Red wavelength (dominant) | nm | 620~625 |
Green wavelength (dominant) | nm | 520~525 |
Blue wavelength (dominant) | nm | 470~475 |
Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | |
Data interconnection | UTP Cat 5/Optical Fiber | |
Mounting system | Stand on ground by bracket |
