CCC Transparent LED Curtain Display See Through Video Panel For Shopping Mall
Product Details
| Product Name: | Transparent Led Curtain Display | Pixel Pitch: | P2.6-5.6, P3.9-7.8 |
|---|---|---|---|
| Panel Dimention: | 1000*500mm/1000*1000mm | Transparency: | 78% |
| Refresh Rate: | 1920Hz | Horizontal Viewing Angle: | 160° |
| Vertical Viewing Angle: | 140° | Life Span: | 100,000 Hours |
| Warranty: | 2 Years | Usage: | Car 4s Shops, Conference, Exhibition Center, Chain Store, Shopping Mall, Squares |
| Highlight |
Transparent LED Curtain Display OEM,CCC Transparent LED Curtain Display,1920Hz Transparent LED Curtain Display |
||
Product Description
Transparent Led Curtain Display See Through Video Panel For Shopping Mall
BG Series BG.pdf
Clean and See Through Displaying, Innovative Transparent Technology
Ultra-Transparent
● Permeability of transparent LED curtain display is 60% -80%, translucent, ventilation, does not affect the lighting and line of sight, It’s very suitable for installing glass walls.
Customized is Available
● Modern transparent LED curtain display has all kinds of types, the structure is complex, the size isn’t the same, and the standard cabinet couldn’t meet the needs of all projects, BG series can be customized to the best product solution according to the real situation, to ensure the permeability of transparent LED curtain display, completeness of display and consistency.
Indoor Installation for Outdoor Viewing
● Easy to maintain, safe, and with fewer approval processes than outdoor advertising.
Energy saving, fast cooling
● Edge-lit LED encapsulation technology, small LED size, high brightness, low current, saving 30% energy than general SMD LED display.
Install Method
● Available to attach to glass wall directly
● Truss hanging and ground support are both available
● Steel frame is canceled during installation
Transparent LED Curtain Display SPECIFICATIONS
| BG-2.5-7.8 | BG-3.9-7.8 | BG-5-8 | BG-10 | BG-16 | |
| Physical Pitch | 2.5x7.8mm | 3.9x7.8mm | 5x8mm | 10.4x10.4mm | 16mm |
| Pixel Configuration | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Pixel Density | 50688pixels/m² | 32256pixels/m² | 25000pixels/m² | 9216pixels/m² | 3906pixels/m² |
| Module Dimensions (WxH)(mm) | 500x125 | 500x125 | 480x320 | 500x125 | 480x320 |
| Transparent LED Curtain Display Dimensions (WxH)(mm) | 1000x500 | 1000x500 | 960x640 | 1000x500 | 960x640 |
| NO. of Modules Per Panel(WxH) | 2x4 | 2x4 | 2x2 | 2x4 | 2x2 |
| Physical Resolution of Module(WxH) | 200x16 | 128x16 | 96x40 | 48x12 | 30x20 |
| Physical Resolution of Panel(WxH) | 400x64 | 256x64 | 192x80 | 96x48 | 60x40 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Single Cabinet Weight | <14kg/m² | <14kg/m² | <14kg/m² | <14kg/m² | <14kg/m² |
| Gray Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2000:01:00 | 2000:01:00 | 2000:01:00 | 2000:01:00 | 2000:01:00 |
| Average Power Consumption | 240W/m² | 180W/m² | 203W/m² | 140W/m² | 218W/m² |
| Max. Power Consumption | 700W/m² | 560W/m² | 670W/m² | 400W/m² | 650W/m² |
| Operating Temp/Humidity | -10ºC-60ºC/ 10%-60% | -10ºC-60ºC/ 10%-60% | -10ºC-60ºC/ 10%-60% | -10ºC-60ºC/ 10%-60% | -10ºC-60ºC/ 10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz | >1920Hz | >1920Hz |
| Brightness | 1000~4200 nits | 1000~4200 nits | >5500 nits | 1000~4200 nits | >5500 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| IP Rating(Front/Rear) | IP30 | IP30 | IP30 | IP30 | IP30 |
| Servicing | Rear | Rear | Rear | Rear | Rear |
| Scan Method | 1/11 Scan | 1/7 Scan | 1/6 Scan | 1/2 or 1/4 Scan | Static Scan |

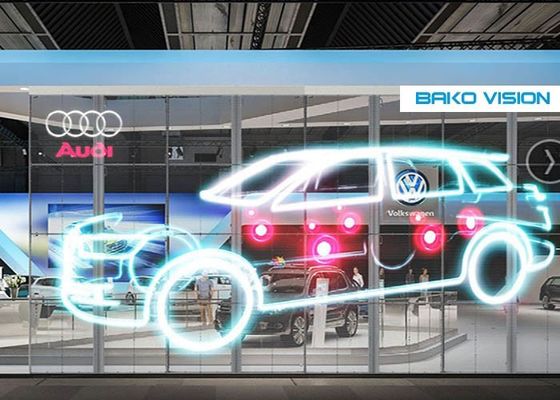

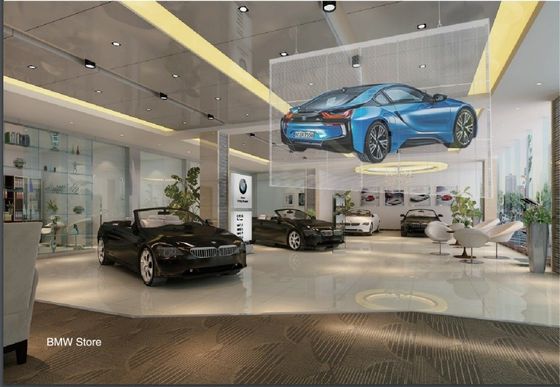

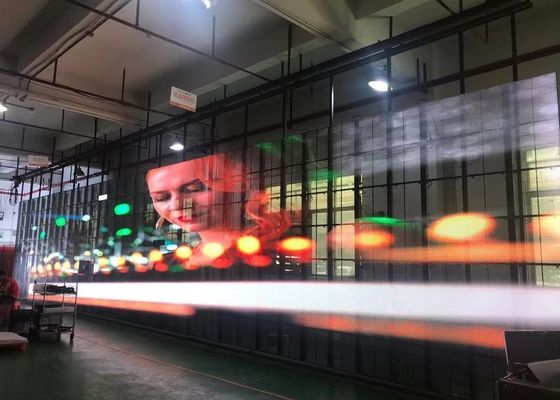

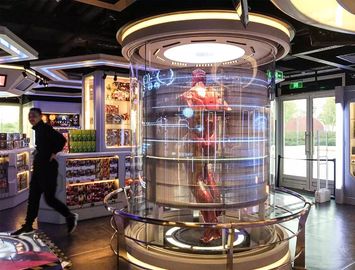

Transparent LED Screen Cases
After-Sales Service
We offer a 2-year warranty for our different transparent led curtain display screen series, 100,000 hours life span for the led lamps, and lifetime technical support with 7/24 phone answering service if you have any problem with our led screen.
Packaging and Shipping for Transparent LED Curtain Display
About Bako Vision
LED Vision Technology Limited , started in Shenzhen in 2005, a world-class manufacturer of technologically advanced LED displays, focusing on high-end professional customers in domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, and creative LED models besides standard LED screens.
BAKO VISION contains experienced team leaders and each of them has been working in the transparent LED curtain display industry over 10 years. All of our R&D, Production, Sales, and Technical Support depts….are running efficiently and smoothly through our great teamwork, moreover, delivering qualified products and offering timely pre-after service are also assured by the BAKO VISION team.
BAKO VISION product lines include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, and perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION's main markets are America, Europe, the Middle East, and Asia, all of our products are certificated by RoHS, CCC, CE, FCC, ETL, and UL. Standing firmly by quality, and winning firmly by proficient, in the past years of development, BAKO VISION's continuous growth and brand positioning are all relied on onto the long-term partnership with a variety of channel customers in over 120+ countries.
