Product Details:
Payment & Shipping Terms:
|
| Panel Material: | Aluminum | IP Rating: | IP45 |
|---|---|---|---|
| Peocessing: | 16bit | Contrast Ratio: | 2000:1 |
| Expected Lifetime: | 100,000 Hrs | Servicing: | Front/Rear |
| Refresh Rate: | 3,840 | ||
| High Light: | Advertising Seamless LED Curtain Display,90 Degree Column LED Curtain Display,IP45 LED Curtain Display Indoor |
||

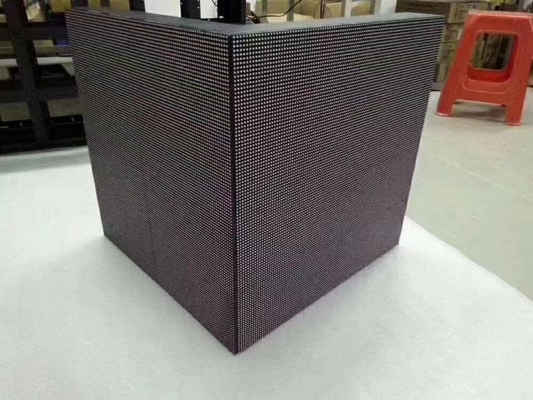

Full Color Indoor Advertising Seamless 90 Degree Right Angel Column LED Display
Product Advantages
| parameter | |
| Specificaion | Indoor P2.97 |
| Pixel pitch(mm) | 2.97 |
| Pixel Density(dot/m2) | 112,896 |
| Bending time | 1000 without break |
| LED configure | 1r1c1b |
| LED type | SMD2121 |
| Brightness(cd/n2) | 1100 |
| Drive mode | 28s |
| Colours | 281 trillion |
| Grayscale | 14 bit |
| Refresh Rate(HZ) | 1920 |
| Frame Rate(HZ) | 60 |
| Brightness Ajustment | manual/automatic/remote control |
| Color Temperatur | 9000±500k |
| Best Viewing Distanc | ≥3m |
| Module dimension(mm) | 250 X 250 |
| Module weight(kg/pc) | 0.3 |
| Mdoule Resolution(dot) | 84x84 |
| Cabinet Dimension | Randomly splicing |
| Working Voltage | AC 220 |
| Avg. Power Consumption (w/m2) | 400 |
| Max. power Consumption (w/m2) | 800 |
| Serive access | Front |
| Ip grade | IP 30 |
| Working Environment(℃/%RH) | -20~60℃/10~90%RH Without condensation |
| Storage Environment ( ℃/%RH) | -40~80℃/ 10~90%RH |
| Lifetime (H) | Lifetime (H) |
| Compliant Standard | CCC,CE |
About Product

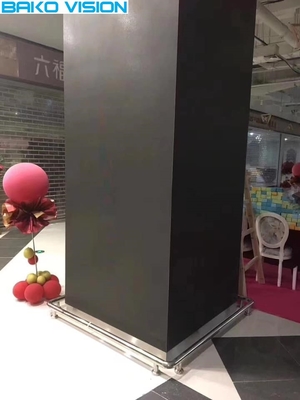

Install Situation

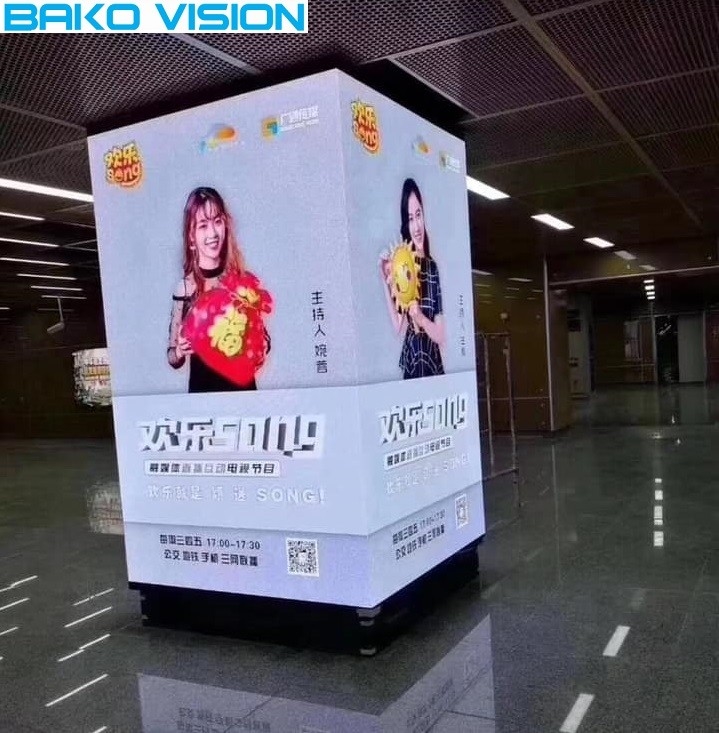

Case
FAQ:
Q1: The warranty of your LED dispaly ?
A: We offer 2-3 year warranty for our different led display screen series, 100,000 hours life span for the led lamps, and lifetime technology support with 7/24 phone answering service if you have any problem with our led screen.
Q2: Whats your payment term? How long it takes to delivery?
A: We normally accept T/T and L/C,and other payment options is negotiable for your convenience. A 30% deposit is needed in advance, and the rest 70% be paid before delivery. Our average lead time is 15 days.
Q3: What's the controlling system?
A: Our standard controlling system for this model is Novastar. Also support other controlling system such as Linsn, etc.
Packaing and shipping
About Us
►Rich experience: established in 2005; familiar with technical and material about LED display.
►Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
►Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
►Good quality:All products have passed CE, ROHS, FCC certification.
►Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.
