Outdoor Perminant Install LED Video Wall Advertising LED Display Screen IP65 Waterproof
Product Details
| Physical Pitch: | 8mm | Pannel Material: | Steel/Aluminum |
|---|---|---|---|
| Servicing: | Front/Rear | Viewing Angle: | 160°/140° |
| Refresh Rate: | ＞1920Hz | Contrast Ratio: | 2000:1 |
| Brightness: | ＞6500nits | IP Rating(Front/Rear): | IP65/IP54 |
| Highlight |
6500nits LED Video Wall,Waterproof Aluminum LED Video Wall,IP65 Advertising LED Display Screen |
||
Product Description
IP65 Waterproof Perminant Install LED Video Wall Advertising LED Display Screen for Outdoor
LED Billboard Quick Details:
1, Pixel Pitch: 8mm.
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Gray Scale: 16bits.
4, Cabinet size: Customized
5, Cabinet weight:40kg/Sqm.
6, Warranty: 2years.
7, Recommended minimum viewing distance: 10m.

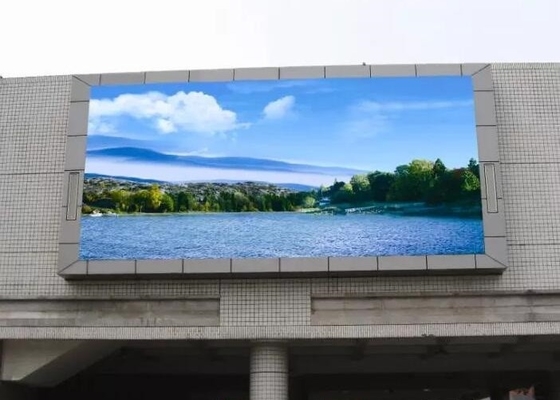

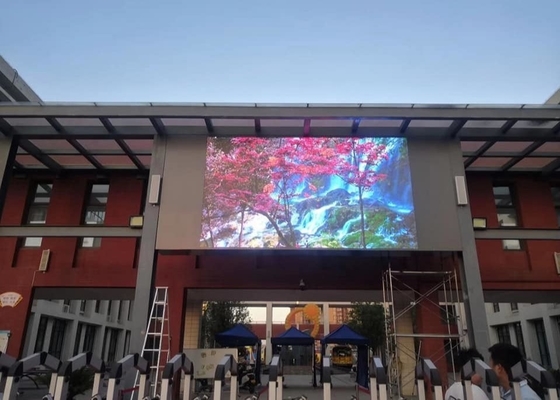

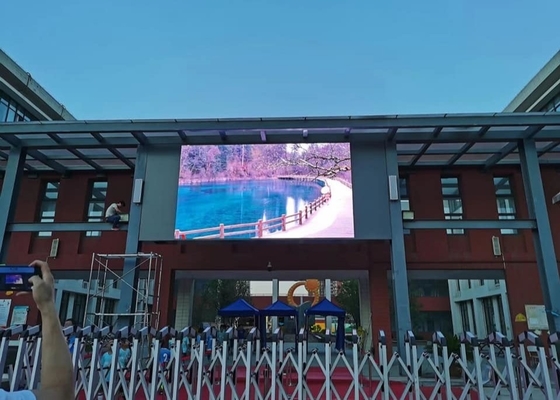

LED Billboard Application:
Bako Vision outdoor led billboards are widely installed on poles, single pole-mounted, dual pole-mounted, or tri-pole mounted, doing advertisement or broadcasting for airport, bus station, railway, government, school, shopping mall, public places, advertising media and so on.
LED Billboard Features:
1, High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
2, Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
3, High brightness from 4,000nits to 6,000nits, visible from every direction even face to direct sunshine.
4, Good heat dissipation with fans and using meanwell power supply, long lifespan.
5, High fresh rate up to 2,000Hz, high contrast to 2,000:1, vivid color.
6, With Bako Vision Energy Saving technique, the power consumption reduce from 360W/Sqm to 90W/Sqm. If you install a 10 Sqm screen and light it for 15 hours per day. Then there will consume 19,710 Kw/h one year if you use old product, then if you use our energy saving screen, then there only consume 4927.5 Kw/h one year, it saves 14782.5 Kw/h one year. This can save lots of your energy cost.
LED Billboard Specification:
| Physical Pitch | 8mm |
| Pixel Configuration | SMD3535 |
| Pixel Density | 15,625 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 320 x 320 |
| Panel Dimensions (mm) | 960 x 960 x 150 |
| NO. of Modules Per Panel (W x H) | 3 x 3 |
| Physical Resolution of Module (W x H) | 40 x 40 |
| Physical Resolution of Panel (W x H) | 120 x 120 |
| Panel Material | Steal / Aluminum |
| Weight (kg/Sqm) | 40 |
| Processing | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 360 W / Sqm |
| Max Power Consumption | 900 W / Sqm |
| Average Power After Energy Saving | 90 W /Sqm |
| Max Power After Energy Saving | 230 W /Sqm |
| Brightness | >5,000 nits |
| Refresh Rate | 1,920 Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 140° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Rear |
| IP Rating (Front/Rear) | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/10 Scan |

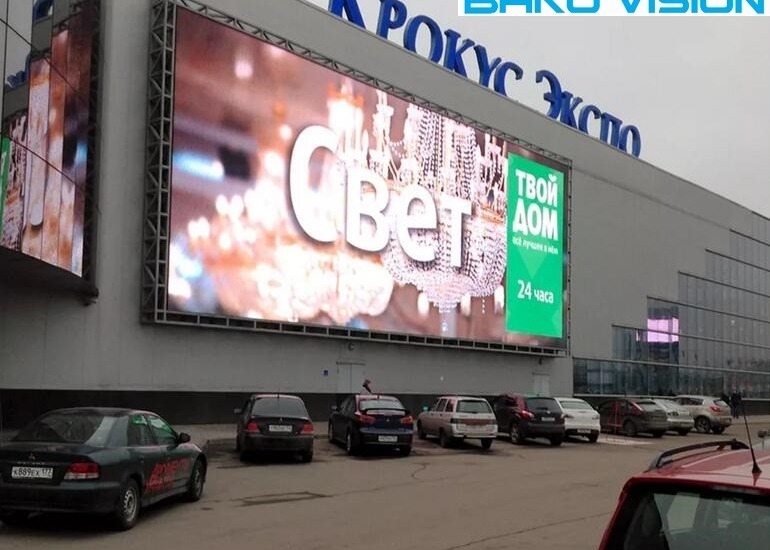

Energy Saving LED Billboard Case
Our services
Pre-production
- Get complete requirements of clients.
- To do a thorough analysis.
- Offer a most reasonable and scientific solution.
- Customized design.
In production
- Producing progress updating for clients.
- Particular installation CAD and design diagram for clients.
After service
- 2 years free maintenance.
- 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers.
- Free training for customers in factory.
- Our engineer online guide if needed.
