Product Details:
Payment & Shipping Terms:
|
| Panel Material: | Aluminum | Diaplay Thickness: | 35mm |
|---|---|---|---|
| Driving Method: | 1/32Dynamic Scan | Brightness: | >1,000nits |
| Servicing: | Front | Processing: | 16 Bit |
| Highlight: | Frameless Indoor LED Display Board,16bit Processing Indoor LED Display Board,Wheels Base LED Display Kiosk |
||
![]()
BP Series
Slim, Form Changeable
Digital Ads Poster
● Slim Appearance
● Multiple Installation and Form Changeable
● Various Signal Operations
Ultra Slim and Lightweight
● Ultra slim,Frameless,display thickness 33mm
● Net weight 28kg per set
![]()
Portable and Moveable
● Standing and stacking options
● Wheels for moving
![]()
Multiple and Fast Installation
● Variable installations, eg:hanging, wall mounting, splicing
● Optional accessories for fast installation
● Available for horizontal assembling as a whole big screen
Superior Electrical Features
● Refresh rate 3840Hz
● 160 degree viewing angle
● 4000:1 contrast ratio
● Max. / Avg. power 600W/200W
![]()
Mirror LED Poster Parameters
| BP-2-Pro | |
| Physical Pitch | 2.5mm |
| Pixel Configuration | SMD 2121 |
| Pixel Density | 157,464pixels/㎡ |
| Module Dimensions (W × H) (mm) | 280×210 |
| Whole Set Dimensions (W × H) (mm) | 571×1897×33 |
| No. of Modules Per Panel (W × H) | 2×9 |
| Physical Resolution of Module (W x H) | 108×81 |
| Physical Resolution of Whole Set (W x H) | 216*729 |
| Panel Material | Aluminum |
| Single Cabinet Weight | 28kg |
| Gray Scale | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000:1 |
| Average Power Consumption | 100 W / set |
| Max Power Consumption | 390 W / set |
| Scan Method | 1/27 Scan |
| Operating Temp/Humidity | -10°-60℃/10%-60% |
| Storage Temp/Humidity | -30°-60℃/10%-60% |
| Brightness | >1,000/3,500nits |
| Refresh Rate | ≥3,840 Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 140° |
| IP Rating (Front/Rear) | IP40 |
| Frame Rate | 60 fps |
| Expected Lifetime | 100,000 Hrs |
| Bezel | 4mm |

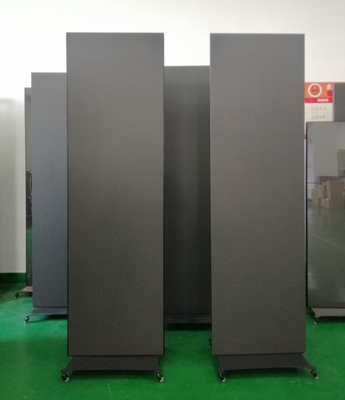

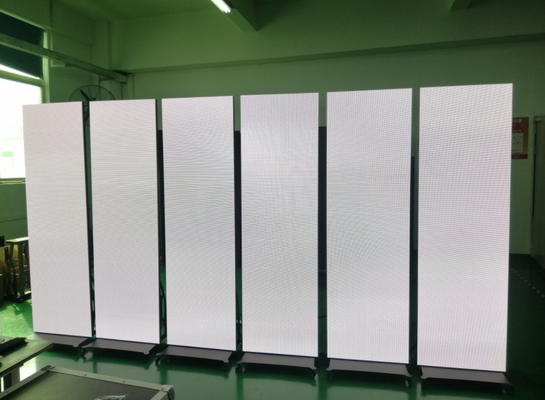

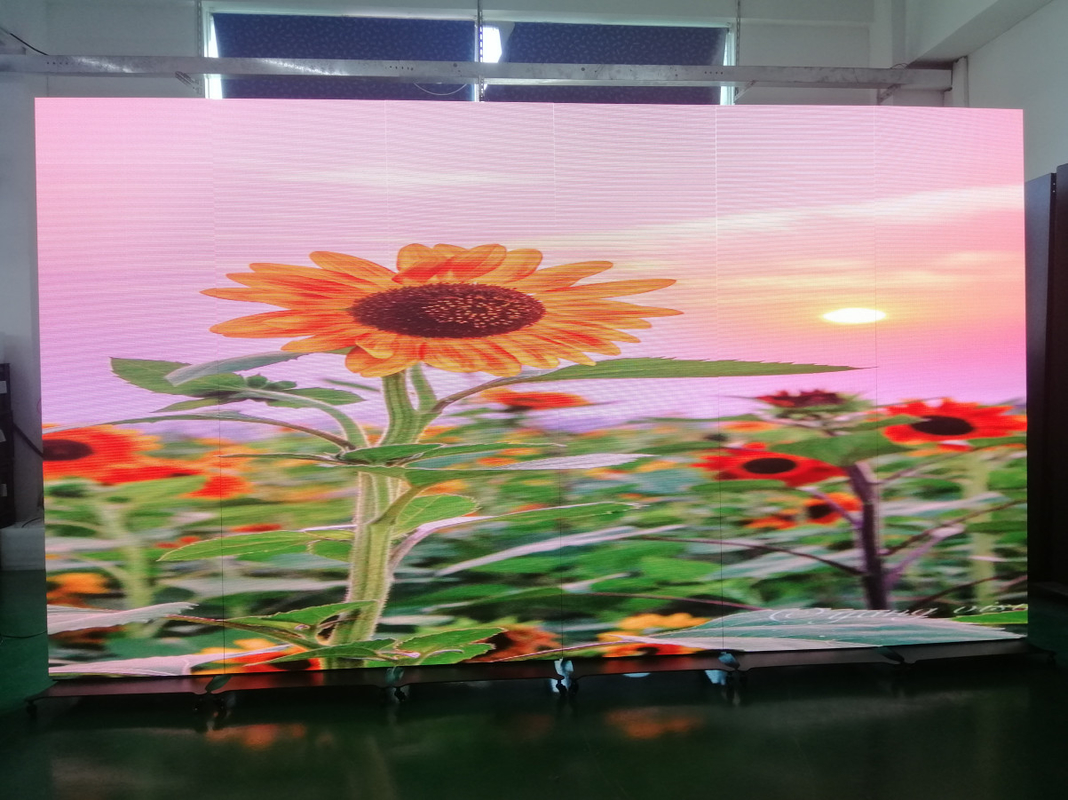

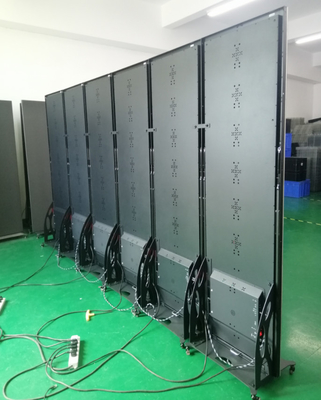

Portable Digital Signage Details
![]()
