Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design

Certification
China Shenzhen Bako Vision Technology Co., Ltd certification
China Shenzhen Bako Vision Technology Co., Ltd certification
Customer Reviews
I am very satisfied with the project of Bakovision, and I have decided to cooperate with them next time.

—— Mrs Emilia Scarlett

The production technology of Bakovision is top 5 in led display industry.

—— Mr Richard Thompson

When I visited the factory of Bakovision, I was impressed by their workshop environment.Trust Bakovision.

—— Mr Amos Aaron

The enthusiastic service from Bakovision peoples makes me feel that we are not just business partners but also friends.

—— Mrs Katherine Grady

The company are recommended by friends.They help me solved the problem.

—— Mr Baron Elvis

I am very happy to build a long-term cooperation with Bakovision. Their products have never let me down.

—— Mr Blithe Gavin

I'm Online Chat Now

Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design

Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design
Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design

Large Image :  Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design

Product Details:

Place of Origin: China
Brand Name: Bakovision
Certification: CE ETL FCC CCC
Model Number: BOF Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 sqm
Price: $1600/ Sqm
Packaging Details: Wooden case or flight case
Delivery Time: 15-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000 sqm/month
Detailed Product Description
Physical Pitch: 3.8mm Pannel Material: Aluminum
Servicing: Rear Refresh Rate: >1920Hz
Contrast Ratio: 2000:1 Brightness: >5500nits
High Light:

P3.8mm LED Advertising Board

,

1920Hz Outdoor LED Board

,

5500nits LED Billboard Advertising

Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design



Outdoor P3.8 Energy Saving Billboard Led Display , Cooling Screen without Fan design



Energy Saving LED Billboard Quick Details:
1, Pixel Pitch: 3.8mm
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Digital Process: 16bits.
4, Standard cabinet size: 960 x 960mm, cabinet weight:45kg/Sqm.
5, Warranty: 2years.
6, Recommended minimum viewing distance: 5m.

Energy Saving LED Billboard Application:
Bako Vision outdoor led electronic billboards are widely installed on poles, single pole-mounted, dual pole-mounted, or tri-pole mounted, doing advertisement or broadcasting for airport, bus station, railway, government, school, shopping mall, public places, advertising media and so on.

Energy Saving LED Billboard Features:
1, High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
2, Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
3, High brightness from 5,000nits to 6,000nits, visible from every direction even face to direct sunshine.
4, Good heat dissipation with fans and using meanwell power supply, long lifespan.
5, High fresh rate up to 2,000Hz, high contrast to 2,000:1, vivid color.
6,±10° adjustable, creative design to meet your requirement;

7, With Bako Vision Energy Saving technique, the power consumption reduce from 360W/Sqm to 90W/Sqm. If you install a 10 Sqm screen and light it for 15 hours per day. Then there will consume 19,710 Kw/h one year if you use previous product, then if you use our energy saving screen, then there only consume 4927.5 Kw/h one year, it saves 14782.5 Kw/h one year. This can save lots of your energy cost.



Energy Saving LED Billboard Specification:

Physical Pitch 3.8mm
Pixel Configuration SMD1921
Pixel Density 63,504 pixels/Sqm
Module Dimensions(W x H) (mm) 320 x 320
Panel Dimensions (mm) 960 x 960 x 150
NO. of Modules Per Panel (W x H) 3 x 3
Physical Resolution of Module (W x H) 84 x 84
Physical Resolution of Panel (W x H) 252 x 252
Panel Material Aluminum
Weight (kg/Sqm) 45
Processing 16bit
Colours 281 trillion
Contrast Ratio 2,000 : 1
Average Power Consumption 190 W / Sqm
Max Power Consumption 200 W /panel
Average Power After Energy Saving 600 W /Sqm
Max Power After Energy Saving 230 W /Sqm
Brightness >6,500 nits
Refresh Rate >1,920 Hz
Vertical Viewing Angle 160°
Horizontal Viewing Angle 140°
Expected Lifetime 100,000 Hrs
Servicing Front / Rear
IP Rating (Front/Rear) IP 65 / IP 54
Operating Temp/Humidity -20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity -20ºC - 50ºC / 10% - 90%
Scan Method 1/8 Scan

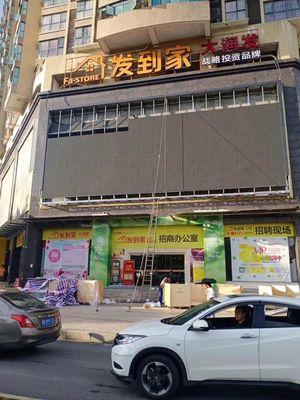

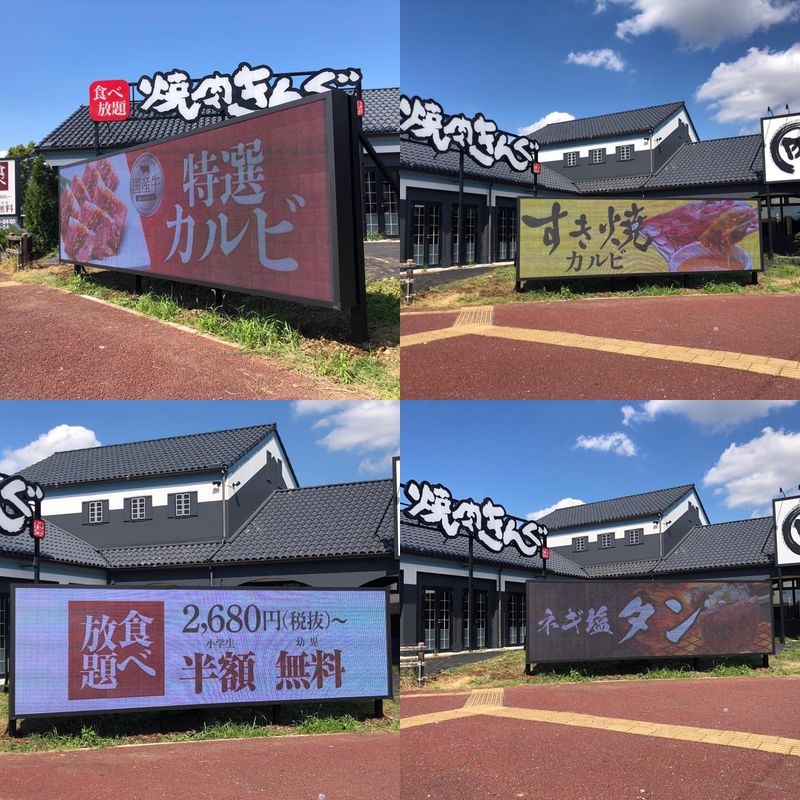

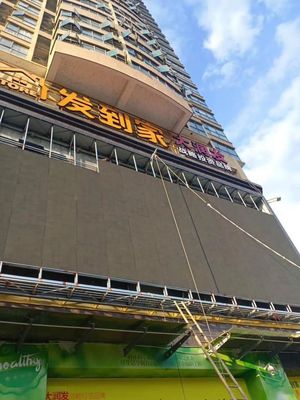

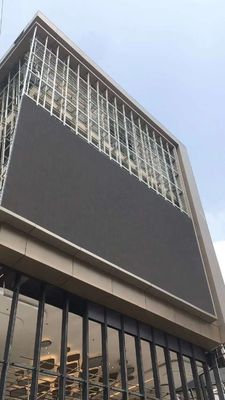

Energy Saving LED Billboard Case:



Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design 0
Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design 1Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design 2Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design 3Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design 4Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design 5Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design 6Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design 7Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design 8Outdoor P3.8mm LED Advertising Board Cooling Screen Without Fan Design 9
