Product Details:
Payment & Shipping Terms:
|
| Pixels: | 2.5mm | Warranty: | 2 Years |
|---|---|---|---|
| Brightness: | 900-1,200 Nits | Life Span: | 100000hours |
| Cabinet Size: | 480 X 480 Mm / 640 X 480mm | Cabinet Weight: | 7 / 13 Kgs/cabinet |
| Refresh Rate: | ＞3,840Hz | ||
| High Light: | 3840Hz HD LED Display,1200nits HD LED Display,2.5mm Indoor Fixed LED Display |
||
High Definition Indoor P2.5 Fixed HD LED Display For Advertising
High Definition P2.5 Indoor Fixed LED Display Screen for Advertising and Museum/Library
Led Screen Quick Details:
1, Pixel Pitch:2.5mm
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: 480 x 480mm / 640 x 480mm
5, Recommended minimum viewing distance: 3m.
6, Warranty: 2 years.
Features:
1. Seamless Splicing
The cabinet tolerance is controlled within 0.05mm, perfect for seamless splicing, and the cabinet is lightweight and easy to install.
2. Fast Assembling & Disassembling
Fast lock system,no tools are required for installation of screen.
3. Easy Maintenance
Front maintenance - modules can be taken out from front side and fixed without screws.
4. Easy Ground Installation
Special structural design that helps you to install the screen on ground easily.
5. High Refresh
High refresh rate enables LED screen to be excellently exposed to live TV shows and cameras.
6. Convenient and Strong Locks
Lock operation is easy enough to fasten installation and dismantle. It can burden 10 meters for vertical hanging and makes sure of seamless splicing.
Rental Screen Specification:
| UHD-2.2 | |
| Physical Pitch | 2.5MM |
| Pixel Configuration | SMD1921 |
| Pixel Density | 160,000 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 240 x 240mm |
| Panel Dimensions (mm) | 480 x 480mm / 640 x 480mm |
| NO. of Modules Per Panel (W x H) | 2 x 2 / 3 x 2 |
| Physical Resolution of Module (W x H) | 96 x 96 |
| Physical Resolution of Panel (W x H) | 192 x 192 / 288 x 192 |
| Panel Material | Die-Casting |
| Single Cabinet Weight | 6 kg/panel |
| Processing | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000 : 1 |
| Average Power Consumption | ≤300 W/㎡ |
| Max Power Consumption | ≤600 W/㎡ |
| Brightness | 600-800 nits |
| Refresh Rate | ≥3,840 Hz |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | ≥100,000 Hrs |
| Operating Temp/Humidity | -20℃ - 50℃ / 10℃ - 90℃ |
| Storage Temp/Humidity | -40℃ - 60℃ / 10℃ - 85℃ |
| IP Rating (Front/Rear) | IP 40 / IP 21 |
| Scan Method | 1/24 Scan |
| Certification | CCC, CE, ETL,TUV |

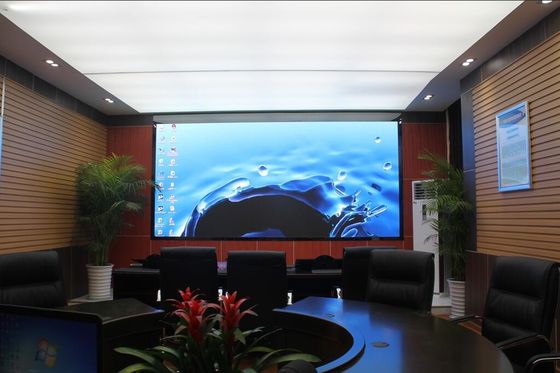

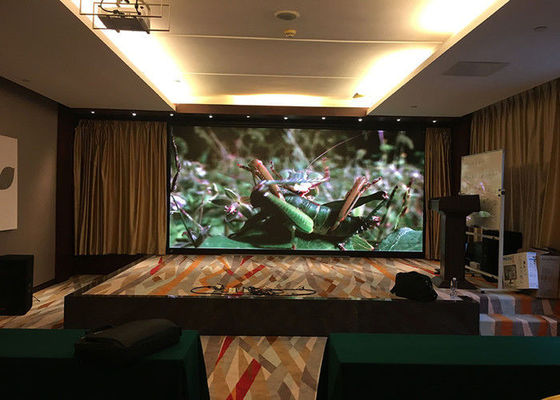

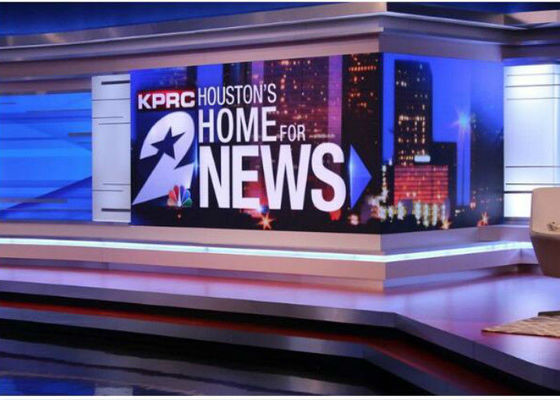

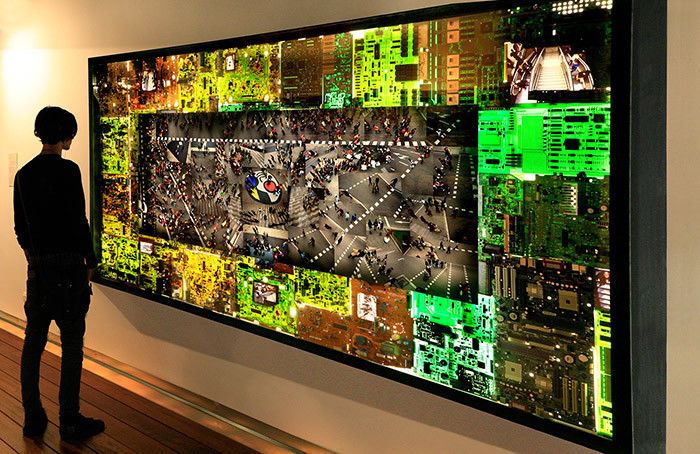

LED Screen Case
Package
We use carton with foam sheet and cabinet with wooden case/flight case.
We will choose the most practical package as to customer's requirements.
1) Carton with foam plate / EPE
2) Neutral packaging without logo
3) Anti-shaking wooden case package for sea shipment.
4) Flight case package with convenient transportation.
5) Customized package can be designed and made.
