Indoor Front Access Magnetic Module LED Screen With Steel Cabinet Wall Mounted For Mall

Brand Name: Bakovision
Model Number: BIR Series
Place of Origin: China
Certification: CE ETL FCC RoHS ISO CCC
Minimum Order Quantity: 1㎡
Price: $450/㎡
Supply Ability: 10,000 sqm/month

Product Details


LEDs: SMD2121 Pixel Pitch: 4mm
Servicing: Front/Rear Viewing Angle: 160°/140°
Refresh Rate: >1920Hz Contrast Ratio: 4000:1
Highlight

FCC RoHS Indoor Fixed LED Display

,

281 trillions Indoor Fixed LED Display

,

SMD2121 Indoor Fixed Screen

Product Description

Indoor Front Access Magnetic module LED screen with steel cabinet Wall mounted for Mall

Indoor Fixed Screen Wall Quick Details:
1, Pixel Pitch: 4mm
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: Customized, weight: 28kg/m2.
5, Recommended minimum viewing distance: 5m.
6, Warranty: 2 years.

Fixed Screen Description :
Bako Vision indoor LED Wall include permanent installation indoor electronic led display, the pixel various from 3mm, 4mm, 5mm, 6mm.You can use it as billboard or Led Wall in Concert hall or shop and so on.

LED Fixed Video Wall Features:

1, High brightness from 900nits to 1,200nits, visible from every direction indoor.
2, SMD LEDs ensure large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3, Cabinet design lightweight, Front access can be easy to install and maintanence.
4, Digital process: 16bits, High contrast ratio 4000:1, vivid color.
5, You can choose front service or back service, it's easy for maintenance

Fixed Led Video Wall Specification:

Physical Pitch 4mm
Pixel Configuration SMD2121
Pixel Density 62,500 pixels/Sqm
Module Dimensions(W x H) (mm) 256 x 128
Panel Dimensions (mm) 1024 x 768
NO. of Modules Per Panel (W x H) 4 x 6
Physical Resolution of Module (W x H) 64 x 32
Physical Resolution of Panel (W x H) 256 x 192
Panel Material Steel / Aluminum
Scan Method 1/16 Scan
Gray Scale 16bit
Colours 281 trillion
Contrast Ratio 4,000 : 1
Average Power Consumption 120 W /Sqm
Max Power Consumption 400 W /Sqm
Operating Temp/Humidity -10ºC - 60ºC / 10% - 60%
Storage Temp/Humidity -30ºC - 60ºC / 10% - 60%
Refresh Rate >1,920Hz
Brightness 900-1,200nits
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Expected Lifetime 100,000 Hrs
Servicing Front / Rear
IP Rating (Front/Rear) IP 21

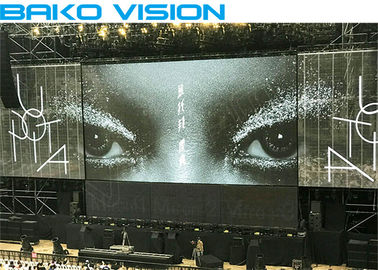

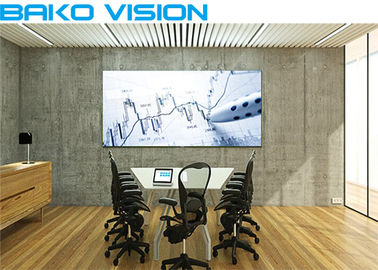

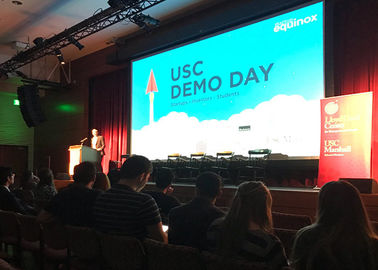

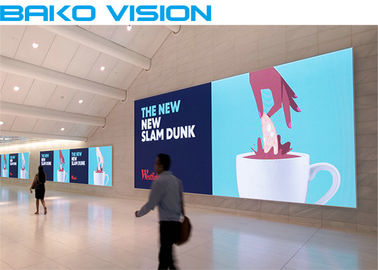

Fixed Led Video Wall Case:

Indoor Front Access Magnetic Module LED Screen With Steel Cabinet Wall Mounted For Mall 0



FAQ:

Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.

Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q8: How can I get technology support?
A:1,We will train in our factory and send video for showing. The training include system use, system maintenance and equipment protection.

Product Highlights

Indoor Front Access Magnetic module LED screen with steel cabinet Wall mounted for Mall Indoor Fixed Screen Wall Quick Details: 1, Pixel Pitch: 4mm 2, Full colors: 281trillions. 3, SMD, Wide viewing angle: 160°/ 140°. 4, Standard cabinet size: Customized, weight: 28kg/m2. 5, Recommended minimum ...
