Product Details:
Payment & Shipping Terms:
|
| Led Module Size: | 320x160mm | Leds: | Nationstar |
|---|---|---|---|
| Power Supply: | Meanwell | Driver IC: | ICN2038S |
| Led Type: | DIP546 | ||
| High Light: | P5 Mobile LED Screen,P5 Trailer Mounted Led Screen,DIP546 Mobile LED Screen |
||

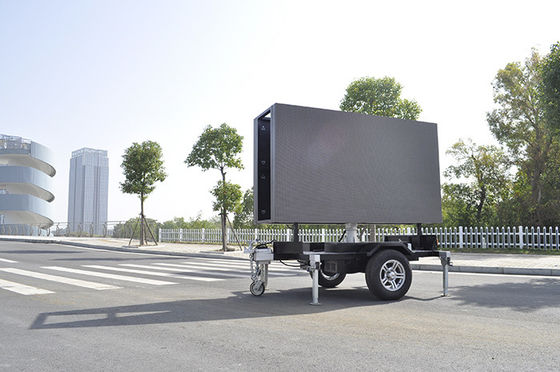

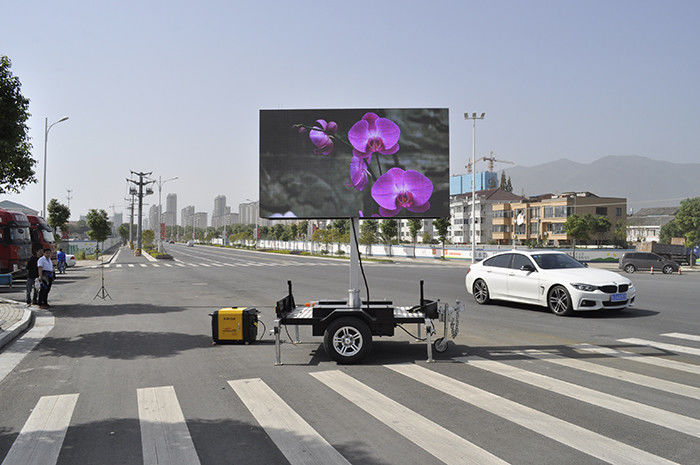

Double sides P5 outdoor led trailer truck display with hydraulic system
P5 outdoor led trailer truck display Features:
1. Competitive prie: Less than 10,000usd per unit;
2. Moving ads available in every corner of city;
3. Easy operation, only 1 person can handle all staff
4. High brightness, refresh pictures available;
P5 outdoor led trailer truck display Specs
<
| BOF-B-5 | |
| Physical Pitch | 5 mm |
| Pixel Configuration | SMD 2727 |
| Pixel Density | 40,000 pixels/m² |
| Module Dimensions (W × H) (mm) | 320 × 160 |
| Panel Dimensions (mm) | 960 × 960 × 150 |
| NO .of Modules Per Panel (W × H) | 3 × 6 |
| Physical Resolution of Module (W × H) | 64 × 32 |
| Physical Resolution of Panel (W × H) | 192 × 192 |
| Panel Material | Steel / Aluminum |
| Weight(m²) | 65/45 |
| Processing | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 36 W/m² |
| Max Power Consumption | 900 W/ m² |
| Brightness | ≥6500 nits |
| Refresh Rate | ＞1,920 Hz |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing angle | 140° |
| Expected Lifetime | 100, 000 Hrs |
| Servicing | Rear |
| IP Rating | IP 65 |
| Operating Temp/Humidity | -20℃- 50℃ / 10%-90% |
| Storage Temp/Humidity | -20℃-50℃ / 10%-90% |
| Scan Method | 1/8 Scan |
Why choose us?
A1.1: Company Info: the team of bakovision have been in LED industry for almost 10 years, focusing on the led display, and have completed more than 2000 projects home and aboard,
thus we are fully experienced to provide led display solutions.bakovisiont are focusing and professional!
A1.2: R&D Team: bakovision have the R&D team with more than 8 years’ experience, and launch new products according to the customers ‘needs every year or even each quarter.
A1.3: Products: there are indoor and outdoor fixed led display screen, indoor and outdoor rental led display, creative led display such as advertising led poster, soft led display and led curtain mesh,
they are widely used for shopping mall, stage, events, conference room, church etc. meeting the demands of message display and delivery.
A1.4: Manufacturing: bakovision have strict QC control and manufacturing management process, which enable our products high quality and stable working performance.
A1.5:Service: bakovision have specialized technicians before and after sales. And strong marketing team to offer you the solutions 7/24 anytime.
Q2: What’s your payment term? How long it takes to delivery?
A3: T/T and L/C, 30% deposit in advance, and balance 70% before shipment.
Q3: What is the control system?
A3: We use Nova and Linsn control system.
Q4: How can you ensure your led display product quality?
A4: the team of bakovision have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
