Payment & Shipping Terms:
|Pixel Pitch:||10 Mm||Tube Chip Color:||Full Color|
|IP Rating:||IP67||Scanning Mode:||1/4 Scan|
|Brightness:||5500-7500 CD/M2||Module Pixel Resolution:||40dots*20dots / 32dots*16dots|
|Module Dimension:||960*960mm /1024*1024mm||Cabinet Size:||960mm*960mm*175mm|
|Drive Type:||Constant Drive||Package Mode:||SMD 3535|
|Use Voltage:||AC 90-240V||Controller:||Nova Star /Linsn /Huidu|
Nationstar Outdoor Fixed LED Display,
IP67 Outdoor Fixed LED Display,
SMD 3535 Outdoor LED Digital Signage
Full Color Nation Star SMD Outdoor Waterproof LED Display Digital Signage Screen
1. SMD led encapsulation confirm wide view distance and good uniformity
2. High brightness, good waterproof IP65, anti-corrosion, anti-rust, long life span>100000hours
3. High pixel density, high resolution and high definition, perfect display vision
4. Lower power consumption, good heat dissipation, low noise created.
5. Cabinet with locks, connectors, easy and quick to assemble without tools in short time
6. Widely used for commercial display, advertising, stage background, mobile display. traffic display,sports led display etc.
|Module Parameter||Item||Specification Parameter|
|Pixel Pitch, Resolution rate, size, weight||10mm, 32*16 Dots, 320*160mm|
|Pixel color, Pixel LED||1R1G1B, SMD3535|
|Working voltage, Module Power||DC5V, 48W|
|Driving IC, Driving way||MBI5124, 1/2S|
Outdoor Fixed Installation LED Display Parameters:
|Physical Pitch||4 mm||5 mm||6.67 mm||8 mm|
|Pixel Configuration||SMD 1818||SMD 2727||SMD 2727||SMD 3535|
|Pixel Density||62,500 pixels/m²||40,000 pixels/m²||22,376 pixels/m²||15,625 pixels/m²|
|Module Dimensions (W × H) (mm)||320 × 160||320 × 160||320 × 160||320 × 160|
|Panel Dimensions (mm)||960 × 960 × 150||960 × 960 × 150||960 × 960 × 150||960 × 960 × 150|
|Physical Resolution of Module (W × H)||80 × 40||64 × 32||48 × 24||40 × 20|
|Physical Resolution of Panel (W × H)||240 × 240||192 × 192||144 × 144||120 × 120|
|Average Power Consumption||360 W/m²||36 W/m²||360 W/m²||360 W/m²|
|Max Power Consumption||900 W/ m²||900 W/ m²||900 W/ m²||900 W/ m²|
|Average Power After Energy Saving||-||-||90 W/ m²||90 W/ m²|
|Max Power After Energy Saving||-||-||230 W/ m²||230 W/ m²|
|Brightness||≥6500 nits||≥6500 nits||≥6500 nits||≥6500 nits|
|Refresh Rate||>1,920 Hz||>1,920 Hz||>1,920 Hz||>1,920 Hz|
|Horizontal Viewing Angle||160°||160°||160°||160°|
|Vertical Viewing angle||140°||140°||140°||140°|
|Expected Lifetime||100, 000 Hrs||100, 000 Hrs||100, 000 Hrs||
100, 000 Hrs

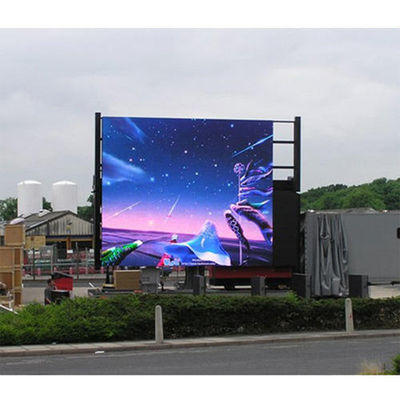

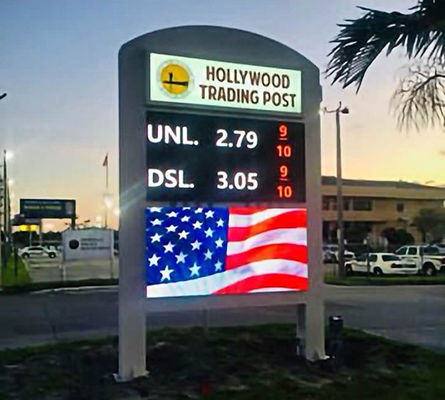

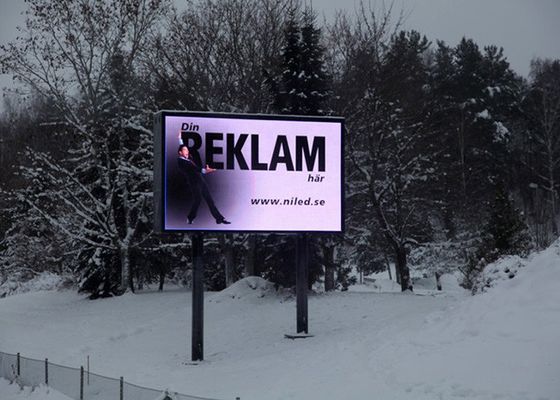

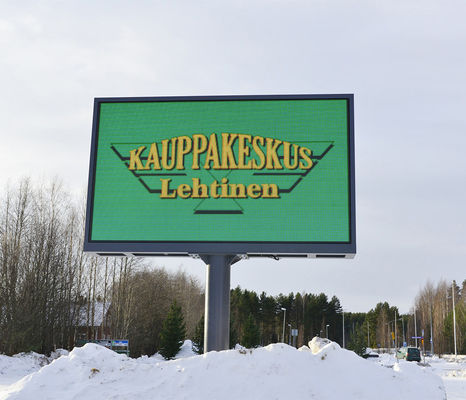

Outdoor Fixed Installation LED Display Cases:
Outdoor Fixed Installation LED Display Features:
High refresh rate: With NOVA control system,no scanning line when photographed.
High gray level: 256 RGB each, display 16.7M colors, vivid and perfect video effect.
High resolution: The most apparent features of the new generation of LED display.
Good color uniformity:With brand Lamp Nationstar and high refresh MBI5124 IC.
High Brightness: 6000-8000cd/m2, brightness automatically adjusted.
High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time.
Long life span: over100,000hours, warranty at least 2 years.
You need = We design: Provide Personal- Customized led display offer.
We have the best competitive price at the market, also have the same even better quality
From material to finished product, from design to produce, we control all steps,that's the guarantee of the quality and reliability
Better service at same situation, better cooperation at same service.
Best quality, high consistency, big viewing angle, can repair each led lamps
Indoor fixed LED screen: P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P3, P3.9, P4, P4.8, P5, P6
Outdoor fixed LED screen: P5, P6, P8, P10
Outdoor rental LED screen: P3.9, P4.8, P5, P6, P6.25, P8, P10
Small pitch LED screen: P1.6, P1.9
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P8, P10
LED poster player: P2.5, P3
For iron cabinet LED display screen of indoor or outdoor, we usually use wooden case to packing
For aluminum cabinet of LED rental stage display, we usuallu use flight case to packing
One wooden case including 2 cabinets, one flight case including 6 cabinets
By air or sea, FOB shenzhen
UPS/DHL/FedEx/Express(door to door)and so on
Within 20 days counting from 30% prepayment
T/T(30% deposit, the remained 70% payment made before factory shipment )
Western union/paypal/L/C and so on
We offer 2 years warranty, and our products have passd CE, RoHS, FCC certificate, All products have age testing, shaking testing, waterproof testing, In generally, Module test is 24h, entire screen test is 72h, A series of testing before delivery can ensure transportation and quality products.
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
Q1. Can I have a sample order for LED Display?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 10-15days for order quantity more than
Q3. Do you have any MOQ limit for LED light order?
A: Low MOQ, 1PC for sample checking is available
Q4. Is it OK to print my logo on LED light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Shenzhen Bako Technology Co. Limited is a full range manufacturer and LED display solutions provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6, 000m² production state of the art facility to cover international demands. We provide a one-stop shopping in the design, production, and distributions of LED displays and solutions for our customers domestically and globally.
Our products include ranges of indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sports, advertisement, concerts, shopping malls, stadiums, exhibitions or any other indoor and outdoor events that comes to your imagination.
We strictly follows ISO9001: 2008 quality management system and passed CE, FCC, UL, RoHS, CCC etc. All of these factors ensure high quality LED products and effective services.
We keep the company culture ``Professional, Concentration, Focus`` aimed at LED. With the development of LED technology and the perfervid competition in the LED field.
