High Brighness IP65 Waterproof Outdoor Rental LED Display For Performance

High Brighness IP65 Waterproof Outdoor Rental LED Display For Performance
High Brighness IP65 Waterproof Outdoor Rental LED Display For Performance High Brighness IP65 Waterproof Outdoor Rental LED Display For Performance High Brighness IP65 Waterproof Outdoor Rental LED Display For Performance High Brighness IP65 Waterproof Outdoor Rental LED Display For Performance

Large Image :  High Brighness IP65 Waterproof Outdoor Rental LED Display For Performance

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: CE,CCC,FCC,ETL,RoHS,EMC
Model Number: BOR Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight Case
Delivery Time: 20-25days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Physical Pitch: 4.81mm Panel Material: Die-casting Aluminium
Module Size:: 250mm*250mm LED Chip: Nationstar
IP Rating:: IP65 Waterproof Life Span: 100,000 Hrs
High Light:

IP65 Waterproof Outdoor Rental LED Display

,

4.81mm Pitch Outdoor Rental LED Display

,

65536 pixels outdoor rental led screen

Outdoor Stage High Brighness IP65 Waterproof LED Display Screen for Performance

Outdoor Rental LED Display.

The best assistant of outdoor advertising. Suitable for stage, bank, promotion, exhibition,shopping mall, highway, station, KTV, stadium, airport and all outdoor places.


Product Features:



1. High quality,Advanced and proper system design,cost-effective.Display effect stable, can be completes fast fixed installation.

2. After waterproof test all the cabinets can ensure waterproof properties. The cabinet upper and lower with positioning holes and positioning column.

3. Independent rear cover and lock design, both moisture-proof,dustproof, and can facilitate fast debugging and maintenance cabinet.

4. Display mode:Right and left movement,zola curtain,right in the tabernacle of the congregation,pull open,blinking,namely show and so on.

5.Through program editor software,the words,images and videos can be editted just by clicking the mouse.The edited content is stored in the controller card,and will be broadcasted successively according to the program sheet automatically.




Parameter



  BOR-III-3 BOR-III-4
Physical Pitch 3.91mm 4.81mm
Pixel Configuration SMD1921 SMD2727
Pixel Density 65,536 pixels/m² 43,264 pixels/m²
Module Dimensions(W*H)(mm) 250*250/250*500 250*250/250*500
Panel Dimensions(mm) 500*500*80/500*1000*80 500*500*80/500*1000*80
NO. of Modules Per Panel (W*H) 2*2 2*2
Panel Material Die-Casting Aluminum Die-Casting Aluminum
Colors 281Trillion 281Trillion
Processing 16 Bit 16 Bit
Physical Resolution of Module(W*H)(mm) 64*64 52*52
Physical Resolution of Panel(W*H)(mm) 128*128/128*256 104*104/104*208
Single Cabinet Weight 9/15kg/ panel 9/15kg/ panel
Average Power Consumption 75/150W/panel 75/150W/panel
Max Power Consumption 225/550W/panel 225/550W/panel
Brightness >60,00nits >60,00nits
Viewing Angle H:160°/ V:140° H:160°/ V:140°
Expected Lifetime 100,000 Hrs 100,000 Hrs
Servicing Front/Rear Front/Rear
IP Rating(Front/Rear) IP 65/IP54 IP 65/IP54
Max Stacking 20/10 20/10
Max Hanging 20/10 20/10
Refresh Rate >1,920 Hz >1,920 Hz
Contrast Ratio 4000:1 4000:1

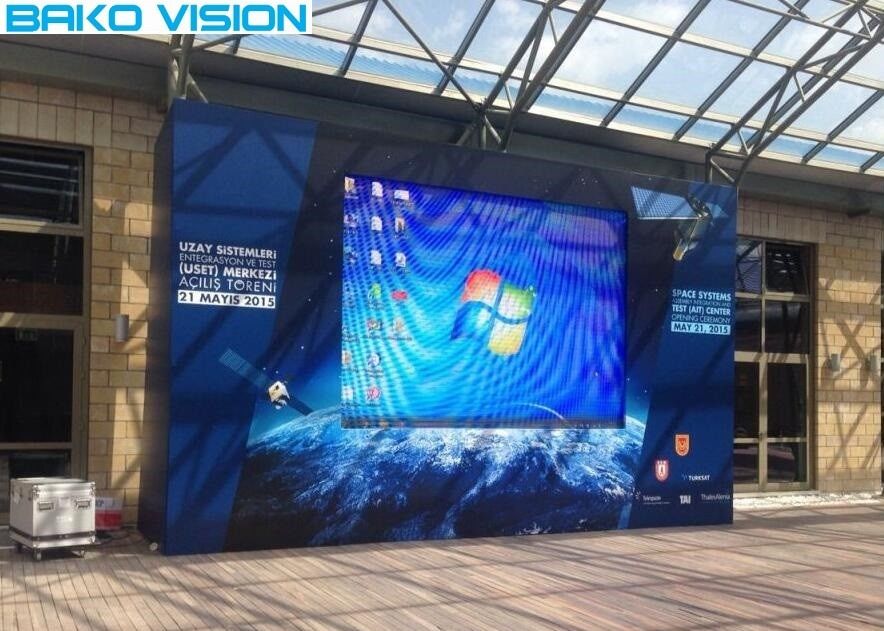

Products Image



1. The order of the left-mounted screen body is as follows: from low to high, from the middle to the sides;
2. The number of a main power supply conventional carrying case is 15PCS, and it cannot be plugged in and out;
3. A network cable has a maximum load of 640,000 points, and the length of the network cable is preferably within 50m.



High Brighness IP65 Waterproof Outdoor Rental LED Display For Performance 0




Fast refreshing, to swtich without water wave, no flash line, picture display is high definition, the picture display is the best effect. When comparing with ordinary LED display, Bako Vision's display doesn't have ghosting phenomenon, picture is clean and distinct, in addition, it is fast refreshing ratio without water wave. WHAY Display is to adopt high quality LED, to match black protection shade, the contrast ratio is 4000:1, which makes the picture display be more clear and colorful.


High Brighness IP65 Waterproof Outdoor Rental LED Display For Performance 1

Better Grey Scale Grade

Stable and clear images, excellent dynamic showing, without scanning line, and the effect will be more nature if play point-to-point output image.

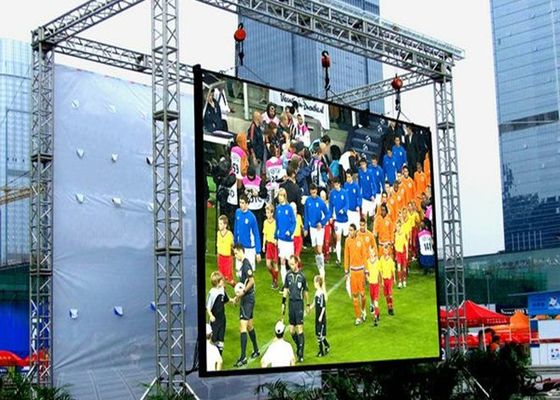

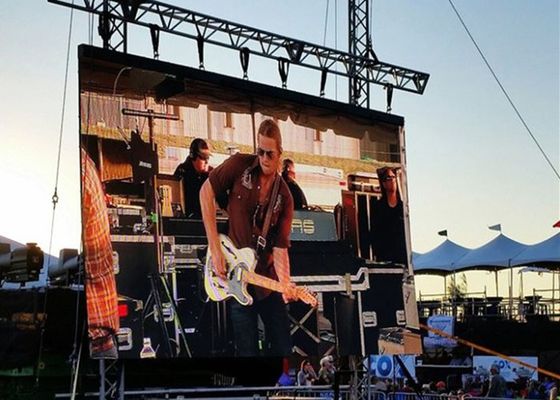

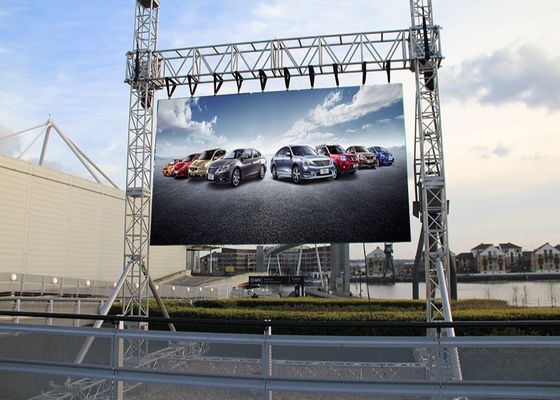

Application Case:
Widely used for shopping malls, entertainment venues, wedding hall, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, outdoor stadium, and a variety of public facilities and etc.




About us

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.


 High Brighness IP65 Waterproof Outdoor Rental LED Display For Performance 2


 Why choose BAKOVISION?


1. Strict processing procedures makes perfect product. Every production procedure, we have QC to check the quality;
2. more than 10 years experience in led display industry, we have most talented engineers to design best products for our clients;
3. Top quality machines to make top quality products;
4. Most competitive price make our led displays are afordable;
5. "Customer first" is our belief. We promise to offer best products w
ith good service for our clients.
