High Brightness P5mm Indoor Fixed LED Display Wall Panel For Hall Bar

High Brightness P5mm Indoor Fixed LED Display Wall Panel For Hall Bar
High Brightness P5mm Indoor Fixed LED Display Wall Panel For Hall Bar High Brightness P5mm Indoor Fixed LED Display Wall Panel For Hall Bar High Brightness P5mm Indoor Fixed LED Display Wall Panel For Hall Bar High Brightness P5mm Indoor Fixed LED Display Wall Panel For Hall Bar

Large Image :  High Brightness P5mm Indoor Fixed LED Display Wall Panel For Hall Bar

Product Details:

Place of Origin: China
Brand Name: Bakovision
Certification: CE ETL FCC CCC
Model Number: BF Series

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Wooden case or flight case
Delivery Time: 15-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000 sqm/month
Detailed Product Description
Physical Pitch: 5mm LEDs: SMD2121
Expected Lifetime: 100,000Hrs Weight: 8.2kg/m²
Servicing: Front Foldable Angle: 360°
Refresh Rate: >1920Hz Brightness: >1000nits
Pixel Density: 111,111 Pixels/㎡ Module Dimensions: 240 X 120mm
High Light:

P5mm Indoor Fixed LED Display

,

1200 nits Indoor Fixed LED Display

,

1200 nits LED Wall Panel

P5 Indoor Fixed High Brightness LED Display LED Wall Panel for Hall and Mar

Fixed Led Video Wall Quick Details:
1, Pixel Pitch: 5mm.
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: Customized, weight: 40kg/m2.
5, Recommended minimum viewing distance: 5m.
6, Warranty: 2years.

Fixed Video Wall Description :
Bako Vision indoor LED Wall include permanent installation indoor electronic led display, the pixel various from 3mm, 4mm, 5mm, 6mm.You can use it as billboard or Led Wall in Concert hall or shop and so on.

Indoor Led Video Wall Features:

1, High brightness from 900nits to 1,200nits, visible from every direction indoor.
2, SMD LEDs ensure large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3, Cabinet design lightweight, side handle for easy carrying and assemble job.
4, Meanwell brand power supply, saving energy and high efficiency.
5, Digital process: 16bits, High contrast ratio 4000:1, vivid color.
6, You can choose front service or back service, it's easy for maintenance
7, Customized cabinet size fit different status

Fixed Led Video Wall Specification:

Physical Pitch 5mm
Pixel Configuration SMD2121
Pixel Density 40,000 pixels/Sqm
Module Dimensions(W x H) (mm) 320 x 160
Panel Dimensions (mm) 1280 x 960
NO. of Modules Per Panel (W x H) 4x 6
Physical Resolution of Module (W x H) 64 x 32
Physical Resolution of Panel (W x H) 256 x 192
Panel Material Steel / Aluminum
Scan Method 1/16 Scan
Gray Scale 16bit
Colours 281 trillion
Contrast Ratio 4,000 : 1
Average Power Consumption 120 W /Sqm
Max Power Consumption 400 W /Sqm
Operating Temp/Humidity -10ºC - 60ºC / 10% - 60%
Storage Temp/Humidity -30ºC - 60ºC / 10% - 60%
Refresh Rate >1,920Hz
Brightness 900-1,200nits
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Expected Lifetime 100,000 Hrs
Servicing Front / Rear
IP Rating (Front/Rear) IP 21

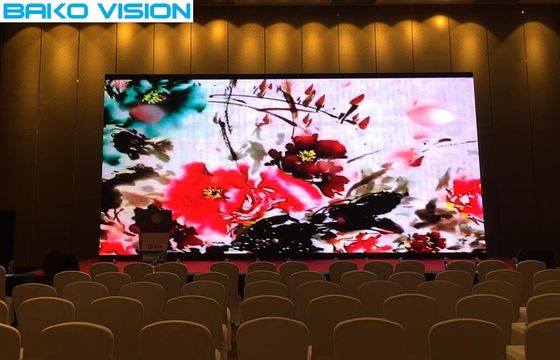

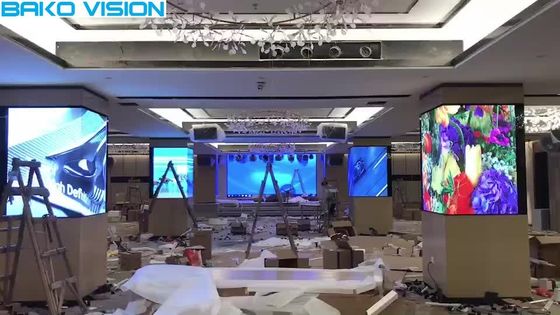

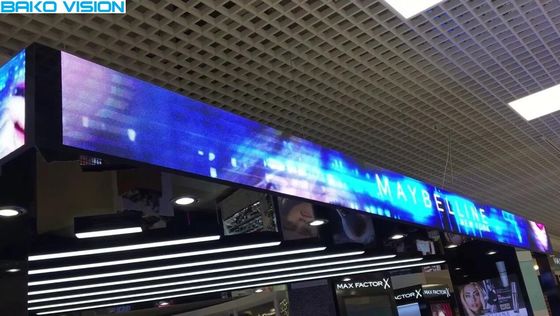

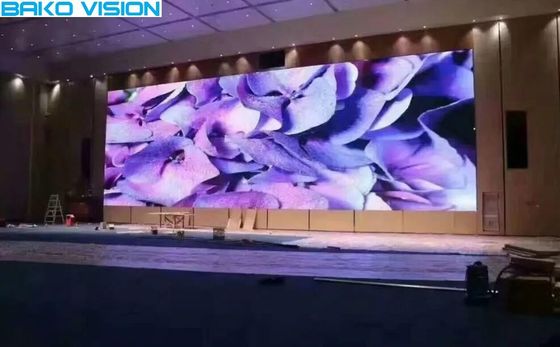

Fixed Led Video Wall Case:

High Brightness P5mm Indoor Fixed LED Display Wall Panel For Hall Bar 0

Our service
Warranty
1. We guaratee all our display, modules, spare parts for TWO years.
2. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3. After warranty, we also can offer you the parts for replacement at our bottom price.
4. After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5. We also could solve problems for you antil it recovers well by remote control!

Delivery time
1. Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2. Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.

Installation
1. We can assist the training and technical support for the customer in the factory, if the customer require so.
2. We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3. Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
