Fixed P8 Billboard Led Screen Outdoor Advertising Wall Mounted Screen

Fixed P8 Billboard Led Screen Outdoor Advertising Wall Mounted Screen
Fixed P8 Billboard Led Screen Outdoor Advertising Wall Mounted Screen Fixed P8 Billboard Led Screen Outdoor Advertising Wall Mounted Screen Fixed P8 Billboard Led Screen Outdoor Advertising Wall Mounted Screen Fixed P8 Billboard Led Screen Outdoor Advertising Wall Mounted Screen

Large Image :  Fixed P8 Billboard Led Screen Outdoor Advertising Wall Mounted Screen

Product Details:

Place of Origin: China
Brand Name: Bakovision
Certification: CE ETL FCC CCC
Model Number: BOF Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 sqm
Price: Negotiation
Packaging Details: Wooden case or flight case
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000 sqm/month
Detailed Product Description
Physical Pitch: 8mm Pannel Material: Steel/Aluminum
Servicing: Front/Rear Viewing Angle: 160°/140°
Refresh Rate: >1920Hz Contrast Ratio: 2000:1
Brightness: >6500nits IP Rating(Front/Rear): IP65/IP54
Highlight:

P8 Billboard Led Screen

,

IP54 Led Screen Outdoor Advertising

,

SMD3535 digital advertising boards

P8 SMD2727 Low Power Consumption Digital Billboard Outdoor LED Display

Features


* One standard chassis 1024*768,covering pitches from 2.6 mm to 10.6 mm
* Deep black level ,contrast ratio 4000:1
* Die casting aluminum ,27-32 per cabinet
* Slim,about 100 mm thickness
* Suitable brightness,adjustable for outdoor day and night
* Fast lock system design guarantee a quick easy installation
* Front and rear access
* Fanless design
* Outdoor rated, IP65 front and back



Energy Saving LED Billboard Specification:

Physical Pitch 8mm
Pixel Configuration SMD3535
Pixel Density 15,625 pixels/Sqm
Module Dimensions(W x H) (mm) 320 x 320
Panel Dimensions (mm) 960 x 960 x 150
NO. of Modules Per Panel (W x H) 3 x 3
Physical Resolution of Module (W x H) 40 x 40
Physical Resolution of Panel (W x H) 120 x 120
Panel Material Steal / Aluminum
Weight (kg/Sqm) 40
Processing 16bit
Colours 281 trillion
Contrast Ratio 2,000 : 1
Average Power Consumption 360 W / Sqm
Max Power Consumption 900 W / Sqm
Average Power After Energy Saving 90 W /Sqm
Max Power After Energy Saving 230 W /Sqm
Brightness >6,500 nits
Refresh Rate >1,920 Hz
Vertical Viewing Angle 160°
Horizontal Viewing Angle 140°
Expected Lifetime 100,000 Hrs
Servicing Rear
IP Rating (Front/Rear) IP 65
Operating Temp/Humidity -20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity -20ºC - 50ºC / 10% - 90%
Scan Method 1/10 Scan

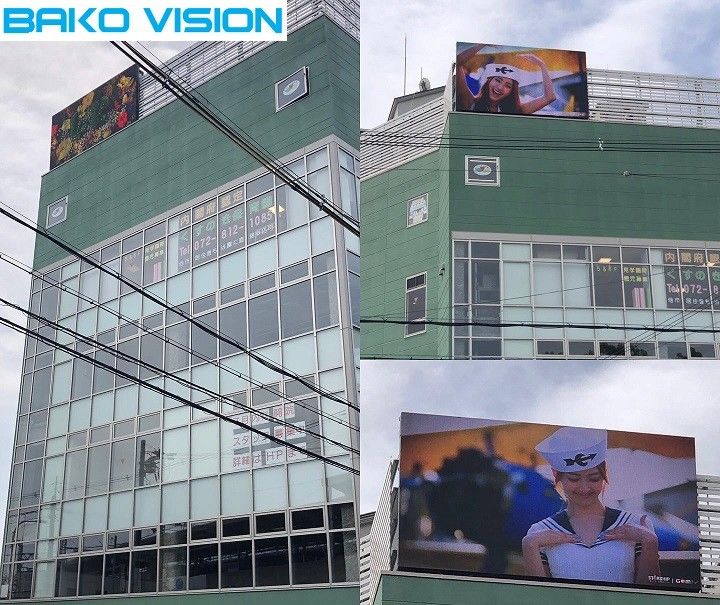

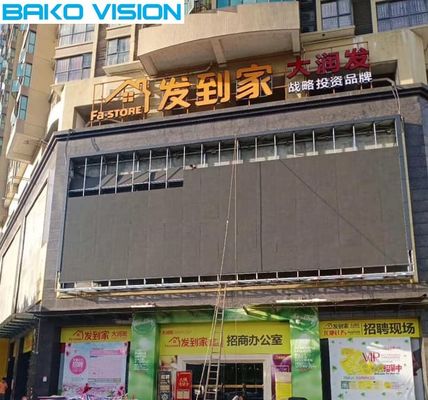

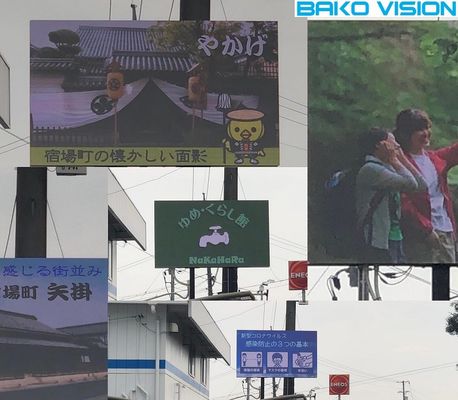

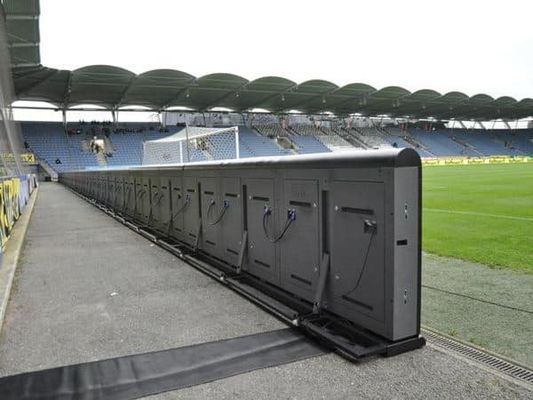

Energy Saving LED Billboard Case



Fixed P8 Billboard Led Screen Outdoor Advertising Wall Mounted Screen 0



Our services

Pre-producing

  • Get complete requirements of clients.
  • To do a thorough analysis.
  • Offer a most reasonable and scientific solution.
  • Customized design.

In producing

  • Producing progress updating for clients.
  • Particular installation CAD and design diagram for clients.

After service

  • 2 years free maintenance.
  • 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers.
  • Free training for customers in factory.
  • Our engineer onsite guide if needed.
