Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 1.25mm | Pixel Density: | 648,000 Px/m2 |
|---|---|---|---|
| LED Type: | SMD1010 | LED Configuration: | 1R1G1B |
| Cabinet Material: | Die-casting | Cabinet Weight: | 4.6kg |
| Viewing Angle(H/V): | 140°/140° | Driving Method: | 1/27 Scan |
| High Light: | P1.25 High Definition Led Screen,SMD1010 High Definition Led Screen,SMD1010 Fine Pitch Led Displa |
||

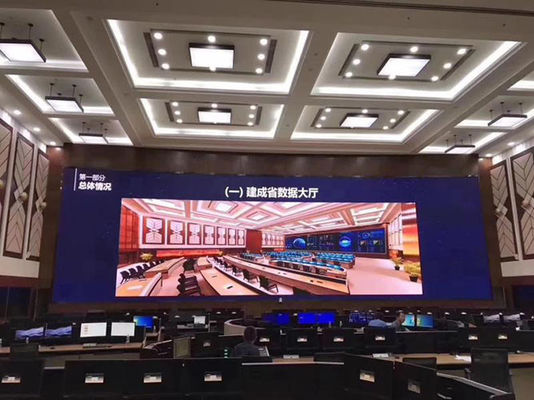

Front access P1.25 indoor fine-pitch led display for big data center
P1.25 Fine Pitch Led Display Specs
| UHD-1.25 | |
| Physical Pitch | 1.25mm |
| Pixel Configuration | SMD 1010 |
| Pixel Density | 648,000 pixels/m² |
| Module Dimensions (W × H) (mm) | 150 × 168.75 |
| Panel Dimensions (mm) | 600 × 337.5 |
| NO.of Modules Per Panel (W × H) | 4 × 2 |
| Physical Resolution of Module (W × H) | 120 × 135 |
| Physical Resolution of Panel (W × H) | 480 × 270 |
| Panel Material | Die-casting |
| Single Cabinet Weight | 6 kg/panel |
| Gray Scale | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000 :1 |
| Average Power Consumption | ≤300W/m2 |
| Max Power Consumption | ≤600 W/m² |
| Brightness | 600~800 nits |
| Refresh Rate | >2,880Hz |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | ≥100,000 Hrs |
| Operating Temp/Humidity | -20°C-50 °C / 10%-90% |
| Storage Temp/Humidity | -40°C-60°C / 10%-85% |
| IP Rating (Front/Rear) | IP 40/ IP 21 |
| Scan Method | 1/45 1/27 Scan |
P1.25 Fine Pitch Led Display Features:
1. High gray scale under low brightness :Adjustable(>800nit) brightness not only meets the brightness requirements of indoor LED display screen, but also maintain the delicate and clear image by 16 bit gray level.Besides,high definition effect comes with uniform luminance and soft color is suitable for indoor. Under full white testing, pure white color is always available.
2. Wide viewing angle:Whether sitting in a spacious or narrow room, the horizontal and vertical viewing angles had reach 140 degrees, which greatly meets the viewing needs of the audience in different directions.The images effect will not change largely in the range.
3. Excellent thermal management:In a enclosed or Semi closed space, heat dissipation are very important, and the unique design allows this product have an excellent thermal management.We also add a mask to the surface, which due to heat dissipation, and focus light, to achieve better viewing effect.
4. Energy-saving:Constant voltage chip driving reduces the power consumption and prompts the stability. The power consumption per square meter is about 220W.
5. Lightweight and seamless:Ultra-lightweight box, it is easier and faster to operate and install, so it can save labor and time costs.
6. we can let our engineer to guide our clients to do installation.
Services of P1.25 fine-pitch display
1. Warranty
1) We provide warranty of all components for 2 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the installation of software and hardware, as well as the daily operation and troubleshooting of the LED display.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.
3. Certification
We provide the operation manual and all kinds of certification such as CE, RoHS EMC UL and so on.
4. Package&Shipment
1) Usually, we will ship within 20-25 working days after the customer place an order, but the actual arrival time is affected by transportation environment and other aspects.
2) In general,our products are packed in wooden boxes and flight case.
