Events Shows Outdoor Rental Led Screen High Resolution LED Display

Events Shows Outdoor Rental Led Screen High Resolution LED Display
Events Shows Outdoor Rental Led Screen High Resolution LED Display

Large Image :  Events Shows Outdoor Rental Led Screen High Resolution LED Display

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: CE, RoHS,
Model Number: Outdoor P4.81mm

Payment & Shipping Terms:

Minimum Order Quantity: 1sqm
Packaging Details: Plywooden Case/Flight case
Delivery Time: 15~20days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 8000sqm/month
Detailed Product Description
Cabinet Size: 500*1000mm/500*500mm Module Size: 250*250mm
Material: Die-casting Aluminium Weight/cabinet: 9kg/15kg
Name: Outdoor Rental Led Screen Pixel Configuration: SMD1921
High Light:

SMD1921 outdoor rental led screen

,

SMD1921 outdoor rental LED Display

,

SMD1921 High Resolution LED Display

Events Shows Outdoor Rental Led Screen High Resolution LED Display



6-BOR-II.pdf


LED Display Outdoor Rental Feature:
1. Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.



2. Thin cabinet: the thickness is only 80mm, the space of the screen is small , and the entire screen will be more beautiful.

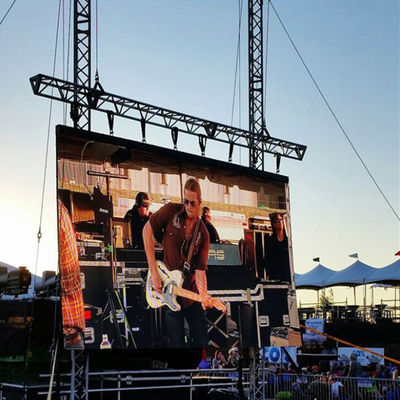

Events Shows Outdoor Rental Led Screen High Resolution LED Display 0

3.Flat screen: smooth surface error is under 0.2cm, it can remove the mosaic phenomenon effectively. The effect of the display will be more clear and exquisite.

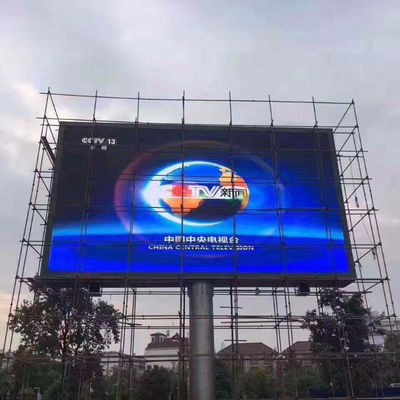

Events Shows Outdoor Rental Led Screen High Resolution LED Display 1



4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful. Tools free installation. Cable-less between modules.

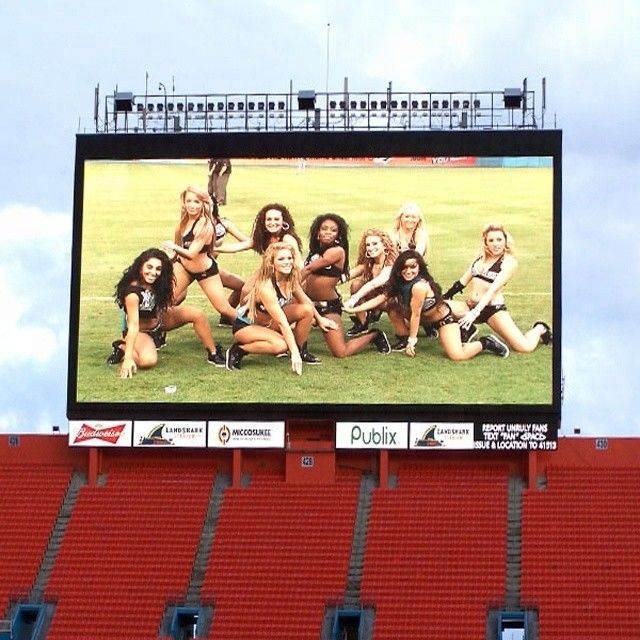

Events Shows Outdoor Rental Led Screen High Resolution LED Display 2

5. Low release heat: low noise, low consumption, low cost, no fan design but excellent thermal design and excellent thermal dispersion.




6.Concave and convex setup support: client can asselbly any shape of the led wall display to make different show effect compare with common led display panel.

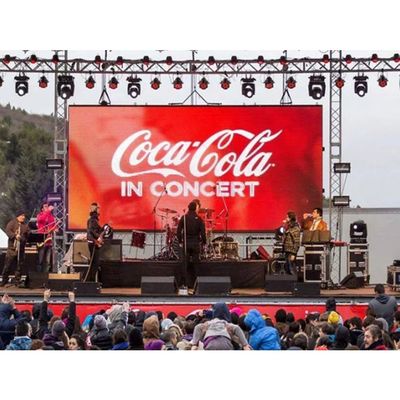

Events Shows Outdoor Rental Led Screen High Resolution LED Display 3



7.Outdoor Rated:out door waterproof with IP65; suitable brightness adjustable for outdoor day and night; deep black levels, contrast ratio 4000:1.

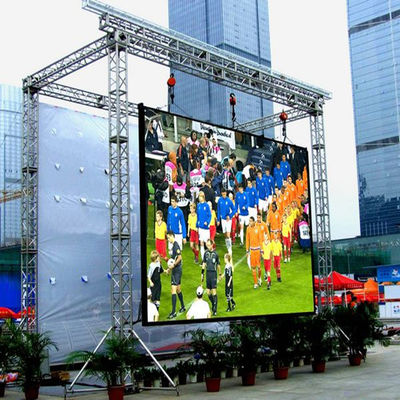

Events Shows Outdoor Rental Led Screen High Resolution LED Display 4



 LED Display Outdoor Rental Parameter:

  BOR-III-3 BOR-III-4
Physical Pitch 3.91mm 4.81mm
Pixel Configuration SMD1921 SMD2727
Pixel Density 65,536 pixels/m² 43,264 pixels/m²
Module Dimensions(W*H)(mm) 250*250 250*250
Panel Dimensions(mm) 500*500*75/500*1000*75 500*500*75/500*1000*75
NO. of Modules Per Panel (W*H) 2*2/2*4 2*2/2*4
Physical Resolution of Module(W*H)(mm) 64*64 52*52
Physical Resolution of Panel(W*H)(mm) 128*128/128*256 104*104/104*208
Panel Material Die-casting Aluminum Die-casting Aluminum
Single Cabinet Weight 9/15kg/panel 9/15kg/panel
Processing 16bit 16bit
Colours 281 trillion 281 trillion
Contrast Ratio 4,000:1 4,000:1
Average Power Consumption 75/150 W/panel 75/150 W/panel
Max Power Comsunption 225/550 W/panel 225/550 W/panel
Operating Temp/Humidity -20ºC-60ºC/10%-60% -20ºC-60ºC/10%-60%
Storage Temp/Humidity -30ºC-60ºC/10%-60% -30ºC-60ºC/10%-60%
Refresh Rate >1,920 Hz >1,920 Hz
Brightness >6,000 nits >6,000 nits
Horizontal Viewing Angle 160° 160°
Vertical Viewing Angle 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs
Max Stacking 20/10 20/10
Max Hanging 20/10 20/10
Servicing Front/Rear Front/Rear
IP Rating(Front/Rear) IP 65/IP54 IP 65/IP54
Certification CCC,CE,ETL,RoHS CCC,CE,ETL,RoHS


Tipical Applications:
Stage rental, Shopping mall, DJ touring, Theme resort, Car show, Fahion store, House of worship, Window display, Reception hall, Opera house, Wedding hall, Events and conference.

Service:
1. Pre-sales service:

1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.

2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection.

2. After-sales service:

1) Service principles: response in time, solve problems as soon as possible and ensure the use.

2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.

3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.

4) Under normal use and storage, Our Company will be responsible for the equipment



Events Shows Outdoor Rental Led Screen High Resolution LED Display 5



Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
If you still worry about how to choose a better LED display, Bako Vision would be your best choice. Please feel free to contact us.
