Product Details:
Payment & Shipping Terms:
|
| Panel Material: | Die Casting Aluminum | Brightness: | 6000 Nits |
|---|---|---|---|
| Servicing: | Rear | IP Rating(Front/Rear): | IP65/IP54 |
| Refresh Rate: | >1,920 Hz | Processing: | 16 Bit |
| Highlight: | 5500nit Outdoor Fixed Led Display,SMD2727 Outdoor Fixed Led Display,36W/M2 Front Service Led Display |
||
Front service 5500nit P5 outdoor fixed led display for advertising
P5 outdoor fixed led display Features:
1. High brightness of 5500nits makes visable under direct sunshine;
2. Front-access module makes easy maintenance;
3. Using high quality parts, like Nationstar leds, Meanwell power supply, etc
P5 outdoor fixed led display Specs:
| BOF-B-5 | |
| Physical Pitch | 5 mm |
| Pixel Configuration | SMD2727 |
| Pixel Density | 40,000 pixels/m² |
| Module Dimensions (W × H) (mm) | 320 × 160 |
| Panel Dimensions (mm) | 960 × 960 × 150 |
| NO .of Modules Per Panel (W × H) | 3 × 6 |
| Physical Resolution of Module (W × H) | 64 × 32 |
| Physical Resolution of Panel (W × H) | 192 × 192 |
| Panel Material | Steel / Aluminum |
| Weight(m²) | 65/45 |
| Processing | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 36 W/m² |
| Max Power Consumption | 900 W/ m² |
| Brightness | ≥6500 nits |
| Refresh Rate | ＞1,920 Hz |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing angle | 140° |
| Expected Lifetime | 100, 000 Hrs |
| Servicing | Rear |
| IP Rating | IP 65 |
| Operating Temp/Humidity | -20℃- 50℃ / 10%-90% |
| Storage Temp/Humidity | -20℃-50℃ / 10%-90% |
| Scan Method | 1/8 Scan |

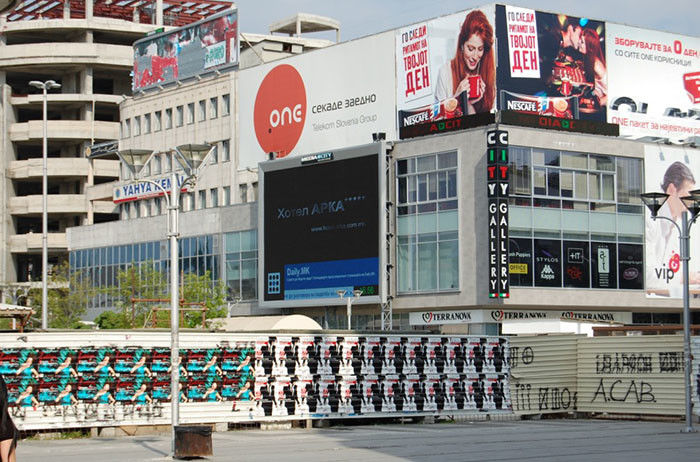

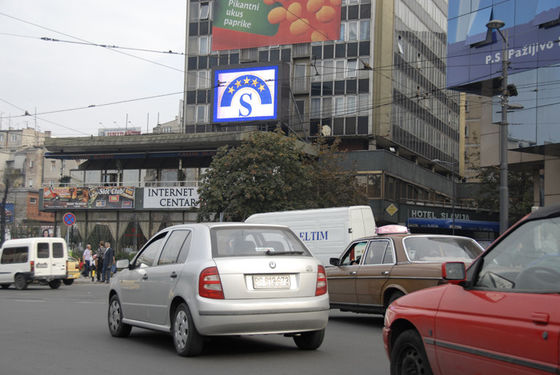

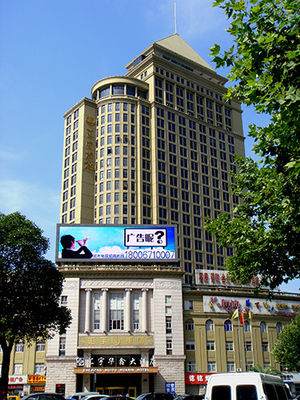

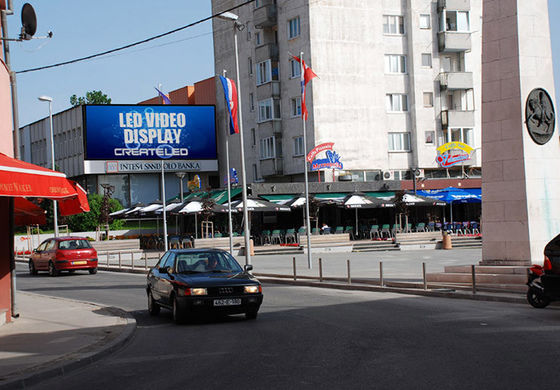

P5 outdoor fixed led display Cases
