| Led Module Size: | 320x160mm | Leds: | Nationstar |
|---|---|---|---|
| Power Supply: | Meanwell | Driver IC: | ICN2038S |
| Led Type: | SMD2727 | ||
| Highlight: | SMD1818 Truck Mobile LED Trailer,62500pixels/m2 Truck Mobile LED Trailer,5500nits Advertising LED TrailerDisplay |
||

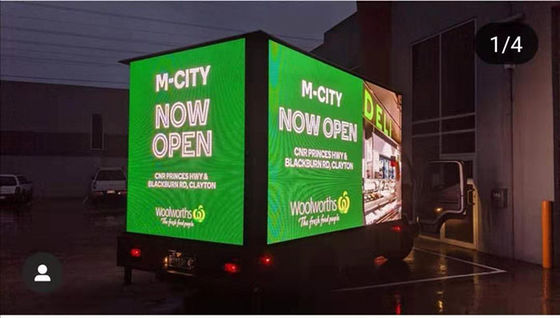

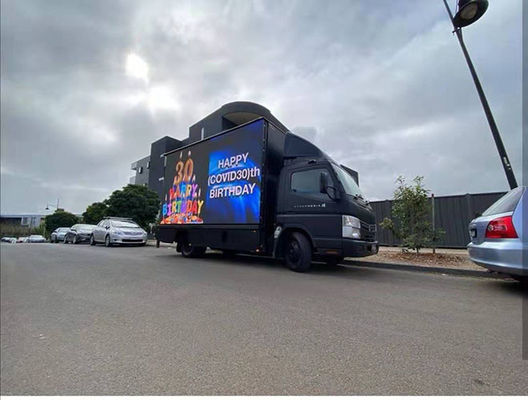

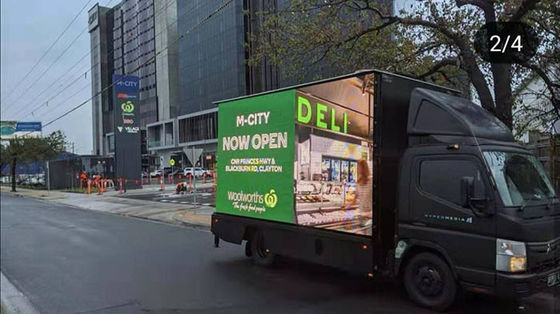

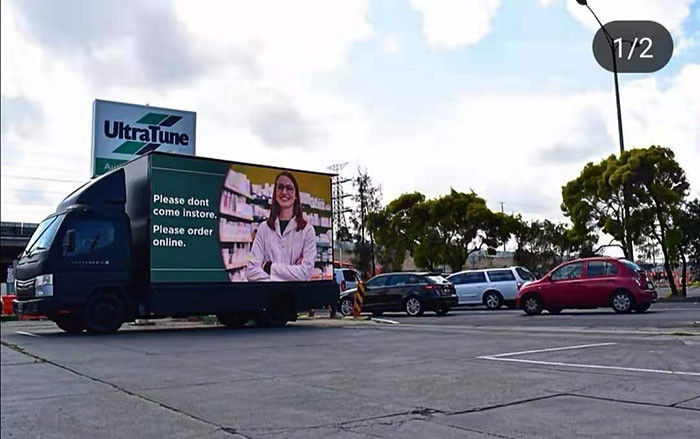

P4 Truck Mobile Advertising Display LED Trailer with 5500 Nits Brightness
P4 Truck Mobile Advertising LED Display LED Trailer Features:
1. Double sides with hydraulic lifting system makes your ads feasible;
2. It can reach out 5500nits brightness;
3. Makes your ads everywhere in the city for all different audiences;
P4 Truck Mobile Advertising LED Display LED Trailer Specs
| BOF-B-4 | |
| Physical Pitch | 4 mm |
| Pixel Configuration | SMD 1818 |
| Pixel Density | 62500pixels/m2 |
| Module Dimensions (W × H) (mm) | 320 × 160 |
| Panel Dimensions (mm) | 960 × 960 × 150 |
| NO .of Modules Per Panel (W × H) | 3 × 6 |
| Physical Resolution of Module (W × H) | 80 × 40 |
| Physical Resolution of Panel (W × H) | 240 × 240 |
| Panel Material | Steel / Aluminum |
| Weight(m²) | 65/45 |
| Processing | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 360 W/m² |
| Max Power Consumption | 900 W/ m² |
| Brightness | ≥6500 nits |
| Refresh Rate | ＞1,920 Hz |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing angle | 140° |
| Expected Lifetime | 100, 000 Hrs |
| Servicing | Rear |
| IP Rating | IP 65 |
| Operating Temp/Humidity | -20℃-50℃ / 10%-90% |
| Storage Temp/Humidity | -20℃-50℃ / 10%-90% |
| Scan Method | 1/8 Scan |
