P3 P4 P5 SMD2121 Fixed led board For Meeting Room
Product Details
| LEDs: | SMD2121 | Control System: | Novastar |
|---|---|---|---|
| Servicing: | Front/Rear | Viewing Angle: | 160°/140° |
| Refresh Rate: | ＞1920Hz | Contrast Ratio: | 4000:1 |
| Highlight |
SMD2121 Fixed Led Board,62500pixels/M2 Fixed Led Board,120W/Sqm Meeting Room Led Screen |
||
Product Description
P3 P4 P5 HD Indoor Fixed LED Display Screen
Features and Advantages:
- Panel Size: The Panel size can be customized, you can ask any size that you want.
- High brightness: More than 1100nits
- Convenient Assemble : Smart fast side locks make screen assemble fast and easier;
- Seamless connection: superior color uniformity and stunning image quality, there is not black gap line on connection nor information missing;
- Convenient Control: Digital Video walls can be connected with nearly any equipment , including to PCs, DVD and camera . That is conveniently for you to present your data;
- 2 Years Warranty : we can repair each LED lamps, so the cost of maintain is lower,and easy to repair;Also you can send back the module to us to fix.
- High Quality : we use famous IC ,like MBI5020,MBI5024,MBI5030 and high quality lamp, Nationstar and so on, ensure high brightness;
Specification:
| Physical Pitch | 3mm | 4mm | 5mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 111,111 pixels/㎡ | 62500pixels/m2 | 40,000 pixels/㎡ |
| Module Dimensions(W x H) (mm) | 192 x 192 | 256 x 128 | 320 x 160 |
| Panel Dimensions (mm) | 960 x 960 | 1024 x 768 | 1280 x 960 |
| NO. of Modules Per Panel (W x H) | 5 x 5 | 4 x 6 | 4x 6 |
| Physical Resolution of Module (W x H) | 64 x 64 | 64 x 32 | 64 x 32 |
| Physical Resolution of Panel (W x H) | 320 x 320 | 256 x 192 | 256 x 192 |
| Panel Material | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum |
| Scan Method | 1/32 Scan | 1/16 Scan | 1/16 Scan |
| Gray Scale | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 120 W /Sqm | 120W/Sqm | 120 W /Sqm |
| Max Power Consumption | 400 W /Sqm | 400 W /Sqm | 400 W /Sqm |
| Operating Temp/Humidity | -10℃ - 60℃ / 10% - 60% | -10℃ - 60℃ / 10% - 60% | -10℃ - 60℃ / 10% - 60% |
| Storage Temp/Humidity | -30℃ - 60℃ / 10% - 60% | -30℃ - 60℃ / 10% - 60% | -30℃ - 60℃ / 10% - 60% |
| Refresh Rate | ＞1,920Hz | ＞1,920Hz | ＞1,920Hz |
| Brightness | 900-1,200nits | 900-1,200nits | 900-1,200nits |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 21 | IP 21 | IP 21 |

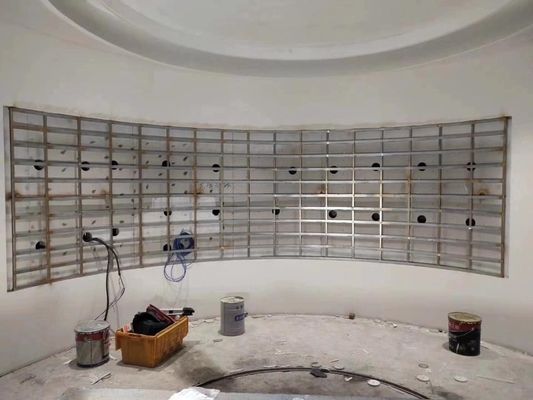

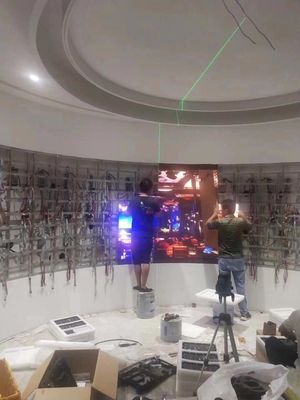

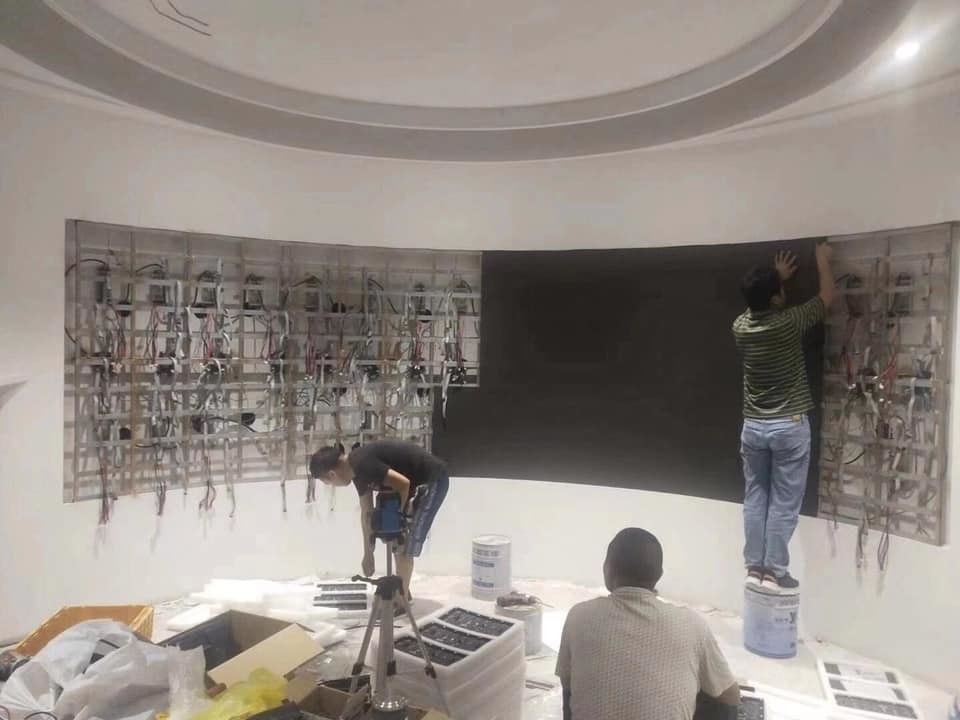

Case
FAQ
1. How can I place an order?
Please provide all the details of your requirements for our reference So we can send you the offer at the first time.Feel free to contact with me by What's APP/email /phone to avoid any delay.
2. What kind of display we provide?
We have indoor/outdoor/LED stage/Sport display/ Irregular LED display/monitor screen for you choose.
3. Are you manufacturer of led display.If yes, in which city?
Yes, We already have more than 10 years experience for LED display as a LED manufacturer located in Shenzhen
4. How long can I get the goods?
Our product leadtime is about 10-25 working days.When you confirm the order, we can start production at once receiving your deposit(30% TT in advance). we will update the production details in time.we will notice you when we can delivery the goods to you after we get full payment.
5.May I know the package details?
For fixed installation, we use wooden case, usually 2 or 4 cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
6.What is the payment method?
We support the payment methods as TT, L/C.
7. What's the pixel pitch for Indoor LED Display Screen?
Indoor (P2.6mm/P2.97mm/P3.91/P4.81mm/P6.25mm) led display screen
8.Can it play HD video?
Yes, it can realize HD video function with Linsn/nova controlling system
9.What's the controlling system?
Our standard controlling system for this model is Linsn/ Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
10. What is your terms of delivery?
We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you.
