Product Details:
Payment & Shipping Terms:
|
| Features: | High Brightness SMD | Material: | Aluminum |
|---|---|---|---|
| Light: | Nationstar | IP Rating: | IP65 |
| Usage: | Outdoor Advertising | Warranty: | 2 Years |
| Power Supply: | Meanwell | Driver IC: | MBI5124 |
| Highlight: | 5000nits Taxi Top Led Screen,96x32cm Taxi Top Led Screen,SMD2727 Mobile Led Billboard |
||
Waterproof P5 Moving Taxi Top Led Screen with 5000nits 96x32cm panel
P5 Moving Taxi Top Led Screen Description:
● Taxi Top Advertising Display,3G, 4G, WIFI, GPS Transmission
● Outdoor Waterproof
● High Brightness, Wide Viewing Angle
● Digital Moving Text, Graphics, Commercial Ads Billboard
● Light Weight
● Single or Double Sided
P5 Moving Taxi Top Led Screen Parameter
| Pixel Pitch | P2.5 | P3 | P5 |
| LED Type | SMD2121 | SMD2121 | SMD2727 |
| Module Size | 160*160 | 192*196 | 160*160 |
| Screen Size | 960*320 | 768*288 | 960*320 |
| Screen Resolution | 384*128 | 256*96 | 192*64 |
| Cabinet Weight | 26kg | 15kg | 23kg |
| Cabinet Material | Aluminum | ||
| Frame Size |
1100(L)*410(H) 164(bottom)/99(top) |
820(L)*390(H) 170(bottom)/99(top) |
1100(L)*410(H) 164(bottom)/99(top) |
| Gray Scale | 16bit | ||
| Contrast Ratio | 4000:1 | 4000:1 | 2000:1 |
| Brightness | 3500nits | ||
| View Angle(H/V) | 140°/160° | ||
| Refresh Rate | ＞1920Hz | ||
| IP Rating | IP65 | ||
| Average Power Consumption(W/㎡) | 180W/Set | 80W/Set | 150W/Set |
| Maximum Power Consumption(W/Sqm) | 480W/Set | 250W/Set | 450W/Set |
| Servicing | Front/Rear | ||

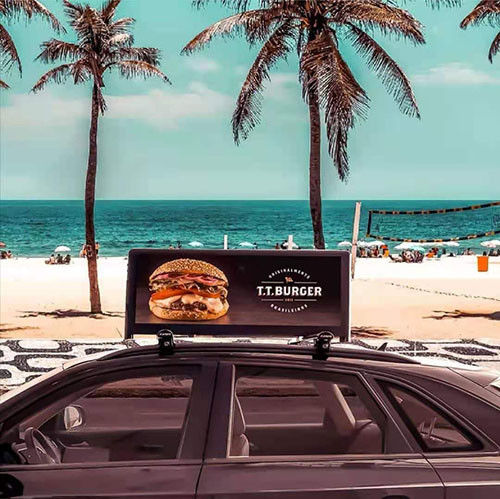

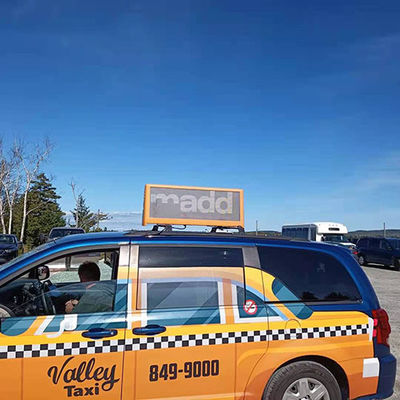

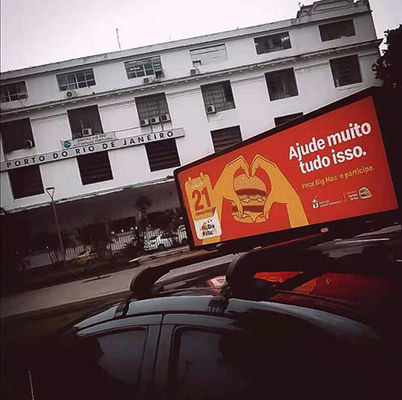

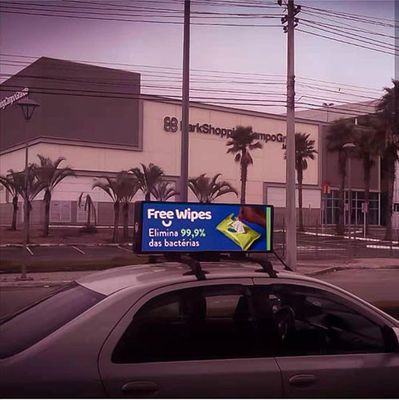

P5 Moving Taxi Top Led Screen Application
Cases:
