| Pixel Pitch: | 2.6mm | Pixel Density: | 147456pixels/m2 |
|---|---|---|---|
| Cabinet Dimension: | 500x1000mm | Cabinet Material: | Die Casting Aluminum |
| Ingress Protection(front/rear): | IP65/IP54 | MTBF: | ≥1000hrs |
| Pixel Failure: | <0.0003 | ||
| Highlight: | SMD2121 Indoor Rental Led Display,Indoor Rental Led Display P2.6,147456pixels/M2 Front Service LED Display |
||
Front access P2.6 50x50cm led video panel display in Los Angeles
P2.6 Indoor Rental Led display Features
1, Front access module makes easy maintenance service;
2, Super thin and light with aluminum cabinet design.
3, Good anti-UV and anti-oxidation performance.
4, Large viewing distance, 140° in horizontal, 140° in vertical.
5, Excellent flatness and no splicing gap between modules
6, Quick installation and removal with facile connection lock
7. After-sales service conducted in USA, parts no need to send back to China;

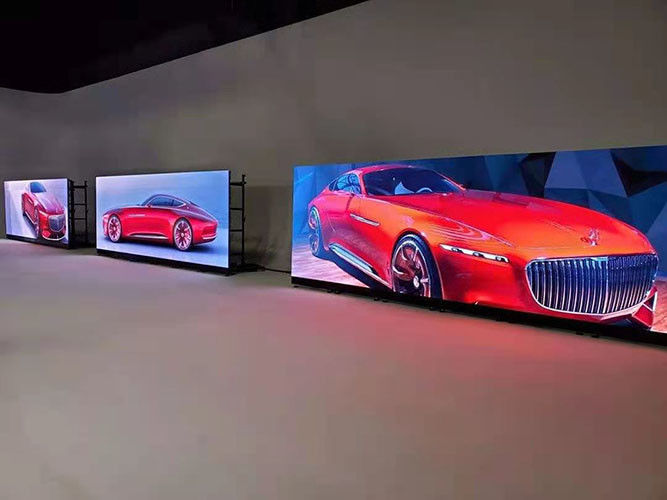

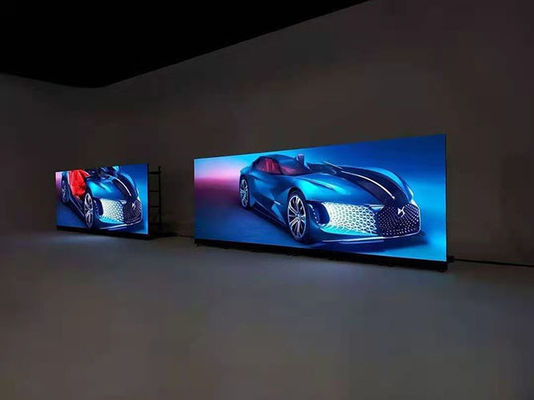

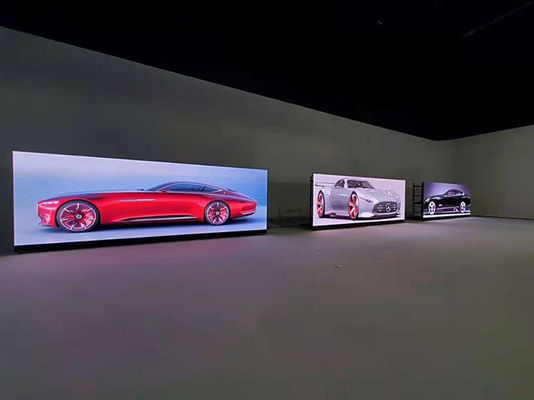

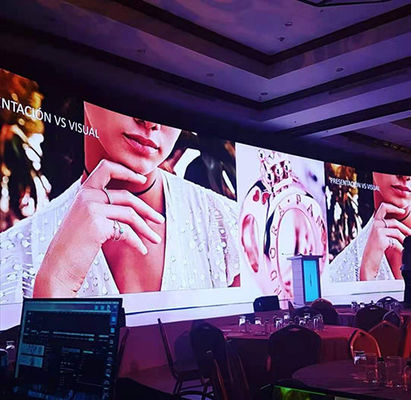

P2.6 Indoor Rental Led display Panels
P2.6 Indoor Rental Led display Specs
| BIR-II-2X | |
| Physical Pitch(mm) | 2.6mm |
| Pixel Configuration | SMD2121 |
| Pixel Density | 147,456 pixels/sqm |
| Module Dimensions (W × H) (mm) | 250x250 |
| Panel Dimensions (mm) | 500x500x80/500x1000x80 |
| No. of Modules Per Panel (W × H) | 2x2/2x4 |
| Physical Resolution of Module (W x H) | 96x96 |
| Physical Resolution of Panel (W x H) | 192x192/192x384 |
| Panel Material | Die-casting Aluminum |
| Single Cabinet Weight | 8/14 kg / panel |
| Gray Scale | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000:1 |
| Average Power Consumption | 400 W / ㎡ |
| Max Power Consumption | 800 W / ㎡ |
| Operating Temp/Humidity | -10°-60℃/10%-60% |
| Storage Temp/Humidity | -30°-60℃/10%-60% |
| Refresh Rate | >1,920 Hz |
| Brightness | ≥1,200nits |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | 100,000 Hrs |
