Product Details:
Payment & Shipping Terms:
|
| Led Module Size: | 320x160mm | Leds: | Nationstar |
|---|---|---|---|
| Power Supply: | Meanwell | Driver IC: | ICN2038S |
| Led Type: | SMD2727 | ||
| Highlight: | 6000nits Truck Mounted Led Display,SMD2727 Truck Mounted Led Display,40000pixels/m2 Double Sides LED Screen |
||

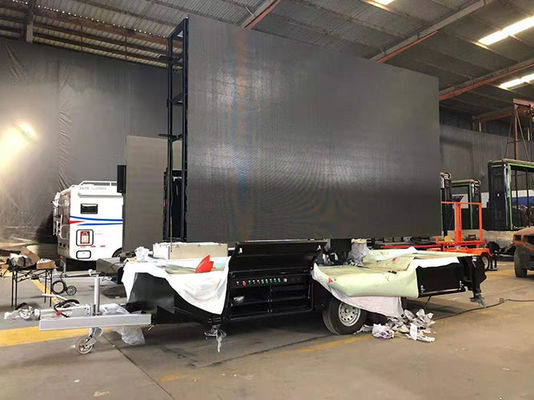

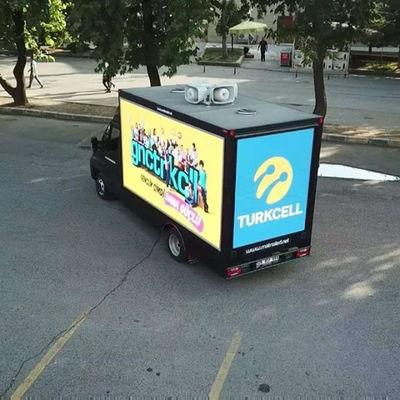

Double sides 6000 Nits P4 outdoor truck mounted led display with hydraulic system
P5 Outdoor Truck Display Trailer Features:
1. Double sides display with hydraulic system attracts more attention of audience;
2. High brightness of 5,500 nits;
3. Moving billboard makes ads everywhere you want;
4. Special hydraulic system makes display up, down, turn right, turn left;
P5 Outdoor Truck Display Trailer Specs
| BOF-B-5 | |
| Physical Pitch | 5 mm |
| Pixel Configuration | SMD 2727 |
| Pixel Density | 40000pixels/m2 |
| Module Dimensions (W × H) (mm) | 320 × 160 |
| Panel Dimensions (mm) | 960 × 960 × 150 |
| NO .of Modules Per Panel (W × H) | 3 × 6 |
| Physical Resolution of Module (W × H) | 64 × 32 |
| Physical Resolution of Panel (W × H) | 192 × 192 |
| Panel Material | Steel / Aluminum |
| Weight(m²) | 65/45 |
| Processing | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 36 W/m² |
| Max Power Consumption | 900 W/ m² |
| Brightness | ≥6500 nits |
| Refresh Rate | ＞1,920 Hz |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing angle | 140° |
| Expected Lifetime | 100, 000 Hrs |
| Servicing | Rear |
| IP Rating | IP 65 |
| Operating Temp/Humidity | -20℃- 50℃ / 10%-90% |
| Storage Temp/Humidity | -20℃-50℃ / 10%-90% |
| Scan Method | 1/8 Scan |
