Product Details:
Payment & Shipping Terms:
|
| LEDs: | Nationstar | Pannel Material: | Steel |
|---|---|---|---|
| Servicing: | Front/Rear | Viewing Angle: | 160°/140° |
| Refresh Rate: | ＞1920Hz | Contrast Ratio: | 2000:1 |
| Brightness: | ＞6500nits | IP Rating(Front/Rear): | IP65 |
| Highlight: | P3.91 Stage Led Video Display,6500nits Stage Led Video Display,3.91mm Pixel Rental LED Screen |
||
P8 Nationstar Lamp Fixed Led Outdoor Advertising Video Screen Full Color High Brightness Weatherprotected
Outdoor Fixed LED Screen Quick Details:
1, Pixel Pitch: 8mm
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Digital Process: 16bits.
4, Standard cabinet size:Customized
5, Warranty: 2years.
6, Recommended minimum viewing distance: 10m.
Outdoor Fixed LED Screen Features
1. Outdoor waterproof with IP65 for various weather condition.
2. High definition and high refresh rate, suitable brightness adjustable for outdoor day and night.
3. Fast installation and easy maintenance.Front service saves the space.
4. Good heat dissipation. Every cabinet is equipped with fans to let the hot wind blow out and cold wind blow in.
5. Intelligent control and player system by cloud technology, time management and real time monitoring.
Outdoor Fixed LED Screen Specification:
| Physical Pitch | 8mm |
| Pixel Configuration | SMD3535 |
| Pixel Density | 15,625 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 256 x 256 |
| Panel Dimensions (mm) | 1280 x 768 x 150 |
| NO. of Modules Per Panel (W x H) | 5 x 3 |
| Physical Resolution of Module (W x H) | 32 x 32 |
| Physical Resolution of Panel (W x H) | 160 x 96 |
| Panel Material | Steal / Aluminum |
| Weight (kg/Sqm) | 40 |
| Processing | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 360 W /panel |
| Max Power Consumption | 900 W /panel |
| Average Power After Energy Saving | 90 W /Sqm |
| Max Power After Energy Saving | 230 W /Sqm |
| Brightness | >6,500 nits |
| Refresh Rate | >1,920 Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 140° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Rear |
| IP Rating (Front/Rear) | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/10 Scan |

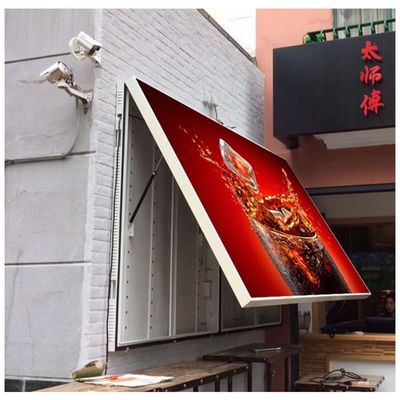

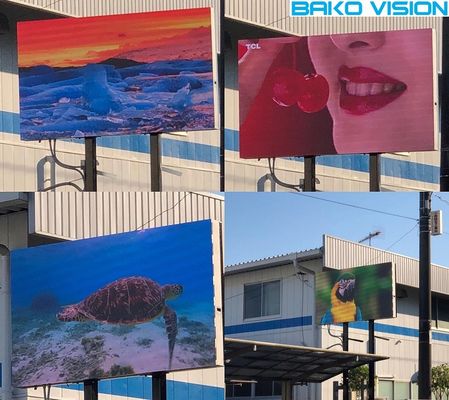

Outdoor Fixed LED Screen Case:
