Product Details:
Payment & Shipping Terms:
|
| Led Moudle: | 160*160mm | Cabinet Size: | 960*960mm |
|---|---|---|---|
| Scanning Rate: | 1920Hz | Driver IC: | ICN2038 |
| Brightness: | 6500nits | Colors: | 281trillions |
| Highlight: | SMD1818 Billboard LED Display,6500 Nits Billboard LED Display,P4 Led Billboard Signs |
||

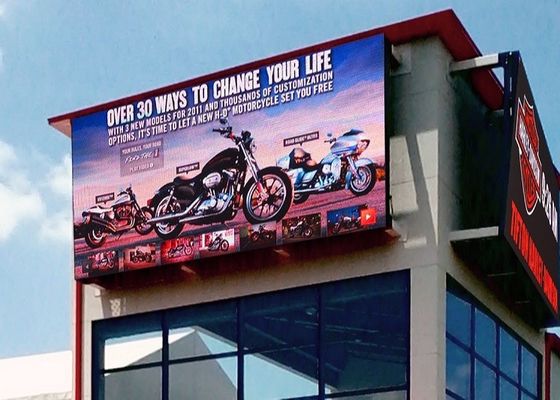

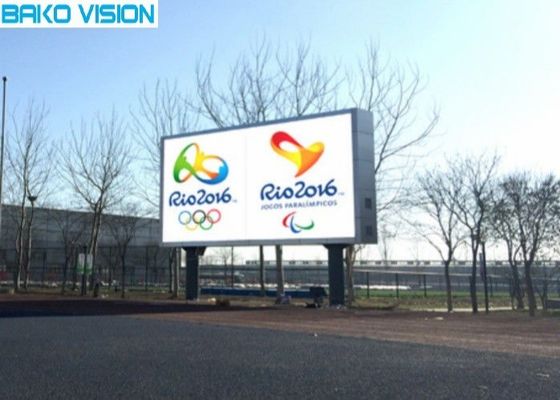

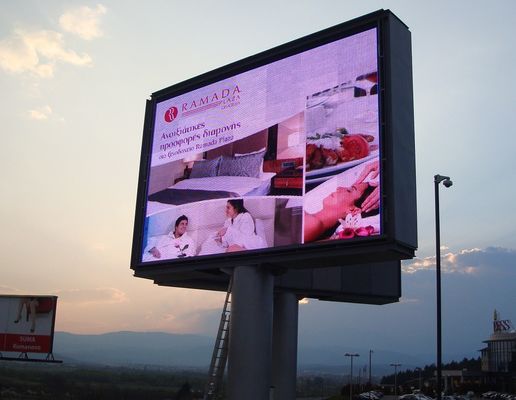

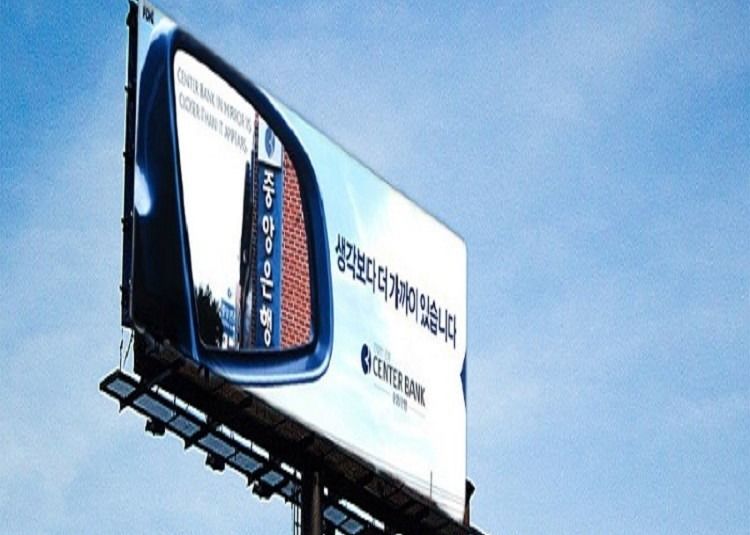

Energy-saving P4 HD Outdoor Billboard Led Display with Nationstar Leds
P4 Outdoor Billboard Led Display Features:
1. Easy maintenaince: rear access and front access available;
2. Dynamic pictures under direct sunshine;
3. Power saving, due to we use best power supply, best leds, best PCB board, etc;
4. Long lifetime: about 5 years;
P4 Outdoor Billboard Led Display Specifications:
| BOF-B-4 | |
| Physical Pitch | 4 mm |
| Pixel Configuration | SMD1818 |
| Pixel Density | 62,500 pixels/m² |
| Module Dimensions (W × H) (mm) | 320 × 160 |
| Panel Dimensions (mm) | 960 × 960 × 150 |
| NO .of Modules Per Panel (W × H) | 3 × 6 |
| Physical Resolution of Module (W × H) | 80 × 40 |
| Physical Resolution of Panel (W × H) | 240 × 240 |
| Panel Material | Steel / Aluminum |
| Weight(m²) | 65/45 |
| Processing | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 360 W/m² |
| Max Power Consumption | 900 W/ m² |
| Brightness | ≥6500 nits |
| Refresh Rate | ＞1,920 Hz |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing angle | 140° |
| Expected Lifetime | 100, 000 Hrs |
|
Servicing
|
Rear |
| IP Rating | IP 65 |
| Operating Temp/Humidity | -20℃-50℃ / 10%-90% |
| Storage Temp/Humidity | -20℃-50℃ / 10%-90% |
| Scan Method | 1/8 Scan |
