Kinglight Lamp IP65 P3.91 Outdoor Stage Led Display

Kinglight Lamp IP65 P3.91 Outdoor Stage Led Display
Kinglight Lamp IP65 P3.91 Outdoor Stage Led Display Kinglight Lamp IP65 P3.91 Outdoor Stage Led Display Kinglight Lamp IP65 P3.91 Outdoor Stage Led Display

Large Image :  Kinglight Lamp IP65 P3.91 Outdoor Stage Led Display

Product Details:

Place of Origin: China
Brand Name: Bakovision
Certification: CE ETL FCC CCC
Model Number: BOR-II Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Plywood case or flight case
Delivery Time: 15 days
Payment Terms: T/T, L/C, D/P
Supply Ability: 10,000 sqm/month
Detailed Product Description
Pixel Configuration: 3.91mm Pixel Density: 65,536 Pixels/㎡
Lamp: SMD1921 Viewing Angle: 160°/140°
Contrast Ratio: 4000:1 Brightness: >6000nits
Panel Dimensions: 500 X 500 X 80mm / 500 X 1000 X 80mm Weight: 8 / 13kg
High Light:

SMD1921 Led Stage Screen Rental

,

P3.91 Stage Background Led Display

Pixel Pitch 3.91mm Outdoor Waterproof Rental Stage LED Display With 500x500mm/500x1000mm Cabinet



Rental LED Screen Features and Advantages:



1 ) Ultra-thin and Super-light: only 8KG per cabinet of 500mm W*500mm H and 13KG per cabinet of 500mm W*1000mm H and depth is only 80mm, can stand on floor independently. Lightweight cabinet can be easy for labor working.

2) 500*1000mm cabinet can work with our 500*500mm die-casting aluminum cabinet so the height of LED screen can be both 1m and 0.5m

3) The appearance is very simple and elegant,looks very high end

4) With specially designed fast lock system, easy to install and dismantle

5) The new structure design enables diversified installation to meet the hanging-up and stacking requirements.

6) The tolerance is less than 0.2mm so the gap between adjacent cabinet can be made to minimum.Surface is very flat,viewing angle is very wide.

7) High refresh rate with NOVA control system.

8) Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost

9) 16 bit color, howing very clear and vivid video and images.

10) Good thermal design, excellent heat dissipation


Outdoor Rental Screen Specification:

Physical Pitch 3.91mm
Pixel Configuration SMD1921
Pixel Density 65,536 pixels/Square Meter
Module Dimensions(W x H) (mm) 250 x 250
Panel Dimensions (mm) 500 x 500 x 80 / 500 x 1000 x 80
Physical Resolution of Panel (W x H) 128 x 128 / 128 x 256
Panel Material Die-Casting Aluminum
Single Cabinet Weight 8 / 13 kg/panel
Processing 16bit
Colours 281 trillion
Contrast Ratio 4,000 : 1
Average Power Consumption 75 /150 W /panel
Max Power Consumption 225 /550 W /panel
Operating Temp/Humidity -20ºC - 60ºC / 10ºC - 60ºC
Storage Temp/Humidity -30ºC - 60ºC / 10ºC - 60ºC
Refresh Rate >1,920 Hz
Brightness ≥6,000nits
Expected Lifetime 100,000 Hrs
Max Stacking 20/10
Max Hanging 20/10
Servicing Front / Rear
IP Rating (Front/Rear) IP 65 / IP 54

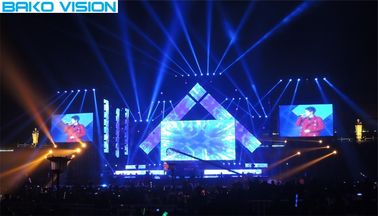

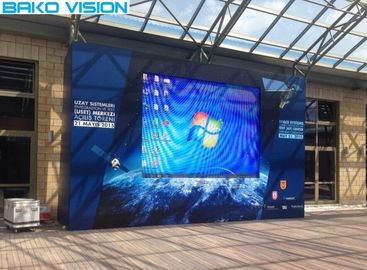

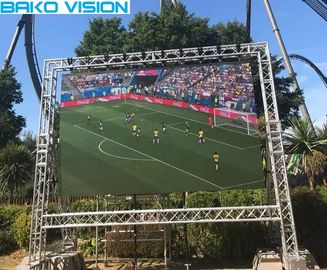

Led Display Case:

Kinglight Lamp IP65 P3.91 Outdoor Stage Led Display 0
Kinglight Lamp IP65 P3.91 Outdoor Stage Led Display 1

FAQ:



1. How can I place an order?
Please provide all the details of your requirements for our reference So we can send you the offer at the first time.Feel free to contact with me by What's APP/email /phone to avoid any delay.

2. What kind of display we provide?
We have indoor/outdoor/LED stage/Sport display/ Irregular LED display/monitor screen for you choose.

3. Are you manufacturer of led display.If yes, in which city?
Yes, We already have more than 14 years experience for LED display as a LED manufacturer located in Shenzhen

4. How long can I get the goods?
Our product leadtime is about 10-25 working days.When you confirm the order, we can start production at once receiving your deposit(30% TT in advance). we will update the production details in time.we will notice you when we can delivery the goods to you after we get full payment.

5.May I know the package details?
For fixed installation, we use wooden case, usually 2 or 4 cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.

6.What is the payment method?
We support the payment methods as TT , L/C , D/P.

7. What's the pixel pitch for Outdoor LED Display Screen?
Outdoor (P3.91mm/P4.81mm/P5.95mm/P6.25mm) led display screen

8.Can it play HD video?
Yes, it can realize HD video function with Linsn/nova controlling system

9.What's the controlling system?
Our standard controlling system for this model is Linsn/ Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
