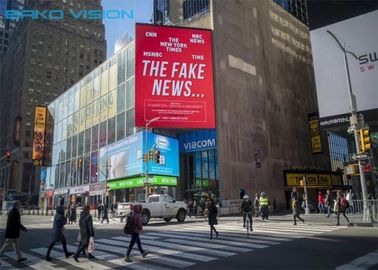

Outdoor Fixed LED Display P2.6 P3 P6 Slim Light Die-Casting Aluminum Cabinet Screen

Outdoor Fixed LED Display P2.6 P3 P6 Slim Light Die-Casting Aluminum Cabinet Screen
Outdoor Fixed LED Display P2.6 P3 P6 Slim Light Die-Casting Aluminum Cabinet Screen

Large Image :  Outdoor Fixed LED Display P2.6 P3 P6 Slim Light Die-Casting Aluminum Cabinet Screen

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: CCC, CE, EMC, FCC, RoHS
Model Number: BDF Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight case/Plywooden case
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30,000 sqm/month
Contact Now
Detailed Product Description
Pixel Pitch: 2.6mm, 3.2mm, 5.33mm, 6.4mm, 8mm, 10.66mm, 12.8mm, 16mm Cabinet Size: 1024*768*100mm
Panel Material: Die-casting Aluminum Cabinet Weight: 35kg/m2
IP Rate: IP65/IP54 Maintenance Way: Front/Rear
Brightness: 2,500nits - 5,500nits Expected Lifetime: 100,000 Hrs





Outdoor Fixed LED Display P2.6 P3 P6 Slim Light Die-Casting Aluminum Cabinet Screen



BDF Series (BDF Series.pdf)

Outdoor Commercial LED Screen



Specifications
Pixel Pitch: 2.6mm / 3.2mm / 5.33mm / 6.4mm / 8mm / 10.66mm / 12.8mm / 16mm
Cabinet Size: 1024*768*100mm
Refresh Rate: > 1920Hz
Key Point: One Chassis, Variable Pitch Options





Key Features

· Same Operation Way With the Regular LED Screen.

· Easy To Install And Maintenance.

· Very Durable, is Able to Support The SUV Car On it.

· Interactive And Non-interactive Design Accepted.

· High Brightness and Good Visual Display Performance.

Outdoor Fixed LED Display P2.6 P3 P6 Slim Light Die-Casting Aluminum Cabinet Screen 0



Commercial Scrolling LED Sign Basic Parameters



  BDF-2 BDF-3 BDF-5 BDF-6
Physical Pitch 2.6mm 3.2mm 5.33mm 6.4mm
Pixel Configuration SMD1617 SMD1617 SMD1921 SMD2727
Pixel Density 141,376 pixels/sqm 97,656 pixels/sqm 35,200 pixels/sqm 24,414 pixels/sqm
Module Dimension (W*H)(mm) 512*256
Panel Dimension(mm) 1024*768*100
Physical Resolution of Panel(W*H) 394*294 320*240 192*144 160*120
Panel Material Die-casting Aluminum
Single Cabinet Weight 35 kg
Processing 16 bit
Contrast Ratio 4000:1 4000:1 2000:1/4000:1 2000:1/4000:1
Average Power Consumption 240 W/panel
Max Power Consumption 600 W/panel
Refresh Rate >1,920Hz
Brightness >2,500nits >4,000nits >4,500nits >5,500nits
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Servicing Front/Rear
IP Rating (Front/Rear) IP65/IP54



  BDF-8 BDF-10 BDF-12 BDF-16
Physical Pitch 8mm 10.66mm 12.8mm 16mm
Pixel Configuration SMD2727 SMD3535 SMD2727 DIP346
Pixel Density 15,625  pixels/sqm 8,800   pixels/sqm 6,103    pixels/sqm 3,906    pixels/sqm
Module Dimension (W*H)(mm) 512*256
Panel Dimension(mm) 1024*768*100
Physical Resolution of Panel(W*H) 128*96 96*72 80*60 64*48
Panel Material Die-casting Aluminum
Single Cabinet Weight 35 kg
Processing 16 bit
Contrast Ratio 4000:1 4000:1 2000:1/4000:1 2000:1/4000:1
Average Power Consumption 350 W/panel
Max Power Consumption 700 W/panel
Refresh Rate >1,920Hz
Brightness >5,500nits
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Servicing Front/Rear
IP Rating (Front/Rear) IP65/IP54







5 Advantages of Large Digital LED Billboard



1. Fast Installation and Easy Maintenance



Outdoor Fixed LED Display P2.6 P3 P6 Slim Light Die-Casting Aluminum Cabinet Screen 1



2. Both Front and Rear Maintenance Available



Outdoor Fixed LED Display P2.6 P3 P6 Slim Light Die-Casting Aluminum Cabinet Screen 2



3. Lower Release Heat - lower noise, lower consumption and low cost.

3.Flat screen: smooth surface error is under 0.2cm, it can remove the mosaic phenomenon effectively. The effect of the display will be more clear and exquisite.
Outdoor Fixed LED Display P2.6 P3 P6 Slim Light Die-Casting Aluminum Cabinet Screen 3

4. Smooth Surface Error is Under 0.2cm - It can remove the mosaic phenomenon effectively. The effect of the display will be more clear and exquisite.


5. Versatile Dural Purpose Design - Cabinet can be reclined between 0-30 degree to ensure the best angle for audience and camera. Adding with fround adjustable bracket and protection foam bumper can be transformed to be perimeter display.

Outdoor Fixed LED Display P2.6 P3 P6 Slim Light Die-Casting Aluminum Cabinet Screen 4





Rigorous Production Standard

Outdoor Fixed LED Display P2.6 P3 P6 Slim Light Die-Casting Aluminum Cabinet Screen 5





Outdoor Permanent LED Display Case Study



Outdoor Fixed LED Display P2.6 P3 P6 Slim Light Die-Casting Aluminum Cabinet Screen 6



Outdoor Fixed LED Display P2.6 P3 P6 Slim Light Die-Casting Aluminum Cabinet Screen 7





About Bako Vision

Outdoor Fixed LED Display P2.6 P3 P6 Slim Light Die-Casting Aluminum Cabinet Screen 8



  • Over 10 Years Experience on LED Display Screen Manufacturing in China.
  • 3 Years High Quality Warranty Provided.
  • Global Quality Standard with CE, EMC, ROHS, ETL, UL, FCC, ISO9001 Certificated.
  • Overseas Customer in 120+ Countries in The World.
  • Full Capable to Provide the Tailor Work of OEM, ODM.
