Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | P6, P7.8, P10, P12 | Weight: | ＜10kg/m² |
|---|---|---|---|
| IP Rating: | IP43/IP54 | Maintenance Way: | Front |
| Foldable Angle: | 360° | Brightness: | 1,500-6,000 Nits |
| Refresh Rate: | 1920Hz / 3840Hz | Contrast Ratio: | 2000:1 / 4000:1 |
| Expected Lifetime: | 100,000Hrs | Warranty: | 3-5 Years |
| Highlight: | flexible led curtain display,foldable led screen |
||
Rental Foldable LED Screens Indoor Curtain LED Display 360° Creative Event Module Space Saving IP43 IP54
BF Series (BF.pdf)
Indoor Curtain LED Screen
| Specifications | |
| Pixel Pitch: | 6mm / 7.8mm / 10mm / 12mm |
| Foldable Angle: | 360° |
| Refresh Rate: | > 1920Hz |
| Key Point: | Space, transportation and storage saving |
Rental LED Curtain Key Features

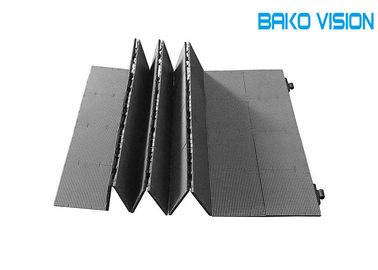

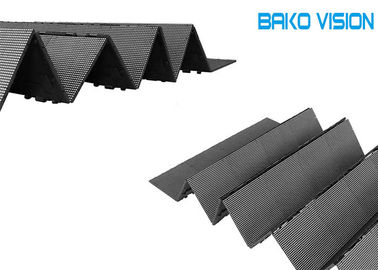

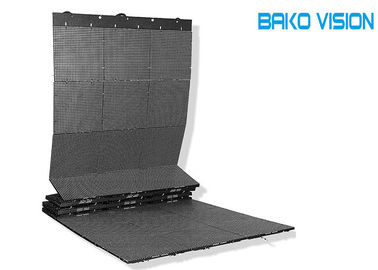

1. 180° or 360° Variable Foldable Module - Storage, transportation cost and space saving
2. Slim, Light Weight and Portable
3. Easy and Fast Installation - Easy connection design allows the fast set up and tear down, save 80% labor cost
Foldable Rental Module Basic Parameters
| BF-6 | BF-7 | BF-10 | BF-12 | |
| Physical Pitch | 6mm | 7.8mm | 10mm | 12mm |
| Pixel Configuration | SMD3528 | SMD3528 / SMD3535 | SMD3528 | SMD3528 |
| Pixel Density | 27,556 pixels/㎡ | 16,384 pixels/㎡ | 10,000 pixels/㎡ | 6,889 pixels/㎡ |
| United Size (mm) | 192 x 192 | 250 x 250 | 160 x 160 | 192 x 192 |
| Physical Resolution of Unit (W x H) | 32 x 32 | 32 x 32 | 16 x 16 | 32 x 32 |
| Weight (kg/㎡) | ＜10 | ＜9 | ＜9 | ＜9 |
| Processing | 16bit | |||
| Colours | 281 trillion | |||
| Contrast Ratio | 2,000:1 / 4,000 : 1 | |||
| Average Power Consumption | 150 / 310 W/㎡ | 90 / 200 W/㎡ | 110 W/㎡ | 75 W/㎡ |
| Max Power Consumption | 375 / 775 W/㎡ | 225 / 500 W/㎡ | 275 W/㎡ | 187 W/㎡ |
| Operating Temp/Humidity | -10℃ - 60℃ / 10℃ - 60℃ | |||
| Storage Temp/Humidity | -30℃ - 60℃ / 10℃ - 60℃ | |||
| Refresh Rate | ＞1,920 Hz | |||
| Brightness | 2000 / 4,000nits | 1500 / 6,000nits | 1500nits | 1500nits |
| Foldable Angle | 360° | |||
| Max Length of Control Box | 6m | 8m | 4m | 12m |
| Expected Lifetime | 100,000 Hrs | |||
| Servicing | Front | |||
| IP Rating (Front/Rear) | IP 43 / IP 54 | |||

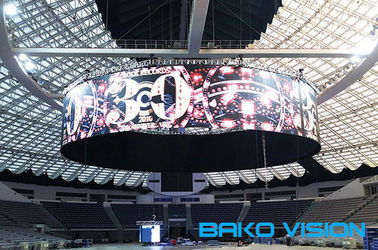

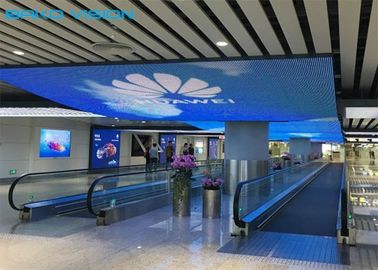

Indoor Rental LED Screen Case Study
About Bako Vision
FAQ:
Q1. What is the brightness ?
A1: The intensity of light emitted by the LED display unit per unit area is CD/square meter, which is simply the light intensity emitted by a square meter display.
Q2. What is the brightness ?
A2: The number of levels of manual or auto-adjustment of the brightness of the entire screen between the lowest and highest brightness.
Q3. What is grayscale ?
A3: Technical processing levels between the darkest and the brightest at the same brightness level.
Q4. What is the maximum brightness ?
A4: Under certain ambient illumination, the primary colors of the LED display are at the maximum brightness and maximum gray level.
Q5. What is moiré?
A5: When shooting a full-color LED display at work, some irregular water ripples appear on the LED display screen. These water ripples are called 'moiré' in physics.
Tags: Indoor Curtain LED Display, Indoor Rental Screen, Foldable module
