SMD2121 Indoor Fixed LED Display Video Wall P3 Front Access Magnetic Module

SMD2121 Indoor Fixed LED Display Video Wall P3 Front Access Magnetic Module
SMD2121 Indoor Fixed LED Display Video Wall P3 Front Access Magnetic Module

Large Image :  SMD2121 Indoor Fixed LED Display Video Wall P3 Front Access Magnetic Module

Product Details:

Place of Origin: China
Brand Name: Bakovision
Certification: CE ETL FCC RoHS ISO CCC
Model Number: BIF Series

Payment & Shipping Terms:

Minimum Order Quantity: 1㎡
Price: negotiable
Packaging Details: Wooden case or flight case
Delivery Time: 15-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000 sqm/month
Detailed Product Description
LEDs: SMD2121 Control System: Novastar
Servicing: Front Viewing Angle: 160°/140°
Refresh Rate: >1920Hz Contrast Ratio: 4000:1
High Light:

stage led video wall

,

led video wall display

P3 Front Access Magnetic Module Indoor Fixed LED Display Video Wall For Hall and Lecture


Fixed Led Video Wall Quick Details:
1, Pixel Pitch: 3mm.
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: Customized, weight: 30kg/m2.
5, Recommended minimum viewing distance: 4m.
6, Warranty: 2years.

Fixed Led Video Wall Description :
Bako Vision indoor LED Wall include permanent installation indoor electronic led display, the pixel various from 3mm, 4mm, 5mm, 6mm.You can use it as billboard or Led Wall in Concert hall or shop and so on.

Fixed Led Video Wall Features:

1, High brightness from 900nits to 1,200nits, visible from every direction indoor.
2, SMD LEDs ensure large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3, Cabinet design lightweight, Magnetic module is easy for maintanence and installation
4, Meanwell brand power supply, saving energy and high efficiency.
5, Digital process: 16bits, High contrast ratio 4000:1, vivid color.
6, You can choose front service or back service, it's easy for maintenance

7, Customized cabinet to fit different status, steel or aluminum cabinet can be suitable for different project.

Fixed Led Video Wall Specification:



Physical Pitch 3mm
Pixel Configuration SMD2121
Pixel Density 111,111 pixels/Sqm
Module Dimensions(W x H) (mm) 192 x 192
Panel Dimensions (mm) 960 x 960
NO. of Modules Per Panel (W x H) 5 x 5
Physical Resolution of Module (W x H) 64 x 64
Physical Resolution of Panel (W x H) 320 x 320
Panel Material Steel / Aluminum
Scan Method 1/32 Scan
Gray Scale 16bit
Colours 281 trillion
Contrast Ratio 4,000 : 1
Average Power Consumption 120 W /Sqm
Max Power Consumption 400 W /Sqm
Operating Temp/Humidity -10℃ - 60℃ / 10% - 60%
Storage Temp/Humidity -30℃ - 60℃ / 10% - 60%
Refresh Rate >1,920Hz
Brightness 900-1,200nits
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Expected Lifetime 100,000 Hrs
Servicing Front / Rear
IP Rating (Front/Rear) IP 21

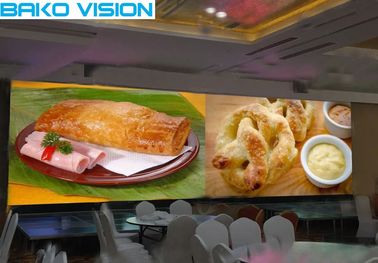

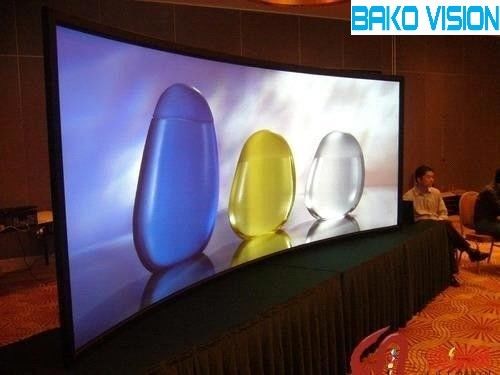

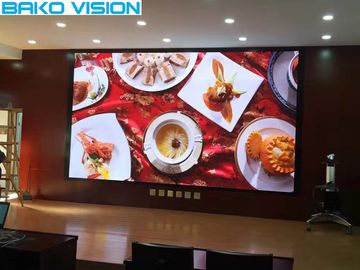

Fixed Led Video Wall Case:

SMD2121 Indoor Fixed LED Display Video Wall P3 Front Access Magnetic Module 0
SMD2121 Indoor Fixed LED Display Video Wall P3 Front Access Magnetic Module 1SMD2121 Indoor Fixed LED Display Video Wall P3 Front Access Magnetic Module 2SMD2121 Indoor Fixed LED Display Video Wall P3 Front Access Magnetic Module 3SMD2121 Indoor Fixed LED Display Video Wall P3 Front Access Magnetic Module 4SMD2121 Indoor Fixed LED Display Video Wall P3 Front Access Magnetic Module 5SMD2121 Indoor Fixed LED Display Video Wall P3 Front Access Magnetic Module 6SMD2121 Indoor Fixed LED Display Video Wall P3 Front Access Magnetic Module 7SMD2121 Indoor Fixed LED Display Video Wall P3 Front Access Magnetic Module 8SMD2121 Indoor Fixed LED Display Video Wall P3 Front Access Magnetic Module 9


Our service
Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!

Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.

Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
